X-Y Endstop

VoronDesign·Voron-Hardware·Hall_Effect_XY_Endstop/KiCad/HallEffectXY-Endstop.kicad_pcb

X-Y Endstop PCB layout, top view — open source board by VoronDesign

About the X-Y Endstop PCB

X-Y Endstop is an open source PCB design by VoronDesign, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 56 × 20 mm, with 25 components from 14 distinct parts.

Other key parts include the TMC2130-LA-T. By type, the board carries 8 capacitors, 7 resistors, 4 ICs, 3 diodes and 1 connector.

From the project

Cool Hardware designed by the Voron Design group

The Hall Effect board allows for contactless homing on the X and Y axis on a Voron 2 or Voron Trident. When hall sensor reaches close to magnet it produces a voltage. The circuit then compares that with a reference voltage. The comparator flips based on threshold set using the trim pots. Please follow following procedure to setup Hall Effect Board. 1) Make sure both the pots are centered. 2) Then take a magnet for x axis.Try both the poles. Find the pole of magnet that triggers sensor within 1 inch of magnet. 3) Install the X magnet into afterburner carriage. 4) Please repeat the same process…

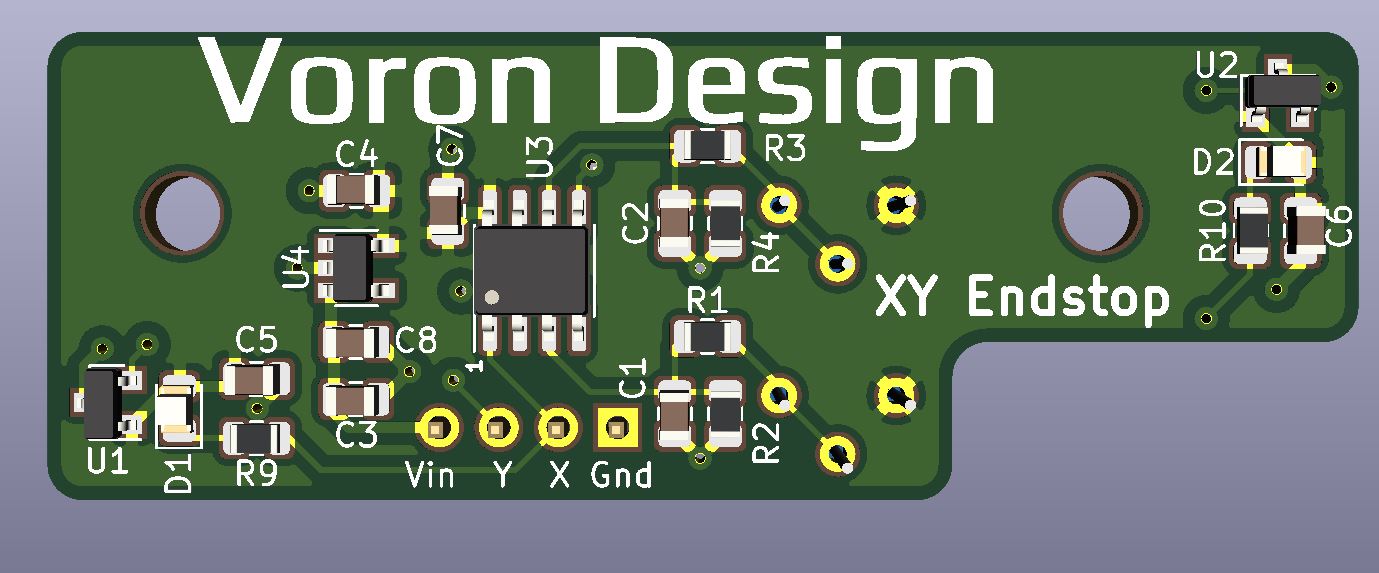

X-Y Endstop, from the project README
From the project README

Main components on the X-Y Endstop

TMC2130-LA-T

X-Y Endstop bill of materials (BOM)

25 components, 14 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
TMC2130-LA-T
SS49E
U1, U2
1
TMC2130-LA-T
LM393
U3
1
TMC2130-LA-T
AP2127K-3.3
U4
1
302-S101
CONN_01X04
J1
2
10.0K
VR1, VR2
3
150080SS75000
LED_0805
D1, D2, D3
2
CC0603KRX7R9BB104
0.1uF
C1, C2
5
CC0603KRX7R9BB104
1uF
C3, C4, C5, C6, C7
1
CC0603KRX7R9BB104
10uF
C8
3
RNCP0603FTD10K0
1.00K
R1, R9, R10
1
RNCP0603FTD10K0
10.0k
R2
1
RNCP0603FTD10R0
1.00K
R3
1
RNCP0603FTD10R0
10.0k
R4
1
RL1220S-R11-F
1.00K
R5

X-Y Endstop design files

The KiCad project lives in the VoronDesign/Voron-Hardware repository on GitHub; these links point at the commit this page was built from.

X-Y Endstop: common questions

How big is the X-Y Endstop PCB?

The X-Y Endstop measures 56 × 20 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the X-Y Endstop?

25 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the X-Y Endstop design files?

From the VoronDesign/Voron-Hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the X-Y Endstop design in my own project?

Yes, under the terms of its GPL-3.0 license, which VoronDesign chose for the repository.
