V0 Micro Display

VoronDesign·Voron-Hardware·V0_Micro_Display/Kicad/V0_Micro_Display.kicad_pcb

V0 Micro Display PCB layout, top view — open source STM32 board by VoronDesign

About the V0 Micro Display PCB

V0 Micro Display is an open source STM32 PCB design by VoronDesign, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 53.3 × 28 mm, with 16 components from 13 distinct parts.

Its main chip is the TMC2130-LA-T, from the STM32 family. By type, the board carries 4 ICs, 4 capacitors, 3 connectors, 2 switches, 2 resistors and 1 diode.

It belongs with the displays & leds designs in this gallery.

From the project

Cool Hardware designed by the Voron Design group

Tiny display designed for the VORON Design V0: - STM32F042F6P6 MCU with internal oscilator - 0.96" OLED screen - 4-Way switch with button (SKRHAAE010) - Kill and Reset buttons

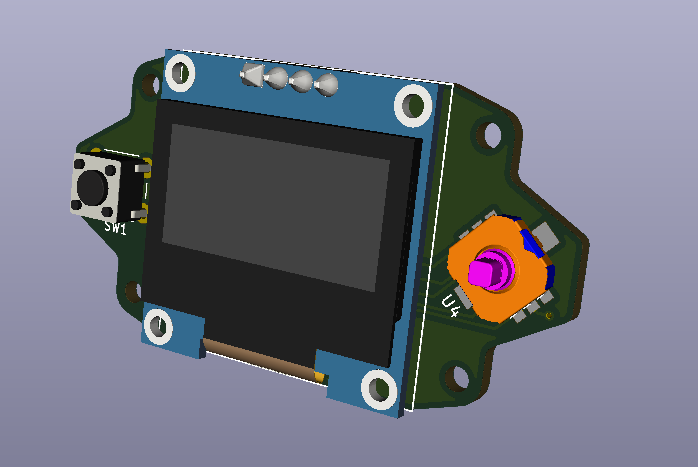

V0 Micro Display, from the project README
From the project README

Main components on the V0 Micro Display

TMC2130-LA-T

V0 Micro Display bill of materials (BOM)

16 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TMC2130-LA-T
AP2127K-3.3
U1
1
TMC2130-LA-T
STM32F042F6Px
U2
1
TMC2130-LA-T
74LVC1G17
U3
1
TMC2130-LA-T
Alps_4-Way_Joystick
U4
1
302-S101
I2C Header 1
J2
1
0022232041
Conn_01x02
J4
1
0022232041
USB_Header
J7
1
B3S-1000P
SW_SPST
SW1
1
SW_SPST
SW5
1
150080SS75000
WS2812B
D1
2
CC0603KRX7R9BB104
4.7uF
C1, C2
2
CC0603KRX7R9BB104
0.1uF
C3, C4
2
RNCP0603FTD10K0
10K
R1, R2

V0 Micro Display design files

The KiCad project lives in the VoronDesign/Voron-Hardware repository on GitHub; these links point at the commit this page was built from.

V0 Micro Display: common questions

What microcontroller does the V0 Micro Display use?

The V0 Micro Display is built around the TMC2130-LA-T, from the STM32 family.

How big is the V0 Micro Display PCB?

The V0 Micro Display measures 53.3 × 28 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the V0 Micro Display?

16 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the V0 Micro Display design files?

From the VoronDesign/Voron-Hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the V0 Micro Display design in my own project?

Yes, under the terms of its GPL-3.0 license, which VoronDesign chose for the repository.

Can I test firmware for the V0 Micro Display without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
