Teensy SFOC
wgbowley·OpenLSM·03_boards/03_teensy_SFOC/03_kicad/01_main/teensy_SFOC/teensy_SFOC.kicad_pcb
About the Teensy SFOC PCB
Teensy SFOC is an open source STM32 PCB design by wgbowley, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 80 mm, with 19 components from 14 distinct parts.
Its main chip is the STM32G431K8TX, from the STM32 family. Other key parts include the LD1117S33 and MAX3485. By type, the board carries 5 resistors, 4 capacitors, 3 ICs and 2 diodes.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Low-Cost Linear Synchronous Permanent-Magnet Motor

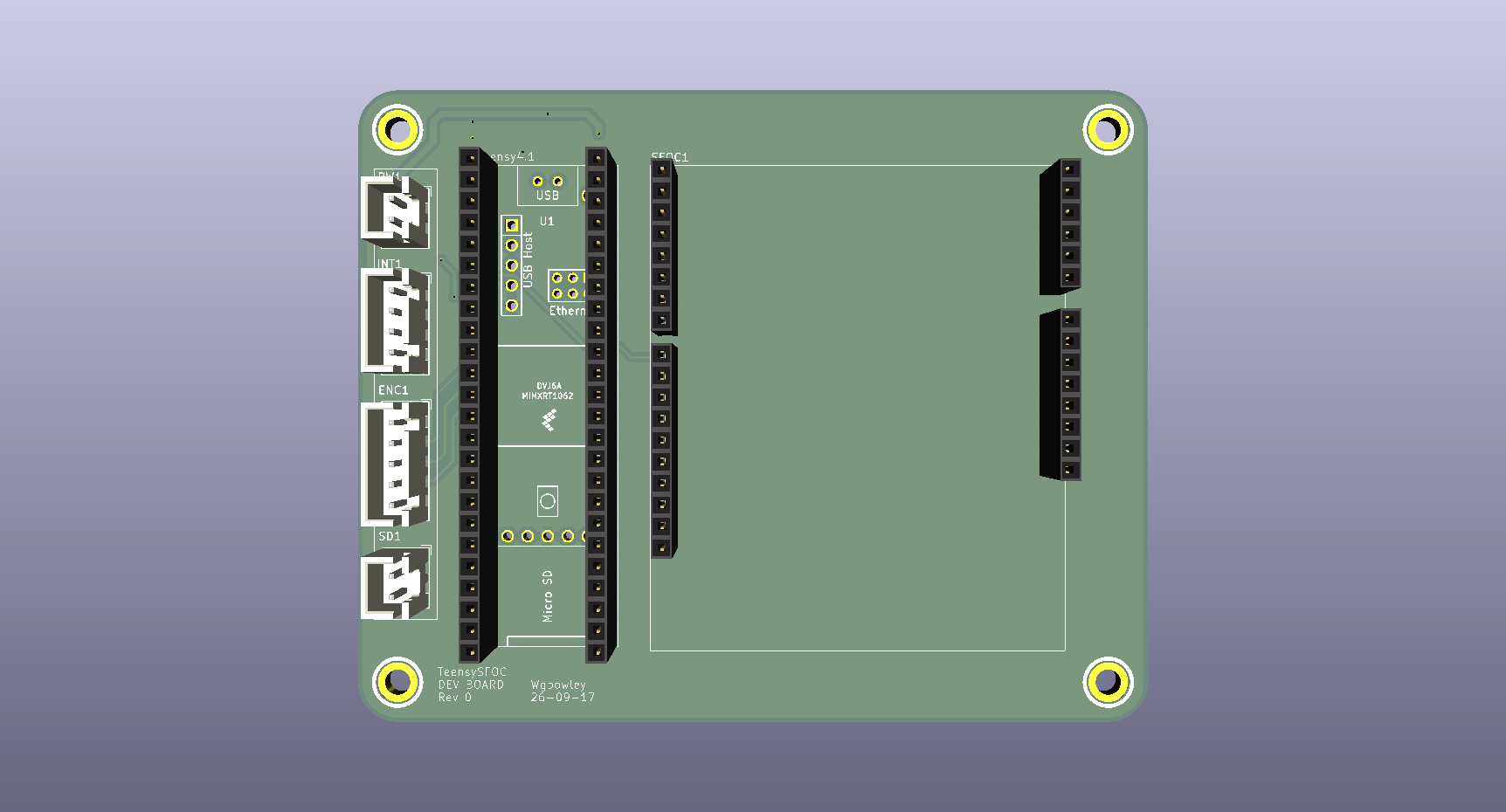

The Teensy SFOC board is a breakout board for the Teensy 4.1 and SimpleFOC Arduino shield, with RS-485/RS-422 support and a secondary encoder input if RS-485 to the armature board cannot be used. It also has a step/dir input for use with standard 3D printer main-boards.
Design notes and implementation decisions are documented in issue #42.

Main components on the Teensy SFOC
Teensy SFOC bill of materials (BOM)
19 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32G431K8TX Teensy4.1 | Teensy41 | U1 |
| 1 | LD1117S33 MAX3485 | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | MAX3485 LD1117V33 | SOT-223-3_TabPin2 | U3 |
| 1 | 01X05 01x05 | JST_XH_B5B-XH-A_1x05_P2.50mm_Vertical | ENC1 |
| 1 | 01X04 01x04 | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | INT1 |
| 2 | 01x02 | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | PW1, SD1 |
| 1 | SimpleFOC Sheild | Arduino_UNO_R3 | SFOC1 |
| 2 | 1N4148 | D_SOD-123 | D1, D2 |
| 2 | 1uf | C_1206_3216Metric | C1, C2 |
| 1 | 100NF 100nf | C_1206_3216Metric | C3 |
| 1 | 100nf | C_1206_3216Metric | C4 |
| 2 | 10 | R_1206_3216Metric | R1, R2 |
| 1 | 120 | R_1206_3216Metric | R3 |
| 2 | 1k | R_1206_3216Metric | R4, R5 |
Teensy SFOC design files
The KiCad project lives in the wgbowley/OpenLSM repository on GitHub; these links point at the commit this page was built from.
Teensy SFOC: common questions
What microcontroller does the Teensy SFOC use?
The Teensy SFOC is built around the STM32G431K8TX, from the STM32 family.
How big is the Teensy SFOC PCB?
The Teensy SFOC measures 100 × 80 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Teensy SFOC?
19 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Teensy SFOC design files?
From the wgbowley/OpenLSM repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Teensy SFOC design in my own project?
Yes, under the terms of its MIT license, which wgbowley chose for the repository.
Can I test firmware for the Teensy SFOC without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
