RPI5-CFE-Hat
About the RPI5-CFE-Hat
RPI5-CFE-Hat is an open source STM32 PCB design by will127534, published on GitHub under the MIT license. It is a 4-layer board measuring 65 × 56 mm, with 44 components from 27 distinct parts.
Its main chip is the CH32V003F4P6, from the STM32 family. Other key parts include the TPS564242DRLR, LP5907MFX-3.3 and TCA9406DC. By type, the board carries 13 capacitors, 9 connectors, 8 resistors, 4 ICs, 4 jumpers and 4 diodes.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

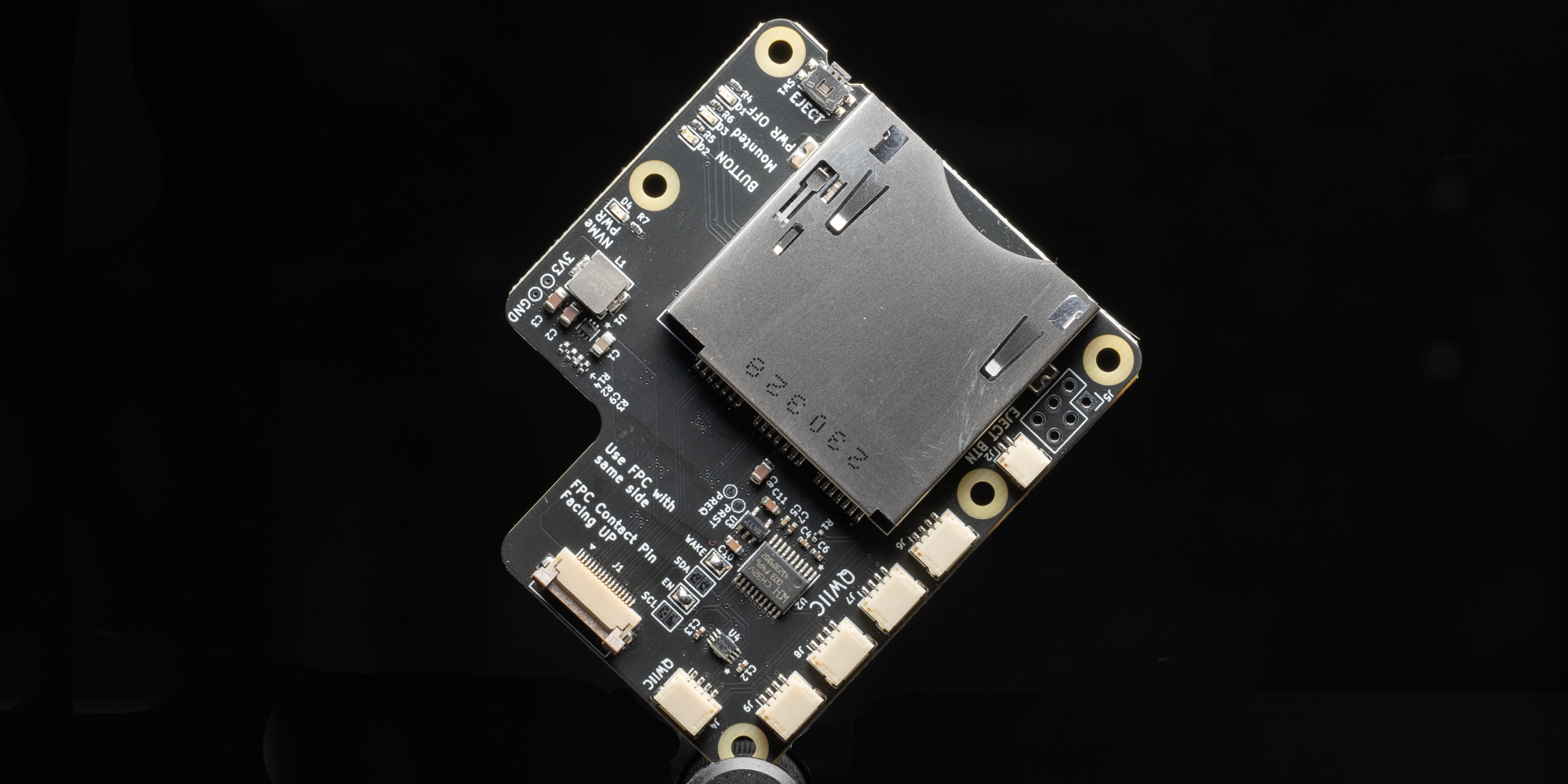

CFexpress Card hat for Raspberry Pi 5
Main components on the RPI5-CFE-Hat
RPI5-CFE-Hat bill of materials (BOM)
44 components, 27 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS564242DRLR | TPS564242DRLR_TEX | U1 |
| 1 | CH32V003F4P6 STM8S003F3P | TSSOP-20_4.4x6.5mm_P0.65mm | U2 |
| 1 | LP5907MFX-3.3 | SOT-23-5 | U3 |
| 1 | TCA9406DC | TCA9406DCUR | U4 |
| 1 | CONN_01X16_SHIELDED Conn_01x16_Shielded | Hirose_FH12-16S-0.5SH_1x16-1MP_P0.50mm_Horizontal | J1 |
| 1 | CONN_01X02_SHIELDED Conn_01x02_Shielded | JST_SH_SM02B-SRSS-TB_1x02-1MP_P1.00mm_Horizontal | J2 |
| 1 | 821101-1120030 | 8211011120030 | J3 |
| 5 | CONN_01X04_SHIELDED Conn_01x04_Shielded | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J4, J6, J7, J8, J9 |
| 1 | Conn_02x03_Odd_Even | PinSocket_2x03_P2.54mm_Vertical | J5 |
| 4 | SolderJumper_2_Open | SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm | JP1, JP2, JP3, JP4 |
| 1 | SW_Push | Panasonic_EVQPUM_EVQPUD | SW1 |
| 2 | Red | LED_0603_1608Metric | D1, D4 |
| 1 | Blue | LED_0603_1608Metric | D2 |
| 1 | Yellow | LED_0603_1608Metric | D3 |
| 1 | 1.5UH 1.5uH | L_Vishay_IHLP-2020 | L1 |
| 1 | 10UF 10uF | C_0805_2012Metric | C1 |
| 3 | 22UF 22uF | C_0805_2012Metric | C2, C3, C8 |
| 1 | 1NF 1nF | C_0402_1005Metric | C4 |
| 1 | 10NF 10nF | C_0402_1005Metric | C5 |
| 4 | 100NF 100nF | C_0402_1005Metric | C6, C7, C12, C13 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100PF 100pF | C_0402_1005Metric | C9 |
| 2 | 4.7UF 4.7uF | C_0603_1608Metric | C10, C11 |
| 1 | 4.7K | R_0402_1005Metric | R1 |
| 1 | 137K | R_0402_1005Metric | R2 |
| 1 | 30K | R_0402_1005Metric | R3 |
| 4 | 470R | R_0402_1005Metric | R4, R5, R6, R7 |
| 1 | 10K | R_0402_1005Metric | R14 |
RPI5-CFE-Hat design files
The KiCad project lives in the will127534/RPI5-CFE-Hat repository on GitHub; these links point at the commit this page was built from.
- LayoutRPI5-CFE-Hat.kicad_pcb
- SchematicRPI5-CFE-Hat.kicad_sch
- BOMbom/BOM_RPI5CFE.xlsx
RPI5-CFE-Hat: common questions
What microcontroller does the RPI5-CFE-Hat use?
The RPI5-CFE-Hat is built around the CH32V003F4P6, from the STM32 family.
How big is the RPI5-CFE-Hat?
The RPI5-CFE-Hat measures 65 × 56 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the RPI5-CFE-Hat?
44 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the RPI5-CFE-Hat design files?
From the will127534/RPI5-CFE-Hat repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the RPI5-CFE-Hat design in my own project?
Yes, under the terms of its MIT license, which will127534 chose for the repository.
Can I test firmware for the RPI5-CFE-Hat without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
