About the GB-DMG-Headphone PCB
GB-DMG-Headphone is an open source PCB design by wiretap-retro, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 38 × 16.8 mm, with 7 components from 4 distinct parts.
By type, the board carries 3 inductors, 2 connectors and 2 capacitors.
It belongs with the audio and retro computing designs in this gallery.
From the project

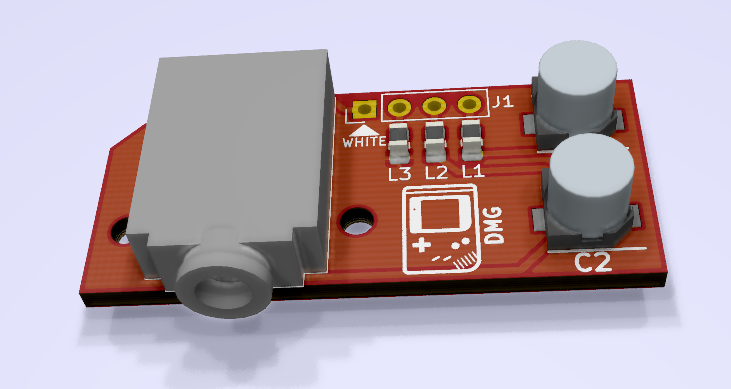

A replacement Gameboy DMG headphone jack PCB utilizing all newly manufactured parts -- yes, even the jack.

GB-DMG-Headphone bill of materials (BOM)
7 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 1 | SJ-3566AN CUI Inc | CUI_SJ-3566AN | J2 |
| 3 | LQM21PH3R3XGEL80 3.3uH Murata Electronics | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | L1, L2, L3 |
| 2 | 865080142007 100uF Wurth Elektronik | CAPAE530X550N | C1, C2 |
GB-DMG-Headphone design files
The KiCad project lives in the wiretap-retro/Gameboy-DMG-Headphone-Jack-PCB repository on GitHub; these links point at the commit this page was built from.
GB-DMG-Headphone: common questions
How big is the GB-DMG-Headphone PCB?
The GB-DMG-Headphone measures 38 × 16.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the GB-DMG-Headphone?
7 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the GB-DMG-Headphone design files?
From the wiretap-retro/Gameboy-DMG-Headphone-Jack-PCB repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the GB-DMG-Headphone design in my own project?
Yes, under the terms of its CC0-1.0 license, which wiretap-retro chose for the repository.
