Hard wookey jtag

wookey-project·hard-wookey-jtag

Hard wookey jtag PCB layout, top view — open source STM32 board by wookey-project

About the Hard wookey jtag PCB

Hard wookey jtag is an open source STM32 PCB design by wookey-project, published on GitHub under the CERN-OHL-1.2 license. It is a 4-layer board measuring 38.1 × 17.8 mm, with 29 components from 13 distinct parts.

Its main chip is the STM32F105RBTx, from the STM32 family. Other key parts include the LD1117S33TR and 74LVCH2T45DC. By type, the board carries 14 capacitors, 5 ICs, 4 connectors, 4 resistors, 1 switch and 1 diode.

It belongs with the usb & debug tools designs in this gallery.

From the project

WooKey Secure Mass Storage JTAG / SWD Flasher PCB

Wookey | https://wookey-project.github.io/ Copyright 2018 ANSSI

The Wookey from ANSSI is an open source hardware design, implementing an Encrypted Flash Drives.

This repository is aimed towards developers.

This directory contains the hardware design for the Wookey board, first public version (Wookey V2).

All PCB files (schematic and PCB layout) have been designed using the KiCad EDA. This Cross Platform and Open Source Electronics Design Automation Suite can be downloaded on http://kicad-pcb.org/.

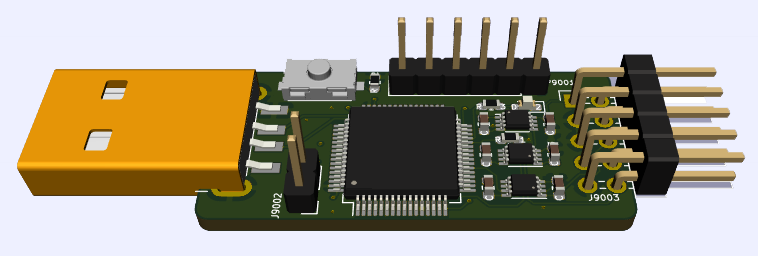

Hard wookey jtag, from the project README
From the project README

Main components on the Hard wookey jtag

LD1117S33TRSTM32F105RBTx74LVCH2T45DC

Hard wookey jtag bill of materials (BOM)

29 components, 13 distinct parts.

QtyPartRefs
1
LD1117S33TR
U9001
1
STM32F105RBTx
U9002
3
74LVCH2T45DC
U9003, U9004, U9005
1
USB
J9001
1
Conn_01x03
J9002
1
JTAG
J9003
1
DEBUG/PROG
P9001
1
DFU
SW9001
1
LED BLUE
D9002
2
10uF
C9001, C9003
12
100nF
C9002, C9004, C9005, C9006, C9007, C9008, C9009, C9010 +4
3
10K
R9001, R9002, R9004
1
470
R9003

Hard wookey jtag design files

The KiCad project lives in the wookey-project/hard-wookey-jtag repository on GitHub; these links point at the commit this page was built from.

Hard wookey jtag: common questions

What microcontroller does the Hard wookey jtag use?

The Hard wookey jtag is built around the STM32F105RBTx, from the STM32 family.

How big is the Hard wookey jtag PCB?

The Hard wookey jtag measures 38.1 × 17.8 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Hard wookey jtag?

29 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the Hard wookey jtag design files?

From the wookey-project/hard-wookey-jtag repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Hard wookey jtag design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which wookey-project chose for the repository.

Can I test firmware for the Hard wookey jtag without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
