Hard wookey motherboard PCB layout, top view — open source STM32 board by wookey-project

About the Hard wookey motherboard PCB

Hard wookey motherboard is an open source STM32 PCB design by wookey-project, published on GitHub under the CERN-OHL-1.2 license. It is a 4-layer board measuring 43 × 66 mm, with 68 components from 28 distinct parts.

Its main chip is the STM32F439VIT6, from the STM32 family. Other key parts include the LD1117S33TR, USBLC6-2, MICROSDCARD and USB3300. By type, the board carries 31 capacitors, 17 resistors, 7 connectors, 6 ICs, 4 diodes and 2 switches.

From the project

WooKey Secure Mass Storage Mainboard PCB

Wookey | https://wookey-project.github.io/ Copyright 2018 ANSSI

The Wookey from ANSSI is an open source hardware design, implementing an Encrypted Flash Drives.

This repository is aimed towards developers.

This directory contains the hardware design for the Wookey board, first public version (Wookey V2).

All PCB files (schematic and PCB layout) have been designed using the KiCad EDA. This Cross Platform and Open Source Electronics Design Automation Suite can be downloaded on http://kicad-pcb.org/.

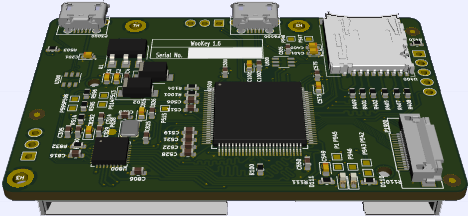

Hard wookey motherboard, from the project README
From the project README

Main components on the Hard wookey motherboard

LD1117S33TRUSBLC6-2MICROSDCARDSTM32F439VIT6USB3300

Hard wookey motherboard bill of materials (BOM)

68 components, 28 distinct parts.

QtyPartRefs
1
LD1117S33TR
U1
2
USBLC6-2
U300, U600
1
MICROSDCARD
U400
1
STM32F439VIT6
U500
1
USB3300
U800
1
ASEMB-24.000MHZ-LY-T
Y2
1
UART4
P523
1
DEBUG/PROG
P572
1
UART1
P592
1
ISO7816_NO
P1000
1
CONN_FPC16
P1900
2
USB_FS_OTG
P3000, P6000
1
DFU
SW503
1
RESET
SW514
2
STPS1L30A
D1, D2
1
LED BLUE
D110
1
LED GREEN
D111
3
10uF
C2, C6, C1001
20
100nF
C4, C305, C500, C506, C511, C514, C519, C521 +12
3
4.7uF
C201, C815, C8292
Show 8 more
QtyPartRefs
1
10uF 10V
C400
1
0.1uF 6,3V
C401
2
2.2uF
C549, C573
1
0.01uF
C828
4
10K
R100, R503, R514, R1001
3
470
R104, R110, R111
9
47K
R401, R402, R405, R407, R408, R409, R410, R595 +1
1
12K [1%]
R832

Hard wookey motherboard design files

The KiCad project lives in the wookey-project/hard-wookey-motherboard repository on GitHub; these links point at the commit this page was built from.

Hard wookey motherboard: common questions

What microcontroller does the Hard wookey motherboard use?

The Hard wookey motherboard is built around the STM32F439VIT6, from the STM32 family.

How big is the Hard wookey motherboard PCB?

The Hard wookey motherboard measures 43 × 66 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Hard wookey motherboard?

68 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the Hard wookey motherboard design files?

From the wookey-project/hard-wookey-motherboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Hard wookey motherboard design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which wookey-project chose for the repository.

Can I test firmware for the Hard wookey motherboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
