About the PiBook PCB

PiBook is an open source AVR/Arduino PCB design by Wren6991, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 85 × 85 mm, with 83 components from 44 distinct parts.

Its main chip is the ATTINY48-A, from the AVR/Arduino family. Other key parts include the FAN5333, BQ21040, NCP1532 and MIC2619YD6. By type, the board carries 29 resistors, 21 capacitors, 9 connectors, 5 ICs, 4 transistors and 4 diodes.

From the project

RPi Compute Module-based tiny laptop

Mini Raspberry Pi Compute Module-based laptop.

Unless stated otherwise (e.g. the contents of datasheets/) the contents of this repository is distributed under the revised BSD licence; see LICENSE.txt.

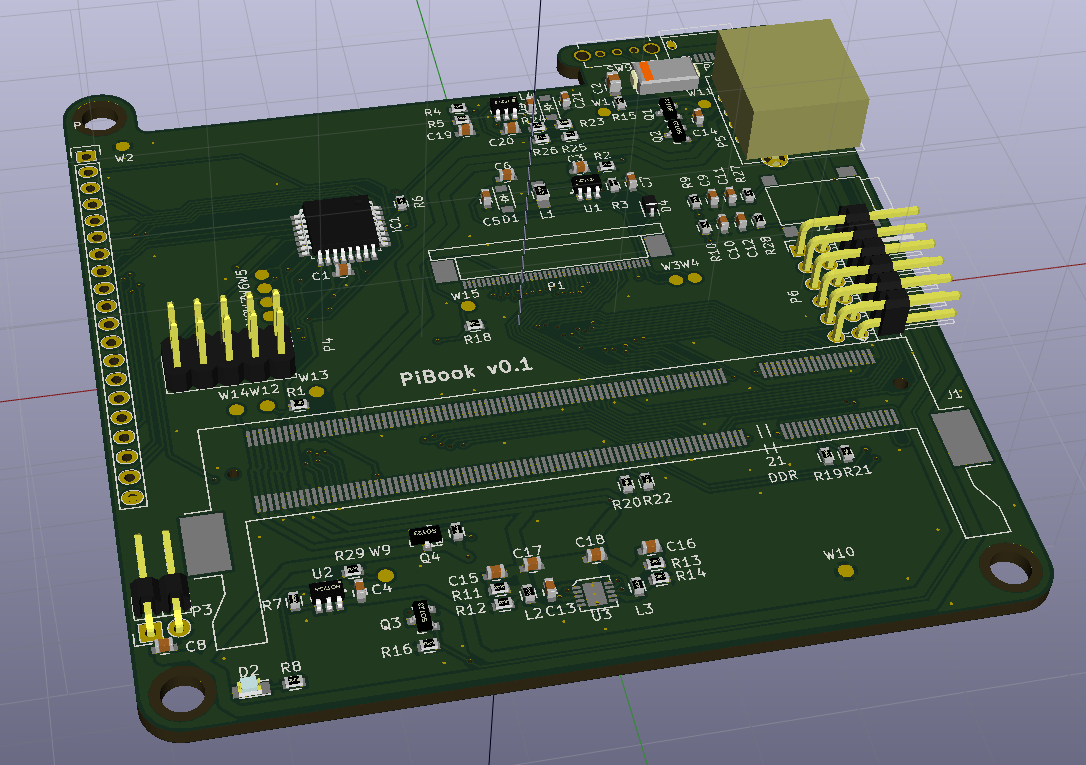

PiBook, from the project README
From the project README

Main components on the PiBook

ATTINY48-AFAN5333BQ21040NCP1532MIC2619YD6

PiBook bill of materials (BOM)

83 components, 44 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATTINY48-A
IC1
1
FAN5333
U1
1
BQ21040
U2
1
NCP1532
U3
1
MIC2619YD6
U4
3
SI2323DS
Si2323DS
Q1, Q2, Q4
1
BSS138P
Q3
1
ComputeModule
J1
1
TRS_JACK_3PIN
J2
1
CONN_01X40
P1
1
USB_OTG
P2
1
CONN_01X02
P3
1
CONN_02X05
P4
1
USB_A
P5
1
CONN_02X06
P6
1
CONN_01X20
P7
1
2A
F1
4
Mounting_Hole
MH1, MH2, MH3, MH4
1
SPST
SW91
1
Tie_point
TP1
Show 24 more
QtyPartRefs
2
MBR0540T3G
D1, D3
1
LED
D2
1
MM32Z24VT1G
D4
1
6.8U
6.8u
L1
2
2.2U
2.2u
L2, L3
1
10U
10u
L4
10
1u
C1, C4, C5, C6, C7, C8, C11, C12 +2
1
22U
22u
C2
1
4.7U
4.7u
C3
2
82N
82n
C9, C10
4
10U
10u
C13, C14, C17, C18
2
18P
18p
C15, C16
1
100N
100n
C19
16
100K
100k
R1, R2, R4, R5, R6, R12, R14, R16 +8
1
12
R3
1
680
R7
1
R
R8
2
100
R9, R10
1
450K
450k
R11
1
200K
200k
R13
1
0
R15
1
47K
47k
R23
3
10K
10k
R24, R26, R29
1
40K
40k
R25

PiBook design files

The KiCad project lives in the Wren6991/PiBook repository on GitHub; these links point at the commit this page was built from.

PiBook: common questions

What microcontroller does the PiBook use?

The PiBook is built around the ATTINY48-A, from the AVR/Arduino family.

How big is the PiBook PCB?

The PiBook measures 85 × 85 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PiBook?

83 components, from 44 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PiBook design files?

From the Wren6991/PiBook repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the PiBook design in my own project?

Yes, under the terms of its BSD-3-Clause license, which Wren6991 chose for the repository.

Can I test firmware for the PiBook without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
