MC60

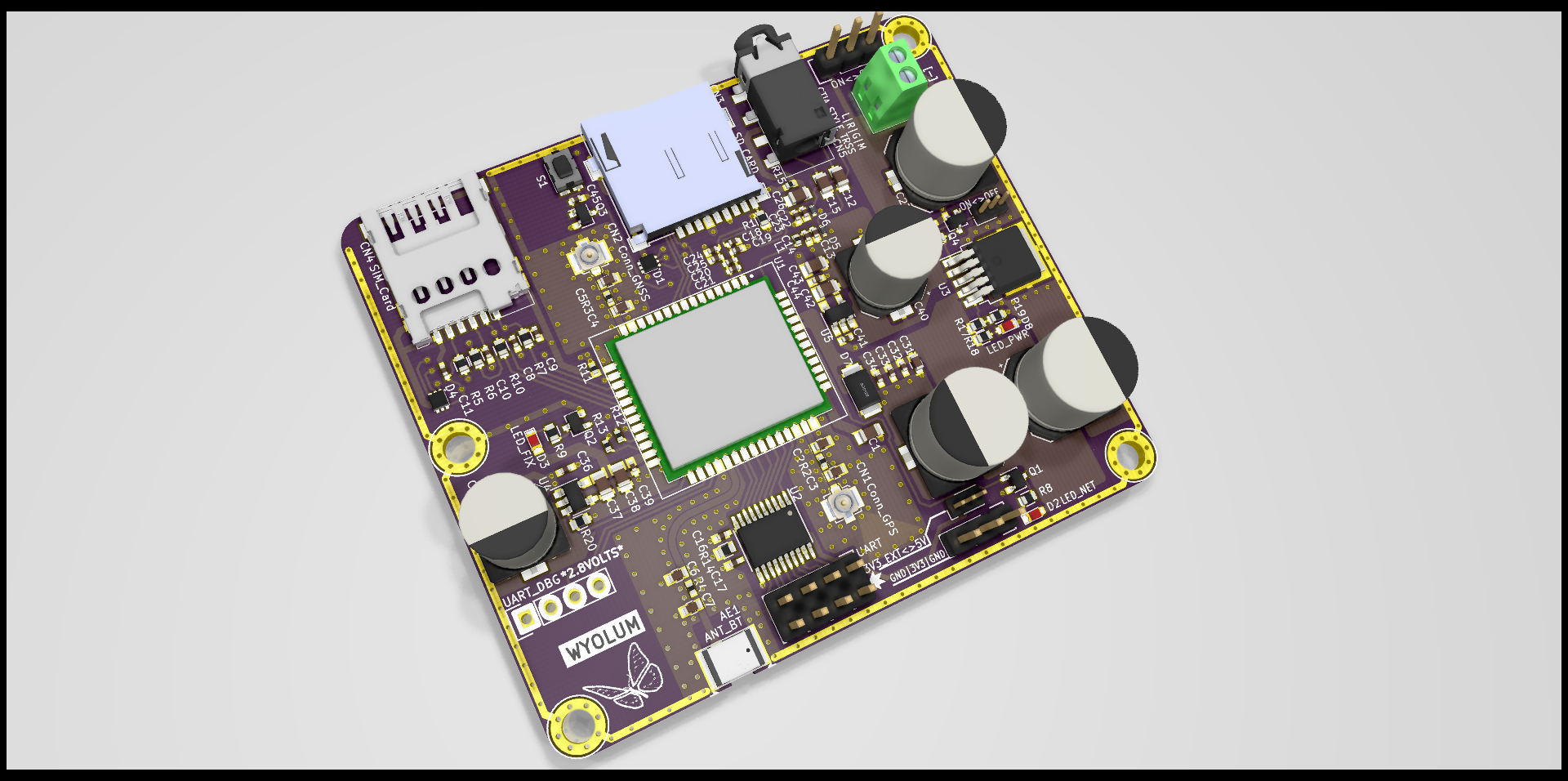

About the MC60 PCB
MC60 is an open source PCB design by wyolum, published on GitHub. It is a 2-layer board measuring 60 × 70 mm, with 97 components from 47 distinct parts.
Other key parts include the MC60_0, TXB0108PWR, MIC29302, LP5907-3V3 and LP5907-2V8. By type, the board carries 45 capacitors, 20 resistors, 8 diodes, 6 connectors, 5 ICs and 4 transistors.
It belongs with the rf & radio designs in this gallery.
From the project
break out board for Quectel MC60 Ultra-small LCC Quad-band GSM/GPRS/GNSS Module
[CERN Open Hardware Licence v1.2 ]:http://www.ohwr.org/attachments/2388/cernohlv12.txt
Main components on the MC60
MC60 bill of materials (BOM)
97 components, 47 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MC60_0 | XCVR_MC60 | U1 |
| 1 | TXB0108PWR | TSSOP-20_4.4x6.5mm_Pitch0.65mm | U2 |
| 1 | MIC29302 | TO-252-5_TabPin3 | U3 |
| 1 | LP5907-3V3 | SOT-23-5 | U4 |
| 1 | LP5907-2V8 | SOT-23-5 | U5 |
| 3 | DTC114E | SOT-323_SC-70 | Q1, Q2, Q3 |
| 1 | DTC143ZUA | SOT-323_SC-70 | Q4 |
| 1 | Conn_GPS | Molex_Microcoaxial_RF | CN1 |
| 1 | Conn_GNSS | Molex_Microcoaxial_RF | CN2 |
| 1 | SD_CARD | microsd-9-suntech-ST-TF-003A | CN3 |
| 1 | SIM_Card | conn_microSIM_320100004 | CN4 |
| 1 | Audio-Jack-4 | AUDIO8P-SMD-3.5-14.5X6X5MM | CN5 |
| 1 | 5V_IN | conn_screw_2.54mm_2pol | CN6 |
| 1 | ANT_BT | ant_bt_inpaq5036 | AE1 |
| 1 | UART_DBG | Pin_Header_Straight_1x04 | H1 |
| 1 | UART | Pin_Header_Straight_2x04 | H2 |
| 1 | 3V3_EXT | Pin_Header_Straight_1x03 | H3 |
| 1 | ON<>OFF | Pin_Header_Straight_1x03 | H4 |
| 1 | 3V3_EXT<>5V | Pin_Header_Straight_1x03_Pitch1.27mm | JP1 |
| 1 | GSM_PWR_EN | Pin_Header_Straight_1x03_Pitch1.27mm | JP2 |
Show 27 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SW-ON | SW_SPST_WS_TASV | S1 |
| 2 | RClamp0854P.TCT | SLP1616P6 | D1, D4 |
| 1 | LED_NET | LED_0603 | D2 |
| 1 | LED_FIX | LED_0603 | D3 |
| 2 | ESD9B5.0ST5G | D_SOD-923 | D5, D6 |
| 1 | PDZVTR5.1B | D_SOD-128 | D7 |
| 1 | LED_PWR | LED_0603 | D8 |
| 1 | 0E | R_0402_NoSilk | L1 |
| 3 | 4u7 | C_0805 | C1, C37, C42 |
| 6 | 10pF_DNP | C_0603 | C2, C3, C4, C5, C6, C7 |
| 11 | 33pF | C_0402_NoSilk | C8, C9, C10, C11, C13, C18, C20, C22 +3 |
| 5 | 10uF | C_0805 | C12, C15, C26, C38, C43 |
| 6 | 10pF | C_0402_NoSilk | C14, C19, C21, C23, C25, C34 |
| 8 | 100nF | C_0402_NoSilk | C16, C17, C28, C32, C36, C39, C41, C44 |
| 3 | 470uF | CP_Elec_10x10 | C27, C29, C30 |
| 1 | 1uF | C_0603 | C31 |
| 2 | 100uF | CP_Elec_8x10.5 | C35, C40 |
| 2 | 100k | R_0603 | R1, R5 |
| 7 | 0E | R_0402_NoSilk | R2, R3, R4, R11, R12, R13, R15 |
| 3 | 22E | R_0603 | R6, R7, R10 |
| 2 | 390E | R_0603 | R8, R18 |
| 1 | 270E | R_0603 | R9 |
| 1 | 10k | R_0603 | R14 |
| 1 | 51k | R_0603 | R16 |
| 1 | 124k | R_0603 | R17 |
| 1 | 56k | R_0603 | R19 |
| 1 | 47k | R_0603 | R20 |
MC60 design files
The KiCad project lives in the wyolum/MC60 repository on GitHub; these links point at the commit this page was built from.
MC60: common questions
How big is the MC60 PCB?
The MC60 measures 60 × 70 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MC60?
97 components, from 47 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MC60 design files?
From the wyolum/MC60 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the MC60 design in my own project?
The repository has no license, so all rights stay with wyolum. Use it as a reference, and ask the author before reusing the design.
