Veiculo uno

xtarke·automated_buggy·arduino/shield/veiculo_uno.kicad_pcb

Veiculo uno PCB layout, top view — open source AVR/Arduino board by xtarke

About the Veiculo uno PCB

Veiculo uno is an open source AVR/Arduino PCB design by xtarke, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 68.6 × 54.6 mm, with 40 components from 14 distinct parts.

Its main chip is the Arduino_1pin, from the AVR/Arduino family. By type, the board carries 29 connectors, 5 resistors, 2 transistors, 2 diodes and 2 capacitors.

From the project

This shield connects Arduino Uno pins to the car's power board. Go to Power Board for more hardware information.

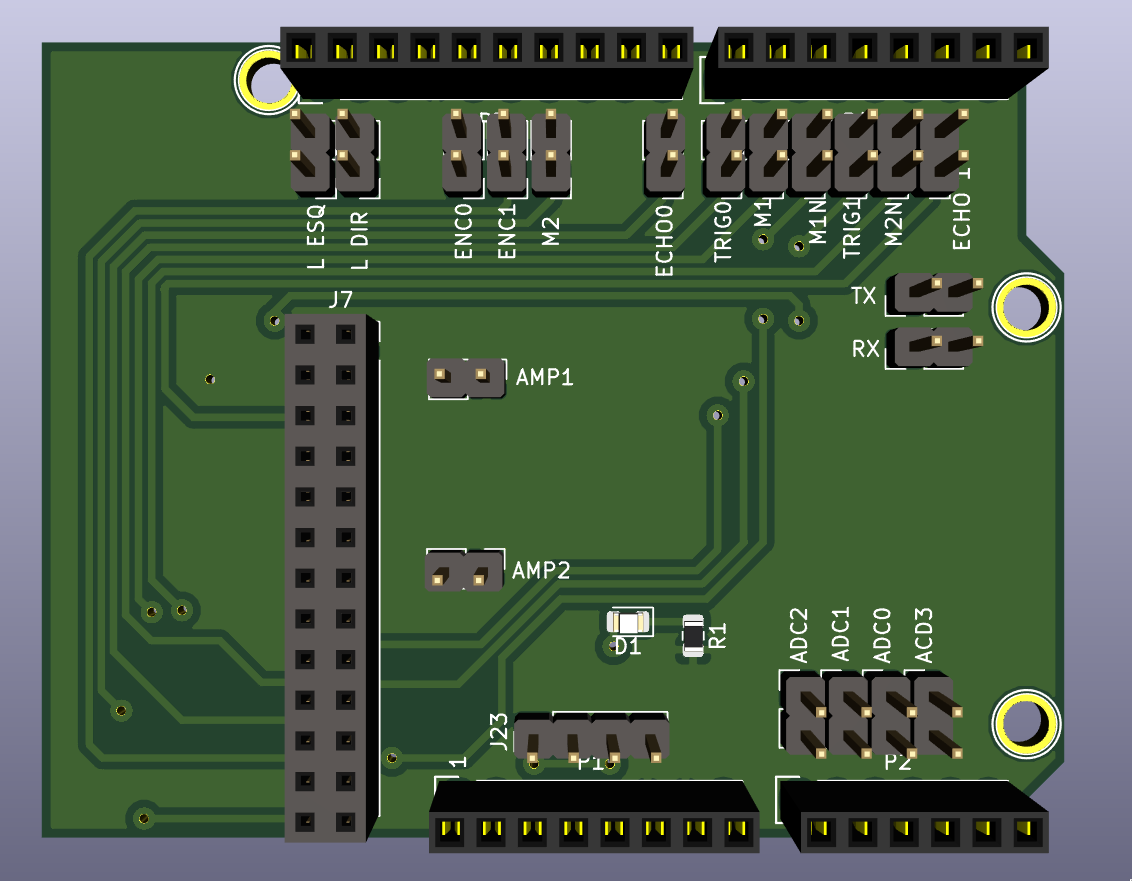

Veiculo uno, from the project README
From the project README

Veiculo uno bill of materials (BOM)

40 components, 14 distinct parts.

QtyPartRefs
2
2N7002
Q1, Q2
20
Conn_01x02_Male
J1, J2, J3, J4, J5, J6, J8, J9 +12
1
Conn_02x13_Odd_Even
J7
1
Conn_01x04_Male
J23
1
Power
P1
1
Analog
P2
1
Digital
P3
1
Digital
P4
3
CONN_01X01
P6, P7, P8
1
LED
D1
1
D_Schottky
D2
2
100n
C1, C2
1
R
R1
4
2k2
R2, R3, R4, R5

Veiculo uno design files

The KiCad project lives in the xtarke/automated_buggy repository on GitHub; these links point at the commit this page was built from.

Veiculo uno: common questions

What microcontroller does the Veiculo uno use?

The Veiculo uno is built around the Arduino_1pin, from the AVR/Arduino family.

How big is the Veiculo uno PCB?

The Veiculo uno measures 68.6 × 54.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Veiculo uno?

40 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the Veiculo uno design files?

From the xtarke/automated_buggy repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Veiculo uno design in my own project?

Yes, under the terms of its GPL-3.0 license, which xtarke chose for the repository.
