Shield exp430fr2355 layout, top view — open source board by xtarke

About the Shield exp430fr2355

Shield exp430fr2355 is an open source PCB design by xtarke, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 78.4 × 51.2 mm, with 47 components from 14 distinct parts.

Other key parts include the NCP1117-3.3_SOT223. By type, the board carries 25 connectors, 11 resistors, 8 diodes, 2 capacitors and 1 IC.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

This shield connects microcontroller (MSP-EXP430FR2355) pins to the car's power board. Go to Power Board for more hardware information.

This shield connects microcontroller (MSP-EXP430FR2355) pins to the car's power board. Go to Power Board for more hardware information.

Power board. Connection with 26 pin flat cable

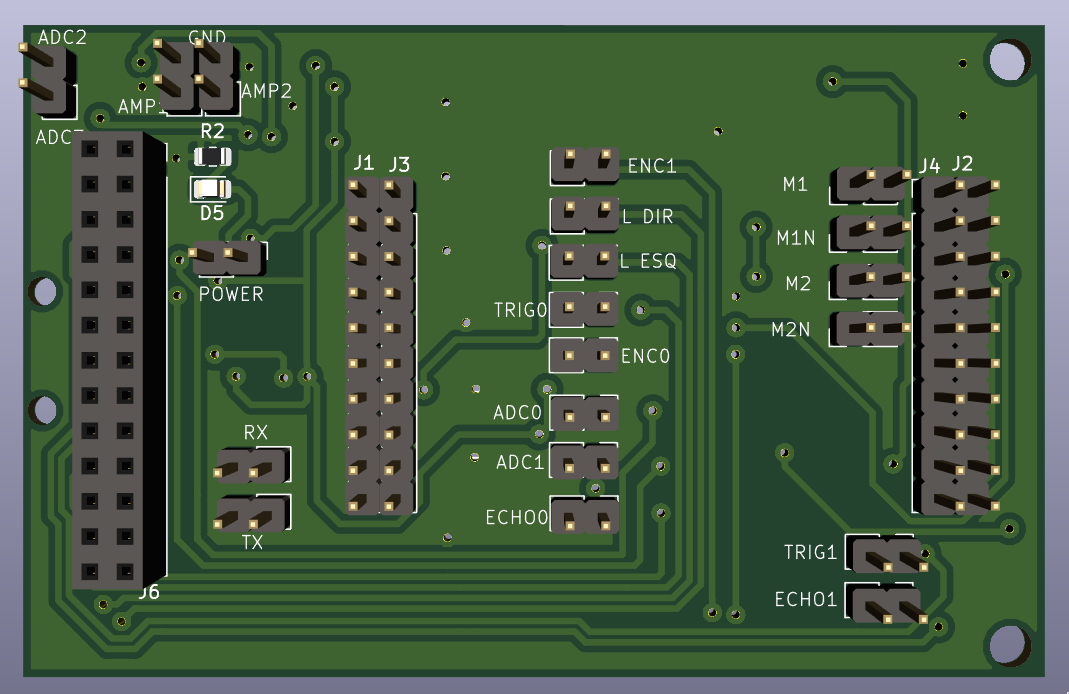

Shield exp430fr2355, from the project README — From the project README

Main components on the Shield exp430fr2355

NCP1117-3.3_SOT223

Shield exp430fr2355 bill of materials (BOM)

47 components, 14 distinct parts.

Qty	Part	Footprint	Refs
1	NCP1117-3.3_SOT223	SOT-223-3_TabPin2	U1
1	TI_BOOSTER_40_J1	PinHeader_1x10_P2.54mm_Vertical	J1
1	TI_BOOSTER_40_J2	PinHeader_1x10_P2.54mm_Vertical	J2
1	TI_BOOSTER_40_J3	PinHeader_1x10_P2.54mm_Vertical	J3
1	TI_BOOSTER_40_J4	PinHeader_1x10_P2.54mm_Vertical	J4
1	Conn_02x13_Odd_Even	IDC-Header_2x13_P2.54mm_Vertical	J6
20	Conn_01x02_Male	PinHeader_1x02_P2.54mm_Vertical	J7, J8, J9, J10, J12, J13, J14, J15 +12
6	BAT54S	SOT-23	D1, D2, D3, D4, D6, D7
1	LED	LED_0805_2012Metric	D5
1	D_Schottky	D_SMB	D8
2	100n	C_0805_2012Metric_Pad1.15x1.40mm_HandSolder	C1, C2
4	10k	R_0805_2012Metric	R1, R4, R6, R7
1	820R	R_0805_2012Metric	R2
6	15k	R_0805_2012Metric	R3, R5, R8, R9, R10, R11

Shield exp430fr2355 design files

The KiCad project lives in the xtarke/automated_buggy repository on GitHub; these links point at the commit this page was built from.

Shield exp430fr2355: common questions

How big is the Shield exp430fr2355?

The Shield exp430fr2355 measures 78.4 × 51.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Shield exp430fr2355?

47 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the Shield exp430fr2355 design files?

From the xtarke/automated_buggy repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Shield exp430fr2355 design in my own project?

Yes, under the terms of its GPL-3.0 license, which xtarke chose for the repository.
