Shield exp430g2 layout, top view — open source board by xtarke

About the Shield exp430g2

Shield exp430g2 is an open source PCB design by xtarke, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 58.7 × 53 mm, with 46 components from 12 distinct parts.

Other key parts include the NCP1117-3.3_SOT223. By type, the board carries 24 connectors, 11 resistors, 8 diodes, 2 capacitors and 1 IC.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

This shield connects all microcontroller (MSP-EXP430G2 - MSP430G2553) pins to the car's power board. Go to Power Board for more hardware information.

This shield connects all microcontroller (MSP-EXP430G2 - MSP430G2553) pins to the car's power board. Go to Power Board for more hardware information.

Caution, P2.1 and P2.2 are connected to the same timer comparator as well as P2.4 and P2.5.

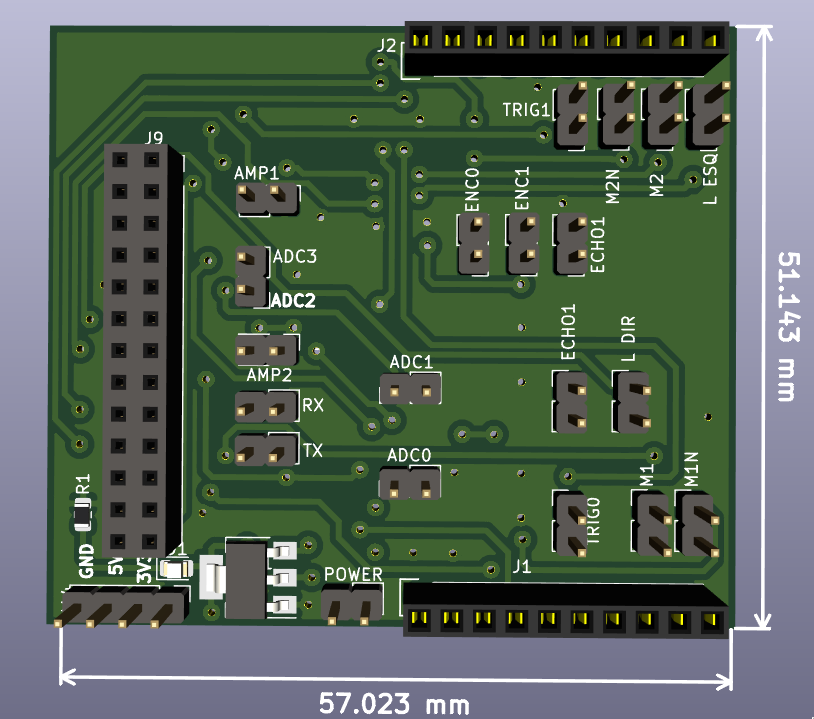

EXP430G2 with MSP430G2553 Shield and EXP430G2 Power board. Connection with 26 pin flat cable

Shield exp430g2, from the project README
From the project README

Main components on the Shield exp430g2

NCP1117-3.3_SOT223

Shield exp430g2 bill of materials (BOM)

46 components, 12 distinct parts.

QtyPartRefs
1
NCP1117-3.3_SOT223
U1
2
Digital
J1, J2
20
Conn_01x02_Male
J3, J4, J5, J6, J7, J8, J10, J11 +12
1
Conn_02x13_Odd_Even
J9
1
Conn_01x04_Male
J14
1
LED
D1
6
BAT54S
D2, D3, D4, D5, D6, D7
1
D_Schottky
D8
2
100n
C1, C2
1
R
R1
4
10k
R2, R4, R6, R7
6
15k
R3, R5, R8, R9, R10, R11

Shield exp430g2 design files

The KiCad project lives in the xtarke/automated_buggy repository on GitHub; these links point at the commit this page was built from.

Shield exp430g2: common questions

How big is the Shield exp430g2?

The Shield exp430g2 measures 58.7 × 53 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Shield exp430g2?

46 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Shield exp430g2 design files?

From the xtarke/automated_buggy repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Shield exp430g2 design in my own project?

Yes, under the terms of its GPL-3.0 license, which xtarke chose for the repository.
