About the AES50 PCB
AES50 is an open source PCB design by YetAnotherElectronicsChannel, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 99 × 55 mm, with 201 components from 38 distinct parts.
Other key parts include the LAN8720A (C45223), SN65MLVD206DR (C2671006), T20Q100F3C4, TLV803SDBZR (C132016) and CS2100CP-CZZR (C2663267). By type, the board carries 112 resistors, 56 capacitors, 10 diodes, 8 ICs, 4 connectors and 4 inductors.
It belongs with the audio designs in this gallery.
From the project

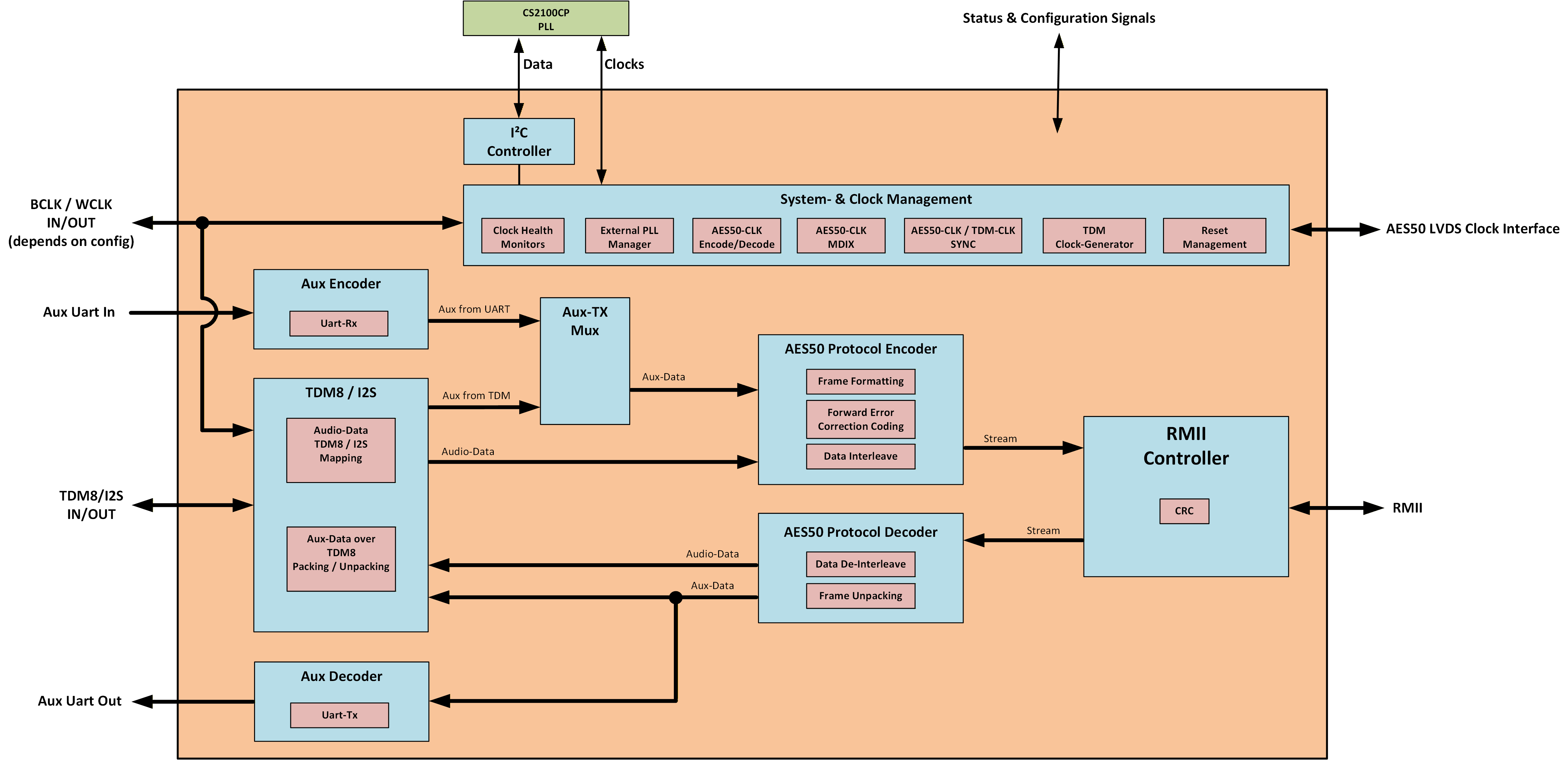

An IP-Core for AES50 protocol
- See further details in the TDM module implementation
This example uses a Raspberry Pi Pico (RP2040), which acts as a command bridge between a computer and the UART terminal connected to the FPGA/AES50 IP core. The device identifies itself as an X32 Full-Size and the head amps can be controlled via a serial terminal using the following command examples:
- gain:ch1@20 → Sets gain on channel 1 to +20 dB - phantom:ch5@1 → Enables +48V on channel 5 - phantom:ch5@0 → Disables +48V on channel 5

Main components on the AES50
AES50 bill of materials (BOM)
201 components, 38 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LAN8720A (C45223) | VQFN-24-1EP_4x4mm_P0.5mm_EP2.5x2.5mm_ThermalVias | U1 |
| 2 | SN65MLVD206DR (C2671006) | SOIC-8_3.9x4.9mm_P1.27mm | U2, U3 |
| 1 | T20Q100F3C4 | LQFP-100_14x14mm_P0.5mm | U4 |
| 1 | TLV803SDBZR (C132016) | SOT-23 | U5 |
| 1 | CS2100CP-CZZR (C2663267) | MSOP-10_3x3mm_P0.5mm | U6 |
| 2 | SY8089AAAC (C78988) | SOT-23-5 | U7, U8 |
| 1 | MMBT5551 (C2145) | SOT-23 | Q1 |
| 1 | Neutrik NE8FAH (C368497) | Neutrik NE8FAH | X1 |
| 1 | 25MHz (C7431317) | Oscillator_SMD_ECS_2520MV-xxx-xx-4Pin_2.5x2.0mm | X2 |
| 1 | PZ254-2-20-Z-2.5-G1 (C18198015) | PinHeader_2x20_P2.54mm_Vertical | J1 |
| 2 | FH2.54-09-07PZD (C7500776) | FH2.54-09-07PZD | J2, J4 |
| 1 | Standard Header 2.54mm | PinHeader_1x09_P2.54mm_Vertical | J3 |
| 1 | TS-1187A-B-A-B (C318884) | TS-1187A-B-A-B | SW1 |
| 1 | DSWB04LHGET (C99418) | DSWB04LHGET | SW2 |
| 2 | HX1188NLT (C9363) | HX1188NL | TR1, TR2 |
| 4 | LED 0805 Green (C2297) | LED_0805_2012Metric | D1, D6, D7, D10 |
| 1 | LED 0805 Yellow (C2296) | LED_0805_2012Metric | D2 |
| 4 | LED 0603 Red (C2286) | LED_0603_1608Metric | D3, D4, D5, D8 |
| 1 | SS34 40V 3A (C8678) | D_SMA | D9 |
| 2 | 600Ω/0603 (C1002) | L_0603_1608Metric | FB1, FB2 |
Show 18 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | FHD4020S-2R2MT (C602029) | L_APV_ANR4020 | L1, L2 |
| 35 | 100N/16V/0402 100n/16V/0402 | C_0402_1005Metric | C1, C2, C3, C5, C7, C8, C9, C10 +27 |
| 8 | 1U/50V/0603 1u/50V/0603 | C_0603_1608Metric | C4, C16, C17, C25, C29, C32, C36, C46 |
| 1 | 1N/2KV/1206 1n/2kV/1206 | C_1206_3216Metric | C6 |
| 1 | 10U/10V/0603 10u/10V/0603 | C_0603_1608Metric | C37 |
| 9 | 22U/25V/0805 22u/25V/0805 | C_0805_2012Metric | C40, C43, C44, C47, C50, C51, C54, C55 +1 |
| 2 | 22P/50V/0402 22p/50V/0402 | C_0402_1005Metric | C42, C49 |
| 4 | 49.9/0402 | R_0402_1005Metric | R1, R2, R3, R4 |
| 16 | 33/0402 | R_0402_1005Metric | R5, R6, R7, R8, R24, R29, R48, R59 +8 |
| 18 | 100/0402 | R_0402_1005Metric | R9, R47, R52, R53, R54, R55, R56, R57 +10 |
| 4 | 75/0603 | R_0603_1608Metric | R10, R11, R22, R23 |
| 10 | 1K/0402 1k/0402 | R_0402_1005Metric | R12, R19, R27, R28, R46, R49, R50, R81 +2 |
| 50 | 10K/0402 10k/0402 | R_0402_1005Metric | R13, R14, R15, R16, R18, R20, R21, R26 +42 |
| 2 | 12K/0402 12k/0402 | R_0402_1005Metric | R17, R74 |
| 2 | 100/0805 | R_0805_2012Metric | R25, R30 |
| 2 | 4K7/0402 4k7/0402 | R_0402_1005Metric | R79, R80 |
| 2 | 22K/0402 22k/0402 | R_0402_1005Metric | R87, R88 |
| 2 | 100K/0402 100k/0402 | R_0402_1005Metric | R90, R107 |
AES50 design files
The KiCad project lives in the YetAnotherElectronicsChannel/AES50 repository on GitHub; these links point at the commit this page was built from.
AES50: common questions
How big is the AES50 PCB?
The AES50 measures 99 × 55 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the AES50?
201 components, from 38 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the AES50 design files?
From the YetAnotherElectronicsChannel/AES50 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the AES50 design in my own project?
Yes, under the terms of its GPL-3.0 license, which YetAnotherElectronicsChannel chose for the repository.
