STLinkV3 Adapter

yingchaotw·STLinkV3_Adapter·Main_Circuit/STLinkV3_Adapter.kicad_pcb

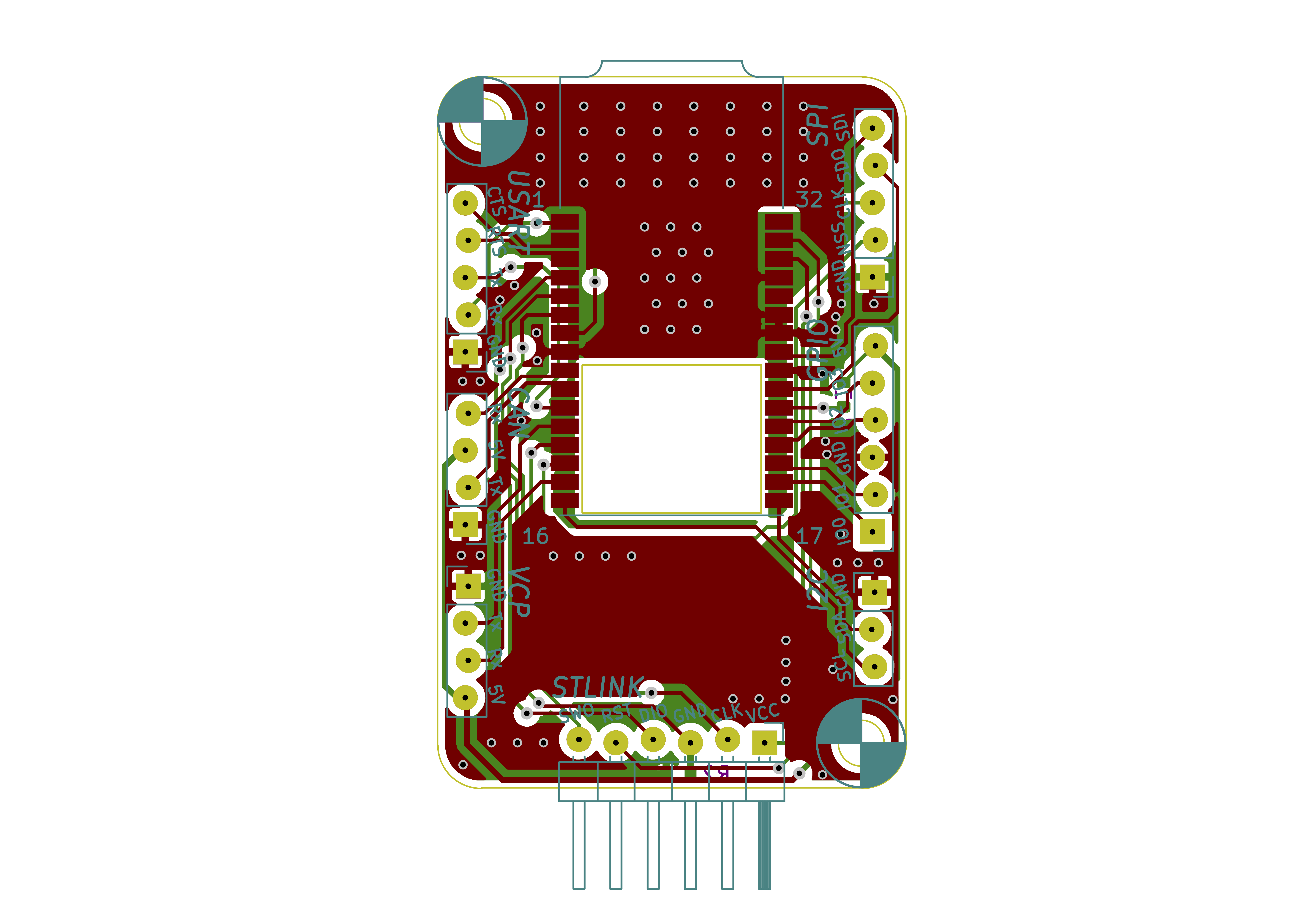

STLinkV3 Adapter PCB layout, top view — open source board by yingchaotw

Simulate this board

About the STLinkV3 Adapter PCB

STLinkV3 Adapter is an open source PCB design by yingchaotw, published on GitHub under the MIT license. It is a 2-layer board measuring 32 × 48.6 mm, with 10 components from 7 distinct parts.

Other key parts include the STLINK-V3MODS. By type, the board carries 7 connectors, 2 resistors and 1 IC.

It belongs with the usb & debug tools designs in this gallery.

From the project

This adapter board was designed to retain the STDC14 connector from stlink-v3.

SWD connector |Pin | Description | |----|----------------| | 1 | TargetVCC | | 2 | TargetSWCLK | | 3 | TargetGND | | 4 | TargetSWDIO | | 5 | TargetNRST | | 6 | TargetSWO |

The newly designed interposer board has not passed production verification, be careful of to use the adapter.

Please feel free to contact me if you need any further information. Email: yingcaho.tw@gmail.com

STLinkV3 Adapter, from the project README — From the project README

Main components on the STLinkV3 Adapter

STLinkV3 Adapter bill of materials (BOM)

10 components, 7 distinct parts.

Qty	Part	Footprint	Refs
1	STLINK-V3MODS	MODULE_STLINK-V3MODS	U1
1	Conn_01x03_Male	PinHeader_1x03_P2.54mm_Vertical	J1
2	Conn_01x05_Male	PinHeader_1x05_P2.54mm_Vertical	J2, J4
2	Conn_01x04_Male	PinHeader_1x04_P2.54mm_Vertical	J3, J5
1	Conn_01x06_Male	PinHeader_1x06_P2.54mm_Vertical	J6
1	Conn_01x06_Male	PinHeader_1x06_P2.54mm_Horizontal	J7
2	0R/5%	R_0603_1608Metric	R1, R2

STLinkV3 Adapter design files

The KiCad project lives in the yingchaotw/STLinkV3_Adapter repository on GitHub; these links point at the commit this page was built from.

LayoutMain_Circuit/STLinkV3_Adapter.kicad_pcb
SchematicMain_Circuit/STLinkV3_Adapter.kicad_sch

STLinkV3 Adapter: common questions

How big is the STLinkV3 Adapter PCB?

The STLinkV3 Adapter measures 32 × 48.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the STLinkV3 Adapter?

10 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the STLinkV3 Adapter design files?

From the yingchaotw/STLinkV3_Adapter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the STLinkV3 Adapter design in my own project?

Yes, under the terms of its MIT license, which yingchaotw chose for the repository.
