Stardeck

About the Stardeck PCB

Stardeck is an open source Raspberry Pi PCB design by YodaheWondimu, published on GitHub. It is a board, with 1 components from 1 distinct parts.

Its main chip is the Raspberry_Pi_4, from the Raspberry Pi family.

It belongs with the displays & leds designs in this gallery.

From the project

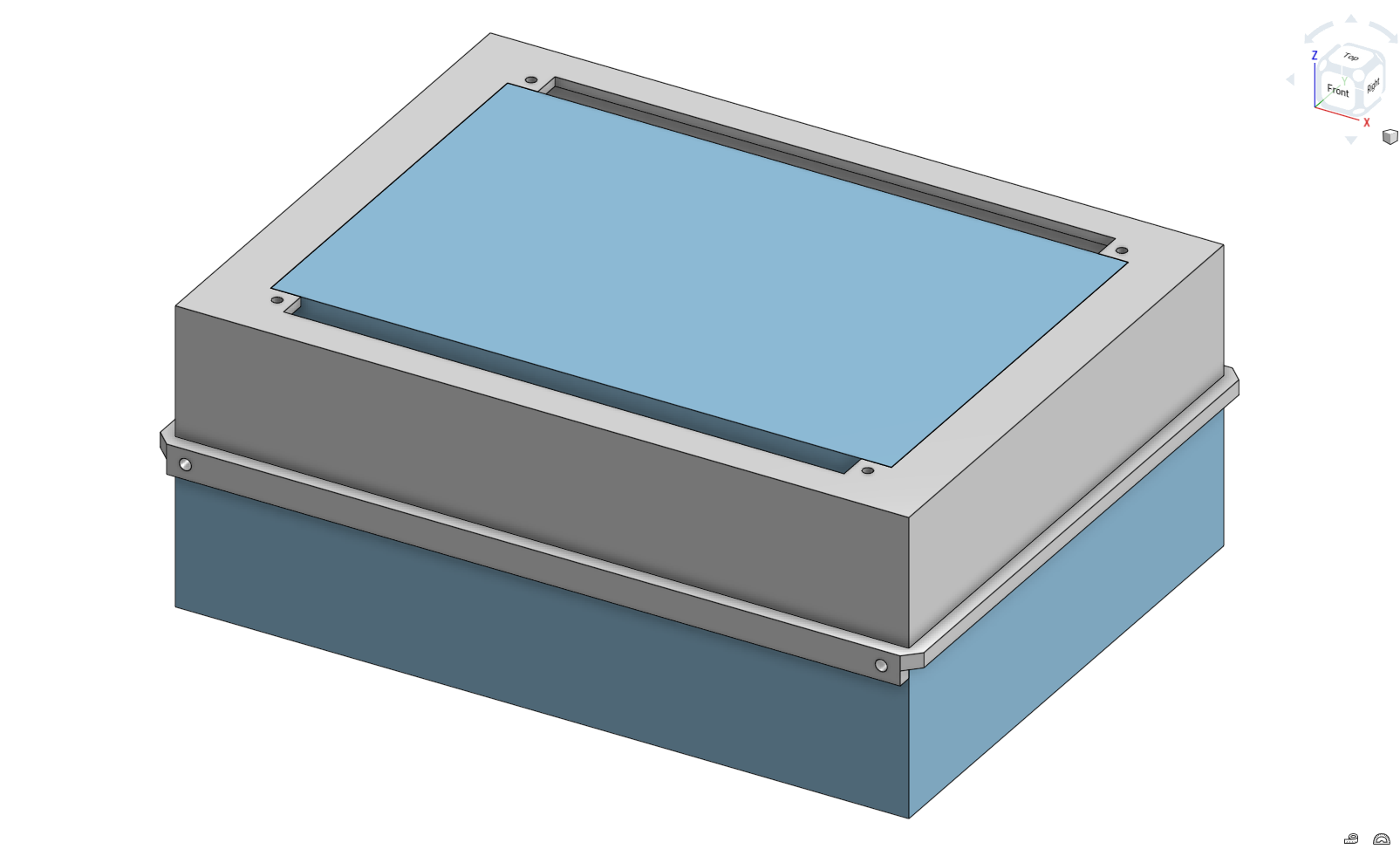

A minimalist cyberdeck made for a software guy to learn embedded systems, electronics, and hardware design.

A minimalist cyberdeck made for a software guy to learn embedded systems, electronics, and hardware design. Also, a project made during and for Hack Club's 2026 Stardance Challenge.

Once the hardware is assembled, Stardeck would be able to: - Boot Raspberry Pi OS - Surf the web - Download and upload files - Connect to external devices - Work with a touchscreen (no mouse required!) - Allow for further customization in the future (through the Pi's GPIO pins)

Stardeck bill of materials (BOM)

1 components, 1 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Raspberry_Pi_4
J1

Stardeck design files

The KiCad project lives in the YodaheWondimu/Stardeck repository on GitHub; these links point at the commit this page was built from.

Stardeck: common questions

What microcontroller does the Stardeck use?

The Stardeck is built around the Raspberry_Pi_4, from the Raspberry Pi family.

How many components are on the Stardeck?

1 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Stardeck design files?

From the YodaheWondimu/Stardeck repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.

Can I use the Stardeck design in my own project?

The repository has no license, so all rights stay with YodaheWondimu. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Stardeck without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
