AnsicGLP3'0Solder

yuburoll·ANSIC·kicad/GLP3'0/ansicGLP3'0Solder.kicad_pcb

AnsicGLP3'0Solder PCB layout, top view — open source board by yuburoll

Simulate this board

About the AnsicGLP3'0Solder PCB

AnsicGLP3'0Solder is an open source PCB design by yuburoll, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 97 mm, with 48 components from 7 distinct parts.

Other key parts include the ProMicro_r. By type, the board carries 23 switches, 21 diodes, 3 connectors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

uniform row staggered 40~42 key split keyboard under 100x100mm PCB

uniform row staggered 40~42 key split keyboard under 100x100mm PCB

- 2x ansic PCB Boards (5 boards are 2$ on JLC w/o shipping cost)

- 1x printed case sets, 2 parts total (Approx. 6$ if you buy printed one on JLC. Use braced ones or 2mm ones for 3d print)

- 2x keyboard plates (Approx. 4~12$ which method you use: 3DP, FR4 fab, CNC, laser cut. etc...)

- 2x back plates (Approx. 6~18$ which method you use: 3DP, FR4 fab, CNC, laser cut. etc..)

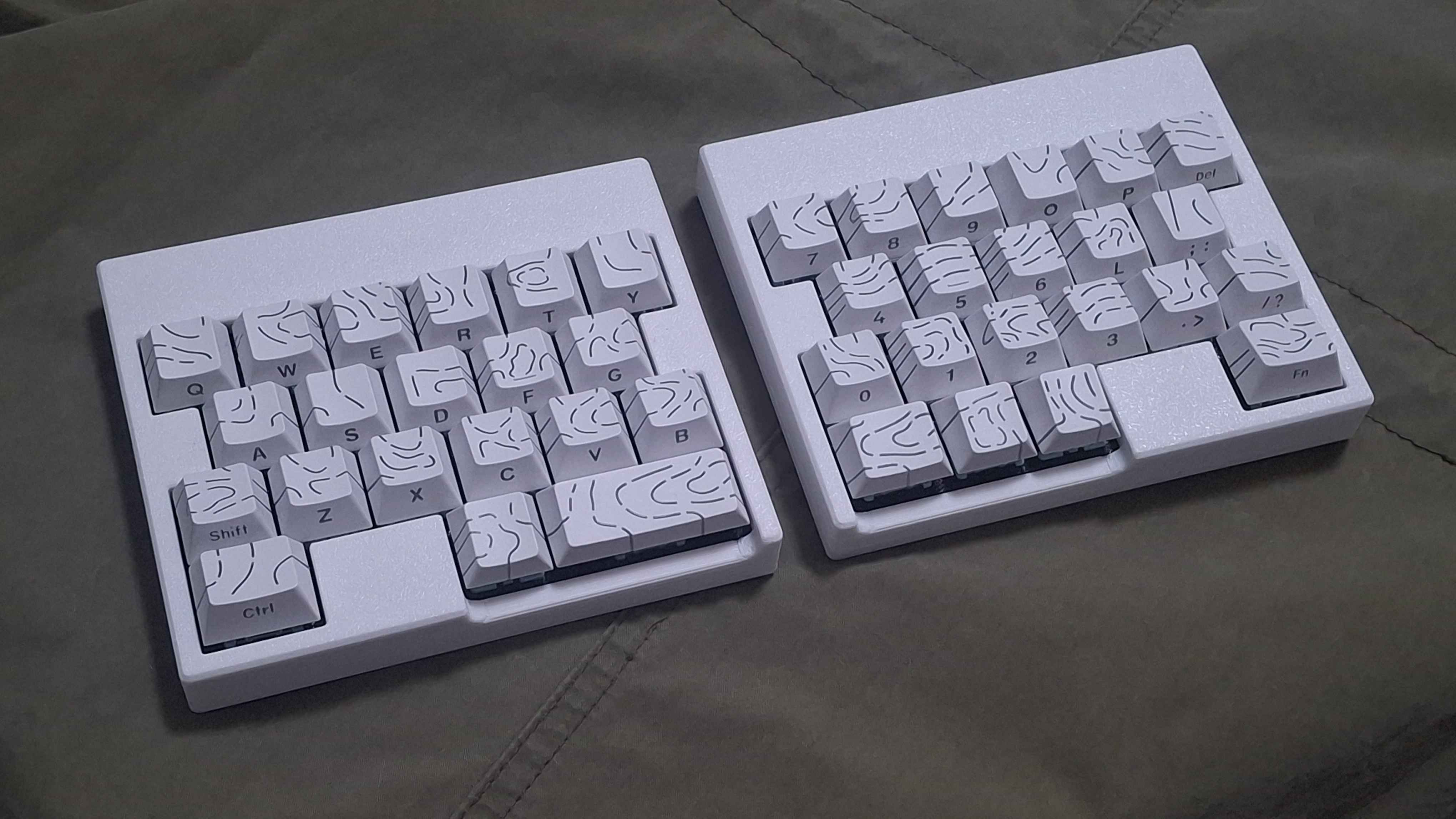

AnsicGLP3'0Solder, from the project README — From the project README

Main components on the AnsicGLP3'0Solder

AnsicGLP3'0Solder bill of materials (BOM)

48 components, 7 distinct parts.

Qty	Part	Footprint	Refs
1	ProMicro_r	ProMicro_unrouted_flipped_FootprintPropertyFix	U1
2	AudioJack4	TRRS-PJ-320A_PIN	J1, J2
1	Conn_01x02_Socket	Molex_PicoBlade_53048-0210_1x02_P1.25mm_Horizontal	J3
21	SW_Push	MXGLP3'0_Mill-Max_FootprintPropertyFix	SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +13
1	SW_SPDT	SW_SPDT_Shouhan_MSK12C02	SW22
1	SW_Push	SW_SPST_TL3342	SW23
21	D	Diode_TH_SMD_REVERSIBLE	D1, D2, D3, D4, D5, D6, D7, D8 +13

AnsicGLP3'0Solder design files

The KiCad project lives in the yuburoll/ANSIC repository on GitHub; these links point at the commit this page was built from.

Layoutkicad/GLP3'0/ansicGLP3'0Solder.kicad_pcb
Schematickicad/GLP3'0/ansicGLP3'0Solder.kicad_sch

AnsicGLP3'0Solder: common questions

How big is the AnsicGLP3'0Solder PCB?

The AnsicGLP3'0Solder measures 100 × 97 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AnsicGLP3'0Solder?

48 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the AnsicGLP3'0Solder design files?

From the yuburoll/ANSIC repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the AnsicGLP3'0Solder design in my own project?

Yes, under the terms of its MIT license, which yuburoll chose for the repository.
