FailDeadly PCB layout, top view — open source STM32 board by yvoronkin

About the FailDeadly PCB

FailDeadly is an open source STM32 PCB design by yvoronkin, published on GitHub under the Custom license license. It is a 4-layer board measuring 70 × 25 mm, with 92 components from 34 distinct parts.

Its main chip is the STM32F401CCUx, from the STM32 family. Other key parts include the MT9700, SN74LVC2G02DCUR, USBLC6-2P6, AP2112K-3.3 and LTV-817S. By type, the board carries 42 capacitors, 29 resistors, 10 ICs, 3 transistors, 3 connectors and 2 switches.

From the project

Fail Secure. Fail Deadly.

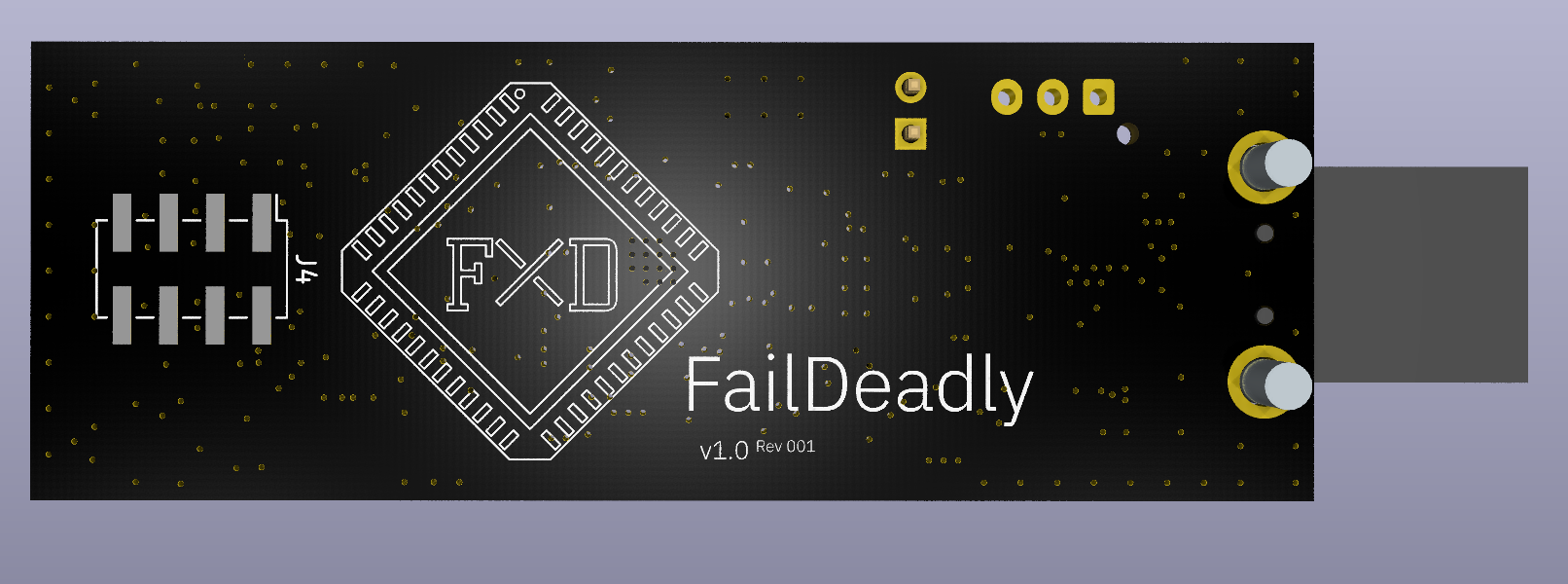

FailDeadly, from the project README
From the project README

Main components on the FailDeadly

MT9700SN74LVC2G02DCURUSBLC6-2P6AP2112K-3.3LTV-817SSTM32F401CCUxSN74LVC1G14DBVMCP121T-270E/TTSN74LVC1G17DBVRE4

FailDeadly bill of materials (BOM)

92 components, 34 distinct parts.

QtyPartRefs
1
MT9700
IC1
1
SN74LVC2G02DCUR
IC2
1
USBLC6-2P6
U1
1
AP2112K-3.3
U2
1
LTV-817S
U3
1
STM32F401CCUx
U4
2
SN74LVC1G14DBV
U5, U7
1
MCP121T-270E/TT
MCP121T-270E_TT
U6
1
SN74LVC1G17DBVRE4
U8
3
IRLML6401
Q4, Q5, Q6
1
KX-9A
KX-9A 25Mhz
Y1
1
KLS1-180B-W
J1
1
ionister_conn
J2
1
Conn_02x04_Odd_Even
J4
2
AH180-WG-7
S1, S2
1
LED_RED
D1
1
BAT54A
D2
5
10uf
C1, C4, C10, C39, C40
9
10nf
C2, C14, C16, C20, C23, C26, C33, C34 +1
15
100nf
C3, C5, C8, C12, C13, C19, C21, C22 +7
Show 14 more
QtyPartRefs
9
1uf
C9, C11, C15, C17, C25, C27, C35, C37 +1
1
2.2uF
C18
2
18pf
C28, C31
1
4.7uF
C45
3
10k
R2, R4, R24
9
100k
R3, R5, R9, R10, R12, R15, R19, R22 +1
2
22
R6, R7
2
220
R8, R16
1
47
R11
2
1M
R13, R30
5
0
R17, R18, R20, R21, R33
3
470k
R25, R28, R31
1
6.2k
R27
1
1k
R32

FailDeadly design files

The KiCad project lives in the yvoronkin/FailDeadly repository on GitHub; these links point at the commit this page was built from.

FailDeadly: common questions

What microcontroller does the FailDeadly use?

The FailDeadly is built around the STM32F401CCUx, from the STM32 family.

How big is the FailDeadly PCB?

The FailDeadly measures 70 × 25 mm, has 4 copper layers and is 1.569 mm thick.

How many components are on the FailDeadly?

92 components, from 34 distinct parts. The full bill of materials is listed on this page.

Where can I download the FailDeadly design files?

From the yvoronkin/FailDeadly repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the FailDeadly design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the FailDeadly without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
