About the NoahESC PCB

NoahESC is an open source AVR/Arduino PCB design by zosko, published on GitHub. It is a 2-layer board measuring 32 × 43.7 mm, with 48 components from 16 distinct parts.

Its main chip is the ATMEGA8A-A, from the AVR/Arduino family. Other key parts include the TPS709. By type, the board carries 25 resistors, 9 transistors, 6 capacitors, 3 diodes, 2 ICs and 2 connectors.

It belongs with the robotics & motion designs in this gallery.

From the project

NoahESC - Atmega8 based ESC

Arduino UNO as ISP programmer - avrdude -c stk500v1 -p m8 -P /dev/tty.usbmodem14401 -b 19200 -U flash:w:firmware.hex:i - avrdude -c stk500v1 -p m8 -P /dev/tty.usbmodem14401 -b 19200 -U lfuse:w:0x3f:m -U hfuse:w:0xca:m

USBasp - avrdude -c usbasp -p m8 -U flash:w:firmware.hex:i - avrdude -c usbasp -p m8 -U lfuse:w:0x3f:m -U hfuse:w:0xca:m

Huge thanks to PCBWay for sponsoring this project!

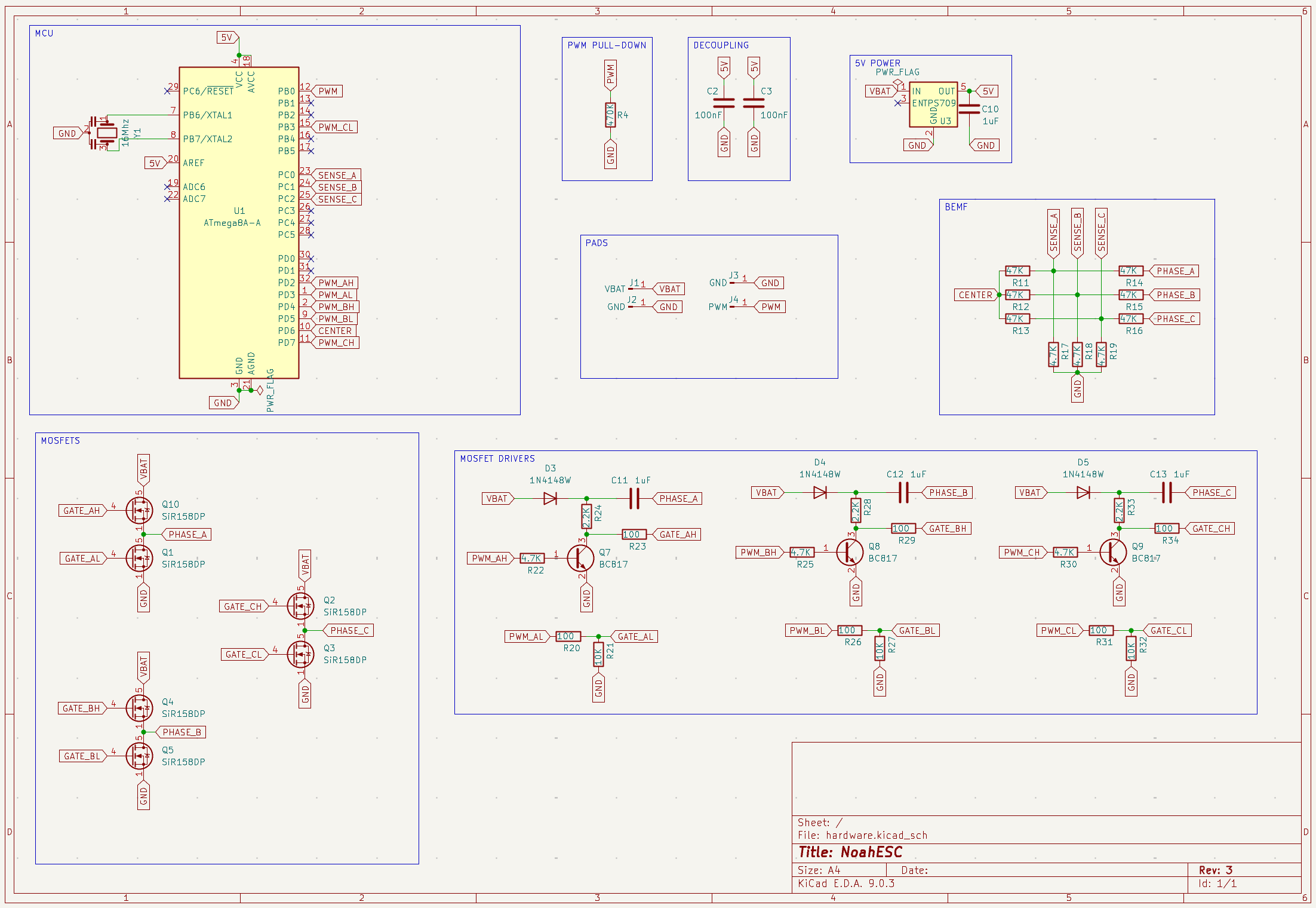

NoahESC, from the project README
From the project README

Main components on the NoahESC

ATMEGA8A-ATPS709

NoahESC bill of materials (BOM)

48 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA8A-A
ATmega8A-A
U1
1
TPS709
U3
6
SIR158DP
SiR158DP
Q1, Q2, Q3, Q4, Q5, Q10
3
BC817
Q7, Q8, Q9
1
16MHZ
16Mhz
Y1
1
C22438289
Programming
J5
1
PWM
J6
3
1N4148W
D3, D4, D5
2
100NF
100nF
C2, C3
4
1UF
1uF
C10, C11, C12, C13
1
470K
R4
6
47K
R11, R12, R13, R14, R15, R16
6
4.7K
R17, R18, R19, R22, R25, R30
6
100
R20, R23, R26, R29, R31, R34
3
10K
R21, R27, R32
3
2.2K
R24, R28, R33

NoahESC design files

The KiCad project lives in the zosko/NoahESC repository on GitHub; these links point at the commit this page was built from.

NoahESC: common questions

What microcontroller does the NoahESC use?

The NoahESC is built around the ATMEGA8A-A, from the AVR/Arduino family.

How big is the NoahESC PCB?

The NoahESC measures 32 × 43.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the NoahESC?

48 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the NoahESC design files?

From the zosko/NoahESC repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the NoahESC design in my own project?

The repository has no license, so all rights stay with zosko. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the NoahESC without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
