About the TutelPad PCB

TutelPad is an open source AVR/Arduino PCB design by 0xCB-dev, published on GitHub under the Custom license license. It is a 2-layer board measuring 61.9 × 65.9 mm, with 38 components from 17 distinct parts.

Its main chip is the ATMEGA32U4, from the AVR/Arduino family. Other key parts include the USBLC6-2SC6. By type, the board carries 12 capacitors, 6 resistors, 4 LEDs, 2 ICs, 2 inductors and 1 crystal.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

An 8-key macropad

Licence | OSHWA :-------------------------:|:-------------------------: | [](https://certification.oshwa.org/nl000009.html)

qmk clone cd qmkfirmware export LTO=Y Press switch 1 while plugging in to go into dfu mode (or the reset button) make 0xcb/tutelpad:via:flash

You can use the humanpnp to easily place components.

Top | Bottom :-------------------------:|:-------------------------: |

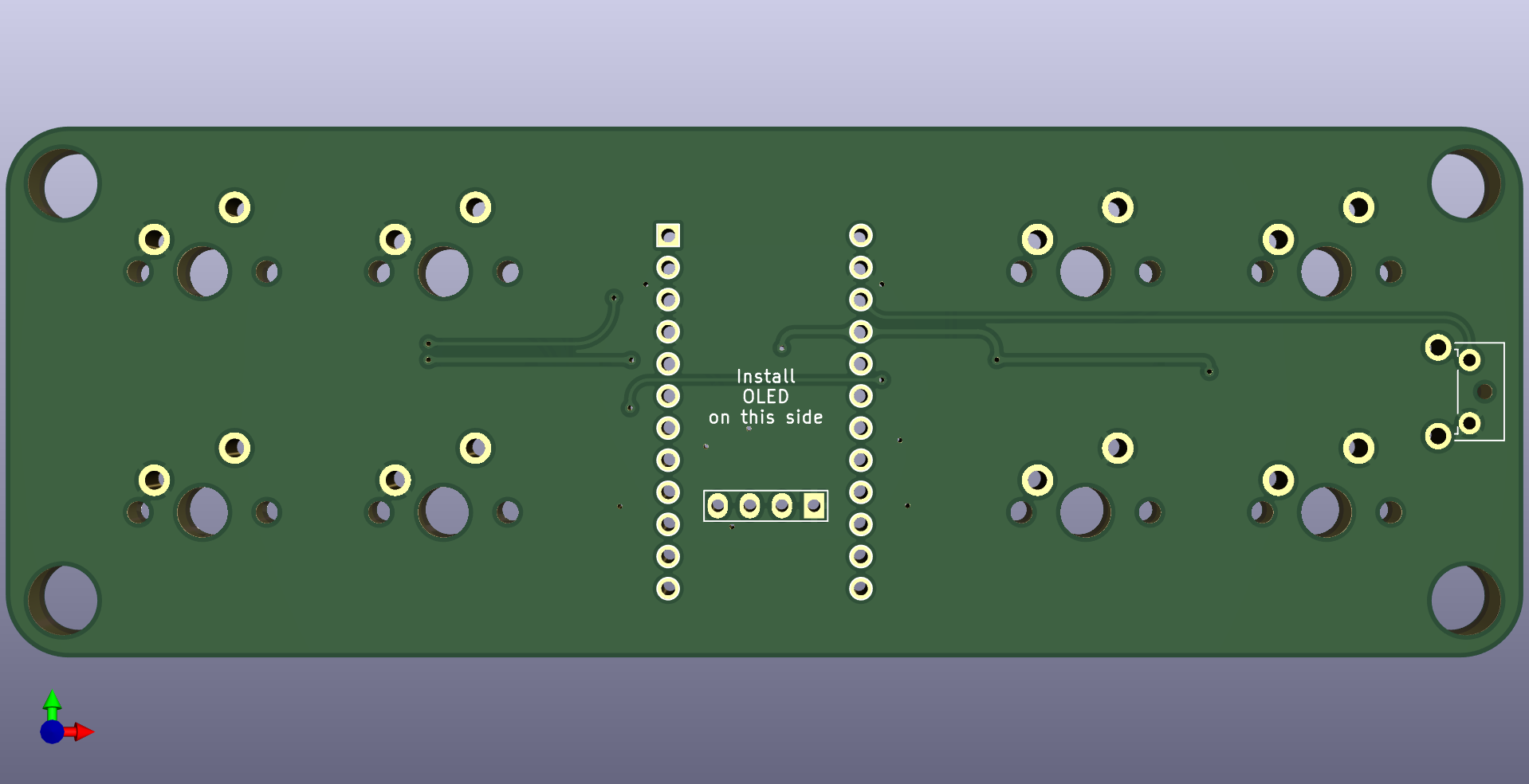

TutelPad, from the project README
From the project README

Main components on the TutelPad

USBLC6-2SC6ATMEGA32U4

TutelPad bill of materials (BOM)

38 components, 17 distinct parts.

QtyPartRefs
1
USBLC6-2SC6
U1
1
ATMEGA32U4
U2
1
16MHz
Y1
1
USB_IN
J1
1
1A
F1
7
MX-NoLED
MX1, MX2, MX3, MX4, MX5, MX6, MX7
1
SW_Push
SW1
4
WS2812B
RGB1, RGB2, RGB3, RGB4
1
SMF5.0CA
D1
2
600R
FB1, FB2
1
10u
C1
3
1u
C2, C6, C12
6
100n
C3, C4, C5, C9, C10, C11
2
22p
C7, C8
2
5.1k
R1, R2
2
22
R3, R4
2
10k
R5, R6

TutelPad design files

The KiCad project lives in the 0xCB-dev/0xCB-TutelPad repository on GitHub; these links point at the commit this page was built from.

TutelPad: common questions

What microcontroller does the TutelPad use?

The TutelPad is built around the ATMEGA32U4, from the AVR/Arduino family.

How big is the TutelPad PCB?

The TutelPad measures 61.9 × 65.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TutelPad?

38 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the TutelPad design files?

From the 0xCB-dev/0xCB-TutelPad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the TutelPad design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the TutelPad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
