AuraClicker PCB layout, top view — open source ESP32 board by AayushmanDas

About the AuraClicker PCB

AuraClicker is an open source ESP32 PCB design by AayushmanDas, published on GitHub under the MIT license. It is a 2-layer board measuring 46 × 90.7 mm, with 28 components from 21 distinct parts.

Its main chip is the ESP32-C3-WROOM-02-N4, from the ESP32 family. By type, the board carries 9 resistors, 6 capacitors, 5 switches, 2 LEDs and 1 IC.

It belongs with the iot & wireless and power & battery designs in this gallery.

From the project

Presentation device

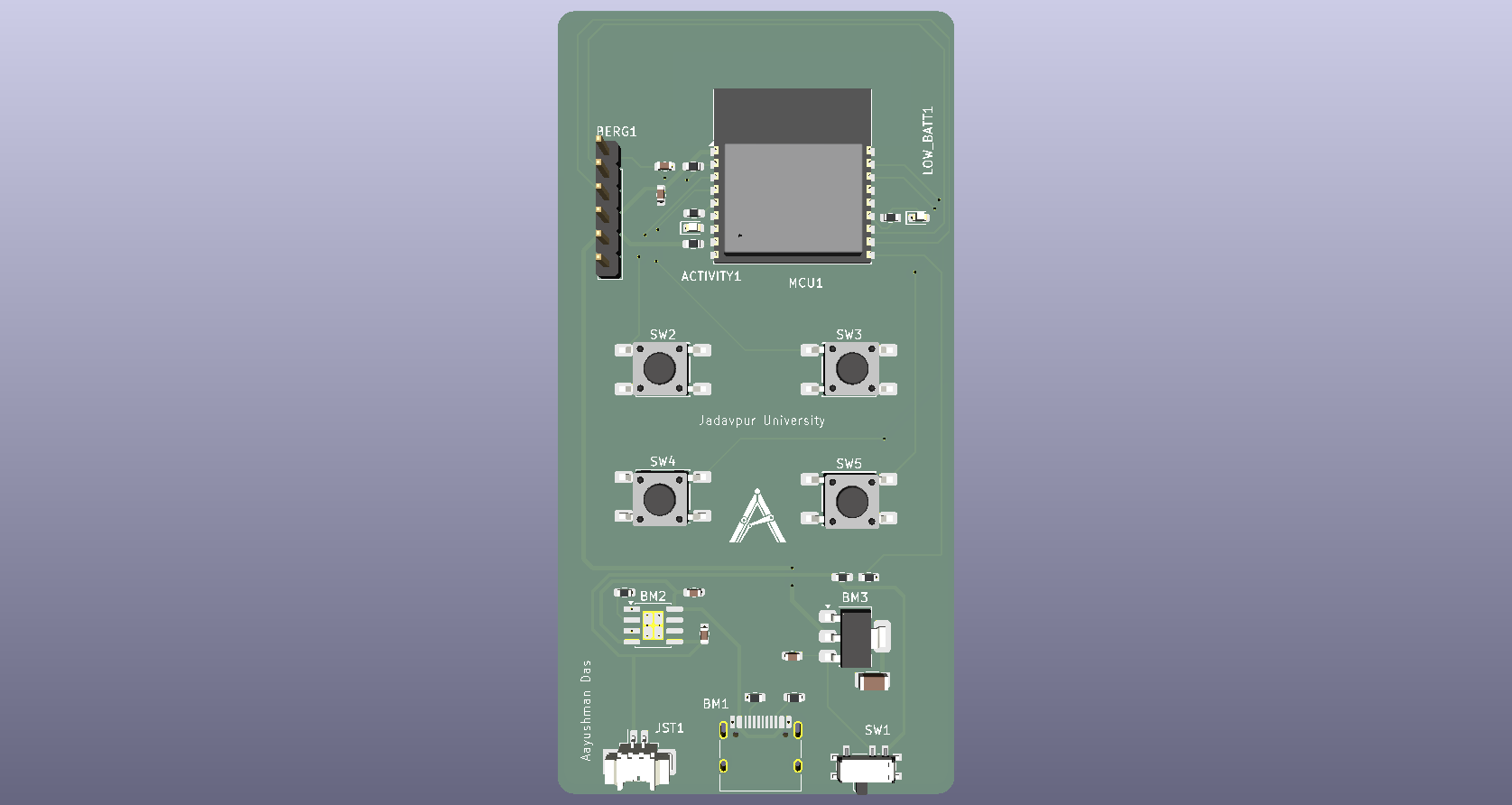

A compact, battery-powered custom macro-pad and wireless input controller powered by the ESP32-C3 RISC-V microcontroller.

Designed natively in KiCad with end-to-end Design for Manufacturing (DFM) verification, ready for turnkey fabrication and assembly via JLCPCB SMT services.

MCU Core: ESP32-C3 RISC-V SoC (2.4 GHz Wi-Fi & Bluetooth 5 LE). Power & Battery Management: Dedicated TP4056 Li-Po linear charging IC over USB-C. AMS1117-3.3 high-current LDO for clean 3.3V power distribution. 2-Pin Molex PicoBlade (1.25mm) battery connector. Recommended to be used with 3.7-4.2V 500mAh LiPo battery.…

AuraClicker, from the project README
From the project README

Main components on the AuraClicker

ESP32-C3-WROOM-02-N4

AuraClicker bill of materials (BOM)

28 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-C3-WROOM-02-N4
ESP32-C3
MCU1
1
PH2.54-06PB2G-H25
FTDI
BERG1
1
HX USB3.1TYPE-C-16P FS
USB_C_Receptacle_USB2.0_16P
BM1
1
TP4056
BM2
1
AMS1117-3.3
AMS1117
BM3
1
S2B-PH-K(LF)(SN)
LiPo
JST1
1
MST-12D18G4 SPDT Slide Switch
POWER
SW1
1
SH-6X6X5H-TP
NEXT
SW2
1
SH-6X6X5H-TP
PREV
SW3
1
SH-6X6X5H-TP
ESC
SW4
1
SH-6X6X5H-TP
BLACK
SW5
2
YLED0603G
LED
ACTIVITY1, LOW_BATT1
3
TMCJ0J106MTRF
10uF
C1, C2, C3
1
TAJA226M016RNJ
22uF
C4
1
CC0603KRX7R9BB104
100nF
C5
1
TACL105K016XTA
1uF
C6
2
FRC0603F5101TS
5.1kohm
R1, R2
1
RC0603FR-074K7L
4.7kohm
R3
2
RC0603FR-0710KL
10kohm
R6, R7
2
RC0603FR-07100KL
100kohm
R8, R9
Show 1 more
QtyPartRefs
2
RC0603FR-07330RL
330ohm
R10, R12

AuraClicker design files

The KiCad project lives in the AayushmanDas/AuraClicker repository on GitHub; these links point at the commit this page was built from.

AuraClicker: common questions

What microcontroller does the AuraClicker use?

The AuraClicker is built around the ESP32-C3-WROOM-02-N4, from the ESP32 family.

How big is the AuraClicker PCB?

The AuraClicker measures 46 × 90.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AuraClicker?

28 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the AuraClicker design files?

From the AayushmanDas/AuraClicker repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the AuraClicker design in my own project?

Yes, under the terms of its MIT license, which AayushmanDas chose for the repository.

Can I test firmware for the AuraClicker without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
