EGSE PCB layout, top view — open source RP2040/RP2350 board by abelwu2001

About the EGSE PCB

EGSE is an open source RP2040/RP2350 PCB design by abelwu2001, published on GitHub. It is a 6-layer board measuring 327 × 271 mm, with 107 components from 105 distinct parts.

Its main chip is the Pico-Clasp_01x03, from the RP2040/RP2350 family. Other key parts include the DS2782E+ and SPV1040TTR. By type, the board carries 73 connectors, 5 capacitors, 3 diodes, 3 resistors, 2 ICs and 2 transistors.

It belongs with the power & battery designs in this gallery.

From the project

Proyecto Final para el armado de un nanoSat

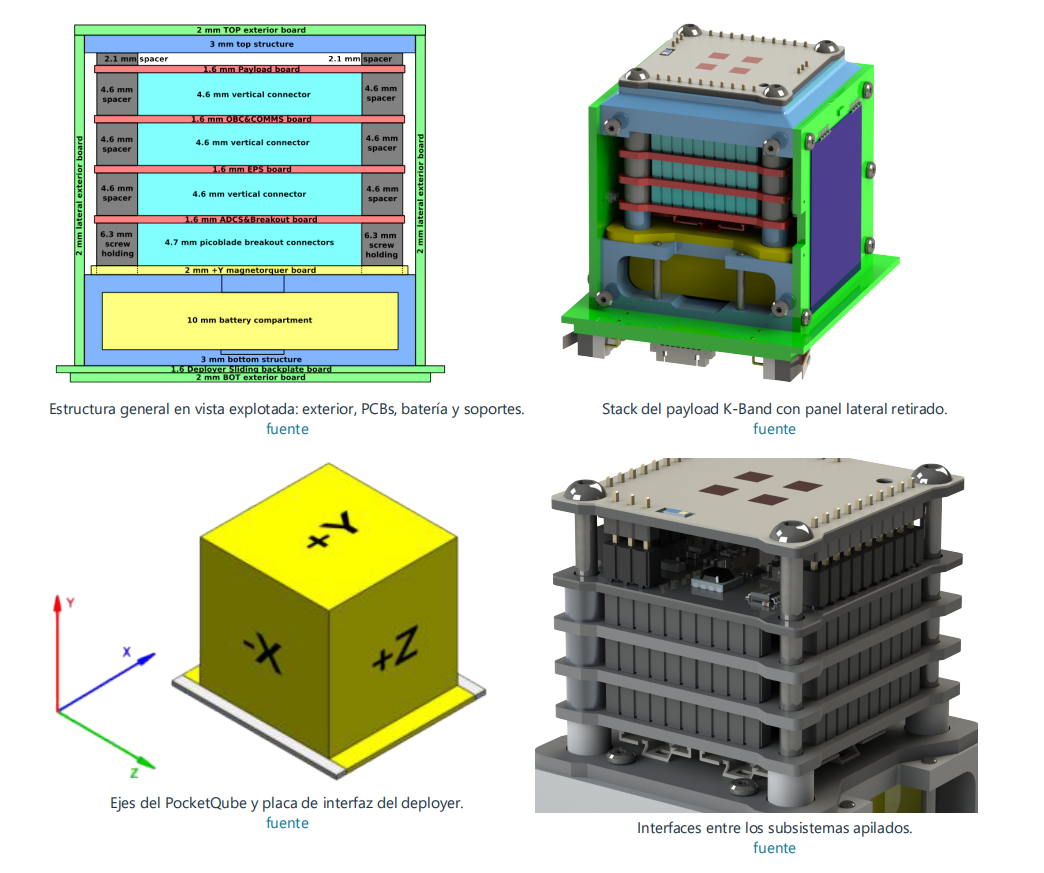

Este documento resume las placas, elementos estructurales, componentes externos, cableado y tornillería necesarios para el armado de la plataforma PocketQube.

Link de la wiki donde se explica todo sobre el proyecto:

- 4 integrados en las pqlatboard - 1 integrado en la pqbotboard - 1 en la PQMagYBoard`

Los magnetorquers integrados en las placas se forman mediante pistas/bobinas de cobre del propio PCB, por lo que no se compran como componentes independientes.

EGSE, from the project README
