Arcade Joystick Interface Board

Accessible-AAC·AAC-Devices·peripherals/arcade_joystick/arcade_joystick_pcb/arcade_joystick_pcb.kicad_pcb

Arcade Joystick Interface Board layout, top view — open source board by Accessible-AAC

About the Arcade Joystick Interface Board

Arcade Joystick Interface Board is an open source PCB design by Accessible-AAC, published on GitHub. It is a 2-layer board measuring 19.1 × 22.9 mm, with 6 components from 3 distinct parts.

By type, the board carries 4 resistors and 2 connectors.

From the project

Augmentative and alternative communications device design files based on inexpensive and open source technologies.

These directories contain design files for an arcade joystick peripheral.

This sensor can be plugged into an analog (yellow) controller input. It is activated by moving the handle.

Internal hardware mechanism is an arcade style 4/8 way joystick purchased from China.

It is held in place by four 8-32 x 1½" machine screws inserted into 4 embedded 8-32 nuts.

The joystick is connected to the interface PCB using hook-up wire:

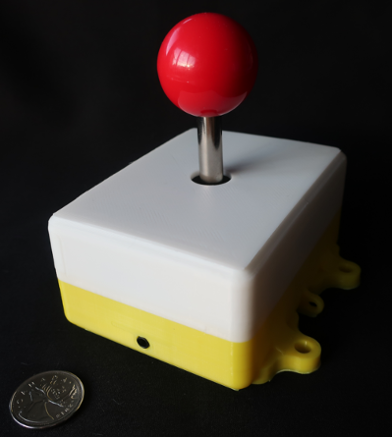

Arcade Joystick Interface Board, from the project README
From the project README

Arcade Joystick Interface Board bill of materials (BOM)

6 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
PJ320A
J1
1
Mr_Joystick
J2
4
10k
R1, R2, R3, R4

Arcade Joystick Interface Board design files

The KiCad project lives in the Accessible-AAC/AAC-Devices repository on GitHub; these links point at the commit this page was built from.

Arcade Joystick Interface Board: common questions

How big is the Arcade Joystick Interface Board?

The Arcade Joystick Interface Board measures 19.1 × 22.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Arcade Joystick Interface Board?

6 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Arcade Joystick Interface Board design files?

From the Accessible-AAC/AAC-Devices repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Arcade Joystick Interface Board design in my own project?

The repository has no license, so all rights stay with Accessible-AAC. Use it as a reference, and ask the author before reusing the design.
