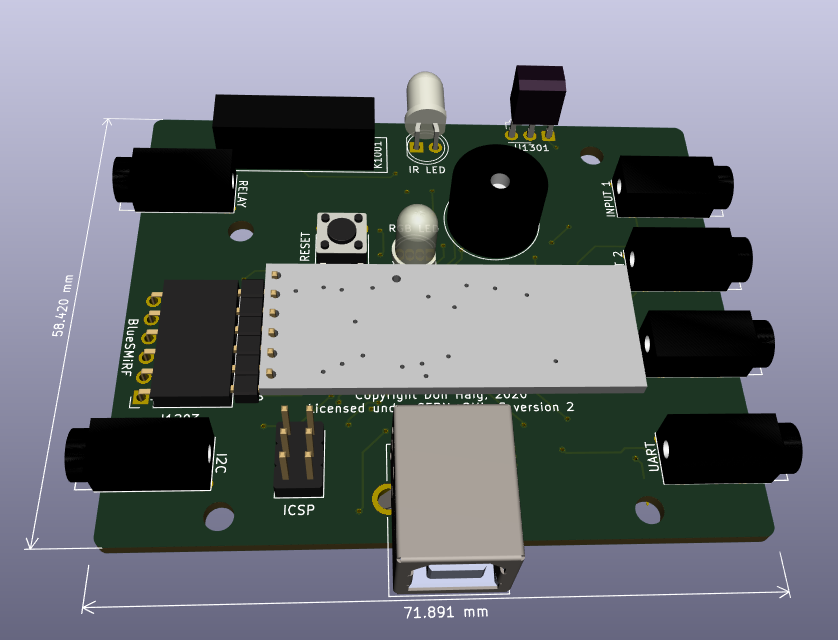

Atmega32u4 hub pcb 1 2 layout, top view — open source AVR/Arduino board by Accessible-AAC

About the Atmega32u4 hub pcb 1 2

Atmega32u4 hub pcb 1 2 is an open source AVR/Arduino PCB design by Accessible-AAC, published on GitHub. It is a 2-layer board measuring 71.9 × 58.4 mm, with 65 components from 29 distinct parts.

Its main chip is the ATMEGA32U4-AU, from the AVR/Arduino family. Other key parts include the TSOP38238. By type, the board carries 21 resistors, 12 capacitors, 9 connectors, 6 diodes, 3 transistors and 2 ICs.

From the project

Augmentative and alternative communications device design files based on inexpensive and open source technologies.

These directories contain design files for two versions of an AAC controller based on the Atmel ATmega32U4. The designs are functionally identical but use microcrontrollers in different form factors. Version 1.2 is based on an ATmega32U4-AU (44-TQFP) while version 1.3 is based on an ATmega32U4-MU (44-VQFNA).

The most recent firmware for the controller can be found here: https://github.com/AbilitySpectrum/netCle/tree/master/Arduino/HubV2

Atmega32u4 hub pcb 1 2, from the project README
From the project README

Main components on the Atmega32u4 hub pcb 1 2

ATMEGA32U4-AUTSOP38238

Atmega32u4 hub pcb 1 2 bill of materials (BOM)

65 components, 29 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA32U4-AU
ATmega32U4-AU
U101
1
TSOP38238
TSOP34156
U1301
3
BSS138
Q701, Q801, Q901
1
C13738
16 MHz
Y101
1
CONN_02X03_ODD_EVEN
Conn_02x03_Odd_Even
J101
6
PJ320A
J201, J301, J401, J501, J1001, J1202
1
C498173
USB_B
J1201
1
C225514
BlueSMiRF
J1203
1
12MM_BUZZER
12mm_Buzzer
Buzzer701
7
ESDA5V3L
ESD201, ESD301, ESD401, ESD501, ESD1101, ESD1201, ESD1202
1
TLC-FSMD050
F1201
1
C10496
RELAY
K1001
1
C455095
RESET
SW101
1
C72043
RX
D101
1
RGB LED
D102
1
C72044
TX
D103
1
C72038
L
D104
1
IR LED
D701
1
1N4007
D1001
7
22UF
22uF
C101, C102, C103, C107, C108, C110, C111
Show 9 more
QtyPartRefs
1
1UF
1uF
C104
2
20PF
20pF
C105, C109
1
100NF
100nF
C106
1
10UF
10uF
C1101
12
10K
10k
R101, R102, R103, R104, R105, R108, R115, R116 +4
3
330
R106, R107, R112
3
1k
R111, R113, R114
1
47
R701
2
22
R1201, R1202

Atmega32u4 hub pcb 1 2 design files

The KiCad project lives in the Accessible-AAC/AAC-Devices repository on GitHub; these links point at the commit this page was built from.

Atmega32u4 hub pcb 1 2: common questions

What microcontroller does the Atmega32u4 hub pcb 1 2 use?

The Atmega32u4 hub pcb 1 2 is built around the ATMEGA32U4-AU, from the AVR/Arduino family.

How big is the Atmega32u4 hub pcb 1 2?

The Atmega32u4 hub pcb 1 2 measures 71.9 × 58.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Atmega32u4 hub pcb 1 2?

65 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Atmega32u4 hub pcb 1 2 design files?

From the Accessible-AAC/AAC-Devices repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Atmega32u4 hub pcb 1 2 design in my own project?

The repository has no license, so all rights stay with Accessible-AAC. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Atmega32u4 hub pcb 1 2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
