Switch Adaptor

Accessible-AAC·AAC-Devices·peripherals/switch_adaptor/switch_adaptor_pcb/switch_adaptor.kicad_pcb

Switch Adaptor PCB layout, top view — open source board by Accessible-AAC

About the Switch Adaptor PCB

Switch Adaptor is an open source PCB design by Accessible-AAC, published on GitHub. It is a 2-layer board measuring 25.2 × 23.4 mm, with 3 components from 1 distinct parts.

From the project

Augmentative and alternative communications device design files based on inexpensive and open source technologies.

These directories contain design files for a switch adaptor.

The switch adaptor is required to connect a commercial switch (or a tactile switch with a black base) to an analog (yellow) controller input.

Switches should be plugged into the switch adaptor inputs indicated with the "red button icons". The output connector (no icon) should be connected an analog (yellow) controller input.

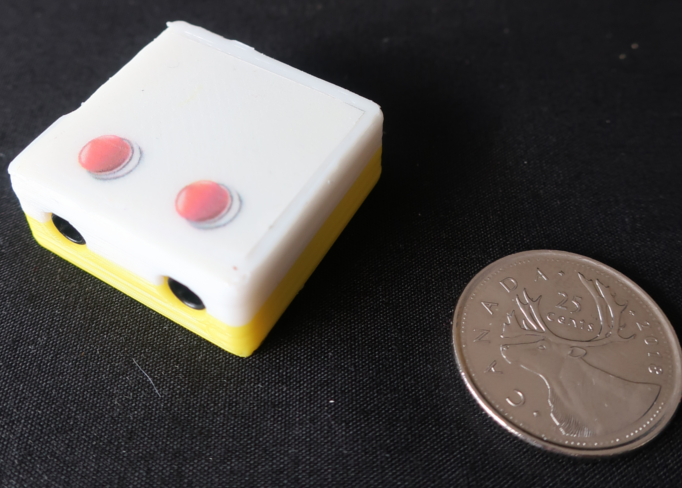

Switch Adaptor, from the project README
From the project README

Switch Adaptor bill of materials (BOM)

3 components, 1 distinct parts — part numbers from the project's BOM.

QtyPartRefs
3
PJ320A
J1, J2, J3

Switch Adaptor design files

The KiCad project lives in the Accessible-AAC/AAC-Devices repository on GitHub; these links point at the commit this page was built from.

Switch Adaptor: common questions

How big is the Switch Adaptor PCB?

The Switch Adaptor measures 25.2 × 23.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Switch Adaptor?

3 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Switch Adaptor design files?

From the Accessible-AAC/AAC-Devices repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Switch Adaptor design in my own project?

The repository has no license, so all rights stay with Accessible-AAC. Use it as a reference, and ask the author before reusing the design.
