About the Aria PCB
Aria is an open source ESP8266 PCB design by adamjvr, published on GitHub. It is a 4-layer board measuring 80 × 27 mm, with 70 components from 39 distinct parts.
Its main chip is the ESP_12E, from the ESP8266 family. Other key parts include the BQ24210DQCT, AZ1117CR-3.3TRG1_1 and STM32F446RET6_-_TQFP64. By type, the board carries 24 resistors, 20 capacitors, 6 connectors, 4 ICs, 3 LEDs and 2 transistors.
It belongs with the power & battery and iot & wireless designs in this gallery.
From the project
ARM Cortex M4F + WiFi + MPPT Solar Battery Powered module, mBed and Arduino Compatible

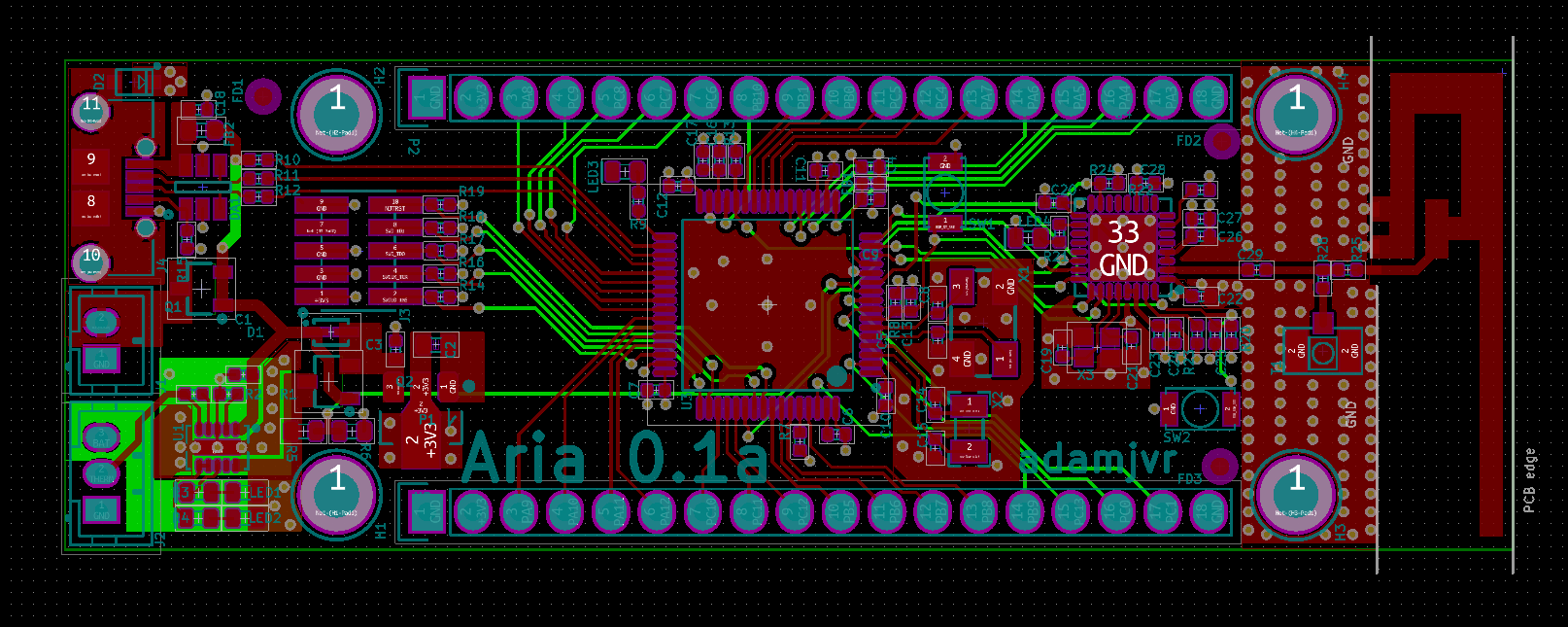

Aria 0.1a PCB Aria 0.1a 3D Render of PCB Top Bottom Aria 0.1a ESP-12E Version PCB

Main components on the Aria
Aria bill of materials (BOM)
70 components, 39 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ESP_12E | ESP-12E | IC1 |
| 1 | BQ24210DQCT | BQ24210 | U1 |
| 1 | AZ1117CR-3.3TRG1_1 | AZ1117CR-3.3TRG1 | U2 |
| 1 | STM32F446RET6_-_TQFP64 | STM32F446RET6 | U3 |
| 2 | DMG2307L-7 | DMG2307L-7 | Q1, Q2 |
| 1 | ABM3B8.000MHZB2T | ABM3B8.000MHZB2T | X1 |
| 1 | ABS07-32.768KHZ-9-T | ABS07-32.768KHZ-9-T | X2 |
| 1 | B2B-PH-K-S(LF)(SN) | B2B-PH-K-S(LF)(SN) | J1 |
| 1 | B3B-PH-K-S(LF)(SN) | B3B-PH-K-S(LF)(SN) | J2 |
| 1 | 20021121-00010C4LF | 20021121-00010C4LF | J3 |
| 1 | 0475890001-MICROUSBPORT 0475890001-MicroUSBPort | 0475890001 | J4 |
| 2 | CONN_01X18 | Socket_Strip_Straight_1x18 | P1, P2 |
| 1 | ESDA6V1BC6 | ESDA6V1BC6 | DA1 |
| 2 | M2.5_HOLE M2.5_Hole | M2.5_HOLE | H1, H2 |
| 2 | B3U-1000P | B3U-1000P | SW1, SW2 |
| 1 | LTST-C191KGKT | LED0603 | LED1 |
| 1 | LTST-C191KFKT | LED0603 | LED2 |
| 1 | LTST-C193TBKT-5A | LED0603 | LED3 |
| 1 | BAT20JFILM | BAT20JFILM | D1 |
| 1 | RSB39VTE-17 | RSB39VTE-17 | D2 |
Show 19 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BLM15HG601SN1D | BLM15HG601SN1D | FB1 |
| 1 | MI0603K300R-10 | MI0603K300R-10 | FB2 |
| 2 | CL05A105KA5NQNC | C0402 | C1, C2 |
| 1 | CL10A106KQ8NNNC | C0603 | C3 |
| 10 | CL05B104JP5NNNC | C0402 | C4, C6, C7, C9, C10, C11, C12, C13 +2 |
| 2 | CL05C090CB5NNNC | C0402 | C5, C8 |
| 2 | CL05C180GB5NCNC | C0402 | C14, C15 |
| 1 | CL05A475KQ5NRNC | C0402 | C16 |
| 1 | CL05C090CB5NNNC CL05B104JP5NNNC | C0402 | C19 |
| 1 | CL05B104JP5NNNC CL10A106KQ8NNNC | C0603 | C20 |
| 1 | RC1005F4870CS | R0402 | R1 |
| 9 | RC1005F102CS | R0402 | R2, R8, R9, R14, R16, R17, R18, R19 +1 |
| 2 | RC1608J202CS | R0603 | R3, R4 |
| 2 | ERA-3AEB3741V | R0603 | R5, R6 |
| 4 | RC1005F103CS | R0402 | R7, R10, R13, R24 |
| 2 | CPF0402B22RE1 | R0402 | R11, R12 |
| 1 | RC1005J473CS | R0402 | R15 |
| 1 | RC1005F102CS RC1005F103CS | R0402 | R21 |
| 2 | RC1005F123CS RC1005F103CS | R0402 | R22, R23 |
Aria design files
The KiCad project lives in the adamjvr/Aria repository on GitHub; these links point at the commit this page was built from.
Aria: common questions
What microcontroller does the Aria use?
The Aria is built around the ESP_12E, from the ESP8266 family.
How big is the Aria PCB?
The Aria measures 80 × 27 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Aria?
70 components, from 39 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Aria design files?
From the adamjvr/Aria repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Aria design in my own project?
The repository has no license, so all rights stay with adamjvr. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Aria without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
