Devvyboard PCB layout, top view — open source RP2040/RP2350 board by adriel-babalola

About the Devvyboard PCB

Devvyboard is an open source RP2040/RP2350 PCB design by adriel-babalola, published on GitHub. It is a 2-layer board measuring 21 × 51 mm, with 33 components from 16 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q16JVUXIQ and MCP1700X-330XXTT. By type, the board carries 17 capacitors, 7 resistors, 4 connectors, 3 ICs, 1 crystal and 1 switch.

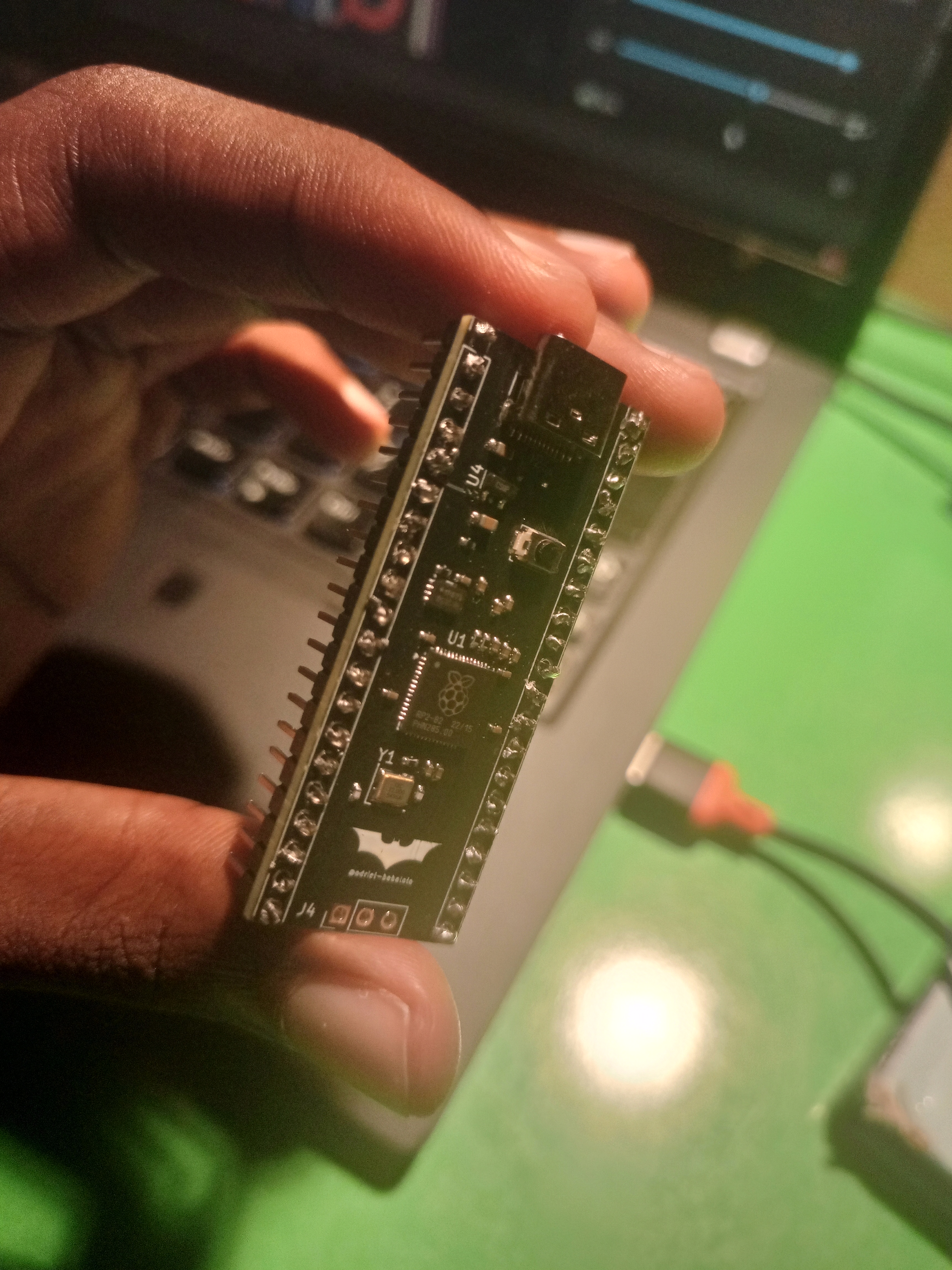

Devvyboard, from the project README
From the project README

Main components on the Devvyboard

RP2040W25Q16JVUXIQMCP1700X-330XXTT

Devvyboard bill of materials (BOM)

33 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
U1
1
W25Q16JVUXIQ
U3
1
MCP1700X-330XXTT
MCP1700x-330xxTT
U4
1
CRYSTAL_GND24
Crystal_GND24
Y1
2
CONN_01X20
Conn_01x20
J1, J3
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J2
1
CONN_01X03
Conn_01x03
J4
1
SW_Push
SW1
2
1UF
1uF
C1, C12
11
0.1UF
0.1uF
C2, C3, C4, C5, C6, C7, C8, C9 +3
2
10UF
10uF
C13, C14
2
33PF
33pF
C15, C16
2
5.1K
R1, R2
2
27
R3, R4
2
1k
R5, R7
1
10K
10k
R6

Devvyboard design files

The KiCad project lives in the adriel-babalola/devvyboard repository on GitHub; these links point at the commit this page was built from.

Devvyboard: common questions

What microcontroller does the Devvyboard use?

The Devvyboard is built around the RP2040, from the RP2040/RP2350 family.

How big is the Devvyboard PCB?

The Devvyboard measures 21 × 51 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Devvyboard?

33 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Devvyboard design files?

From the adriel-babalola/devvyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Devvyboard design in my own project?

The repository has no license, so all rights stay with adriel-babalola. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Devvyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
