Meow70

aerogull·meow70·pcb/keyboardv2.kicad_pcb

Meow70 PCB layout, top view — open source RP2040/RP2350 board by aerogull

About the Meow70 PCB

Meow70 is an open source RP2040/RP2350 PCB design by aerogull, published on GitHub. It is a 2-layer board measuring 364.2 × 100.5 mm, with 144 components from 9 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 69 switches, 69 diodes, 2 ICs, 2 modules and 2 connectors.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

A split keyboard designed around a raspberry pi zero

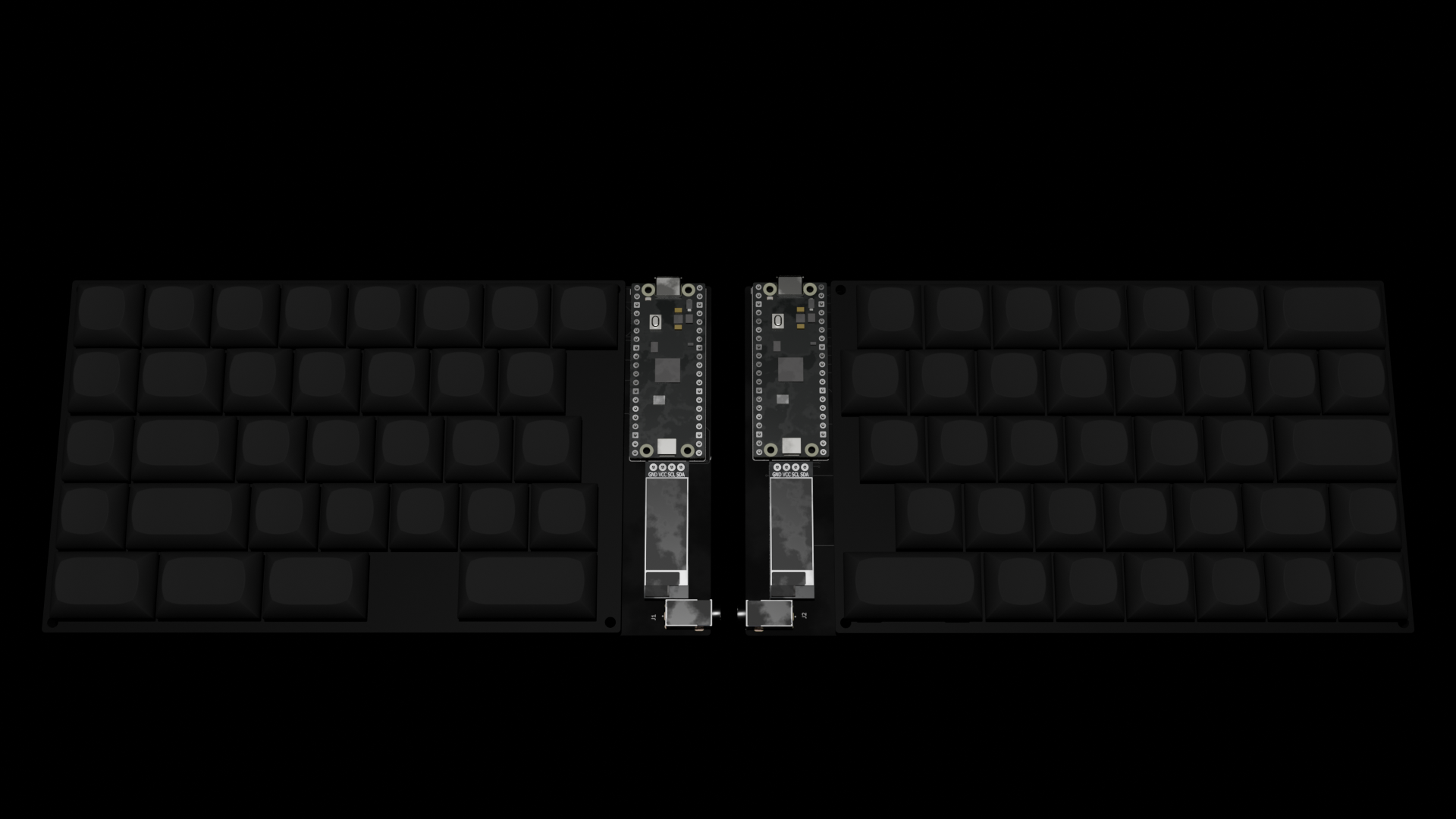

Meow70, from the project README
From the project README

Main components on the Meow70

RaspberryPi_Pico

Meow70 bill of materials (BOM)

144 components, 9 distinct parts.

QtyPartRefs
2
~
U1, U2
2
RaspberryPi_Pico
A1, A3
2
AudioJack4
J1, J2
58
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +50
3
SW_Push
SW14, SW41, SW42
2
SW_Push
SW15, SW53
4
SW_Push
SW29, SW55, SW56, SW57
2
SW_Push
SW58, SW59
69
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +61

Meow70 design files

The KiCad project lives in the aerogull/meow70 repository on GitHub; these links point at the commit this page was built from.

Meow70: common questions

What microcontroller does the Meow70 use?

The Meow70 is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Meow70 PCB?

The Meow70 measures 364.2 × 100.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Meow70?

144 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Meow70 design files?

From the aerogull/meow70 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Meow70 design in my own project?

The repository has no license, so all rights stay with aerogull. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Meow70 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
