Pcb business card

AG2048·pcb-business-card·pcb/v1/ag_business_card.kicad_pcb

Pcb business card layout, top view — open source AVR/Arduino board by AG2048

About the Pcb business card

Pcb business card is an open source AVR/Arduino PCB design by AG2048, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 85.6 × 54 mm, with 116 components from 26 distinct parts.

Its main chip is the ATTINY84-20MUR, from the AVR/Arduino family. Other key parts include the ST25DV64K-IER6T3, BQ51013BRHLR and 4492. By type, the board carries 75 ICs, 11 capacitors, 11 resistors and 1 diode.

It belongs with the displays & leds designs in this gallery.

From the project

Business card made using functional PCBs

PCB manufactured by JLCPCB. Prototype boards assembled by JLCPCB SMT Assembly Service. Further component sourcing and assembly done by myself.

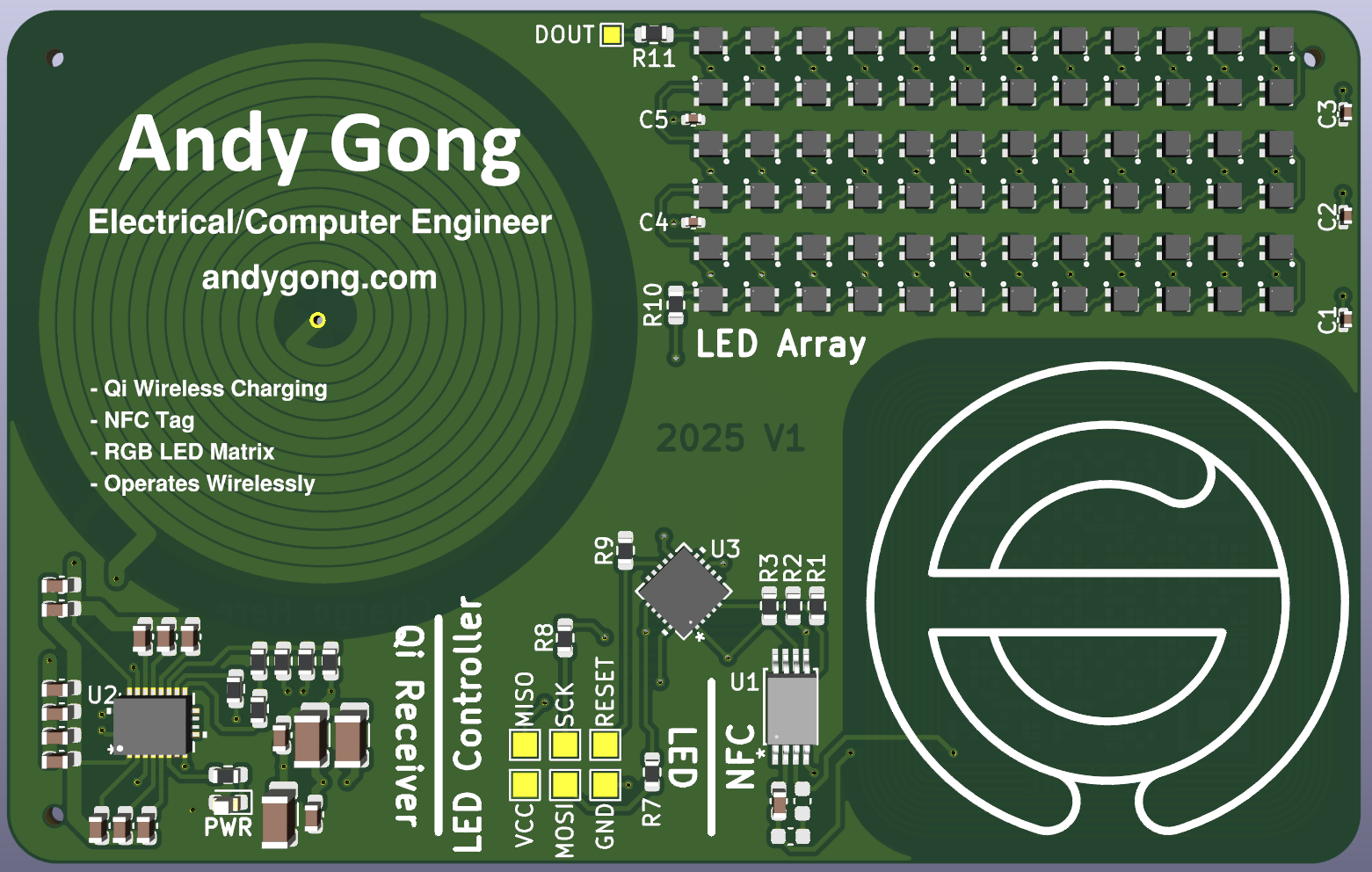

Pcb business card, from the project README
From the project README

Main components on the Pcb business card

ST25DV64K-IER6T3BQ51013BRHLRATTINY84-20MUR4492

Pcb business card bill of materials (BOM)

116 components, 26 distinct parts.

QtyPartRefs
1
ST25DV64K-IER6T3
U1
1
BQ51013BRHLR
U2
1
ATTINY84-20MUR
U3
72
4492
U4, U5, U6, U7, U8, U9, U10, U11 +64
2
0.01uF 50V
C_BOOT1, C_BOOT2
2
0.47uF 25V
C_CLAMP1, C_CLAMP2
2
22nF 50V
C_COMM1, C_COMM2
1
1nF
C_NFCPROT1
2
TBD
C_NFC_COIL1, C_NFC_COIL2
3
10uF 50V
C_OUT1, C_RECT1, C_RECT2
2
0.1uF 50V
C_OUT2, C_RECT3
1
220
R_FOD1
1
2k2
R_FOD2
1
20k
R_OS1
1
10k
R_TS1
1
2.1V
D1
5
100nF C307331
C1, C2, C3, C4, C5
2
100nF
C1_1, C1_2
1
10nF
C1_3
1
4.7nF
C1_4
Show 6 more
QtyPartRefs
1
2.2nF
C2_1
1
330pF
C2_2
4
10k
R1, R2, R3, R9
1
1k5
R4
2
33
R5, R6
4
470
R7, R8, R10, R11

Pcb business card design files

The KiCad project lives in the AG2048/pcb-business-card repository on GitHub; these links point at the commit this page was built from.

Pcb business card: common questions

What microcontroller does the Pcb business card use?

The Pcb business card is built around the ATTINY84-20MUR, from the AVR/Arduino family.

How big is the Pcb business card?

The Pcb business card measures 85.6 × 54 mm, has 2 copper layers and is 0.8 mm thick.

How many components are on the Pcb business card?

116 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pcb business card design files?

From the AG2048/pcb-business-card repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Pcb business card design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which AG2048 chose for the repository.

Can I test firmware for the Pcb business card without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
