Smart parking-System

ahmed-salama7·Smart-parking-System·hardware/Smart Parking System.kicad_pcb

Smart parking-System PCB layout, top view — open source AVR/Arduino board by ahmed-salama7

About the Smart parking-System PCB

Smart parking-System is an open source AVR/Arduino PCB design by ahmed-salama7, published on GitHub. It is a 2-layer board measuring 128.5 × 112 mm, with 8 components from 6 distinct parts.

Its main chip is the Arduino_UNO_R3, from the AVR/Arduino family. By type, the board carries 2 modules, 1 buzzer and 1 capacitor.

It belongs with the displays & leds, sensors and dev boards & breakouts designs in this gallery.

From the project

Conventional parking lots give drivers no live information about availability — you enter, search, and often find the lot full only after wasting time and fuel. This project demonstrates an automated, low-cost alternative: a system that tracks occupancy in real time, controls acc

Conventional parking lots give drivers no live information about availability — you enter, search, and often find the lot full only after wasting time and fuel. This project demonstrates an automated, low-cost alternative: a system that tracks occupancy in real time, controls access automatically, and shows drivers the number of free spaces at a glance.

- Two FC-51 IR sensors detect vehicles at the entrance and the exit (active-LOW digital output — LOW when a car breaks the beam). - The system counts cars in and out against a 4-space capacity — it tracks total occupancy rather than sensing…

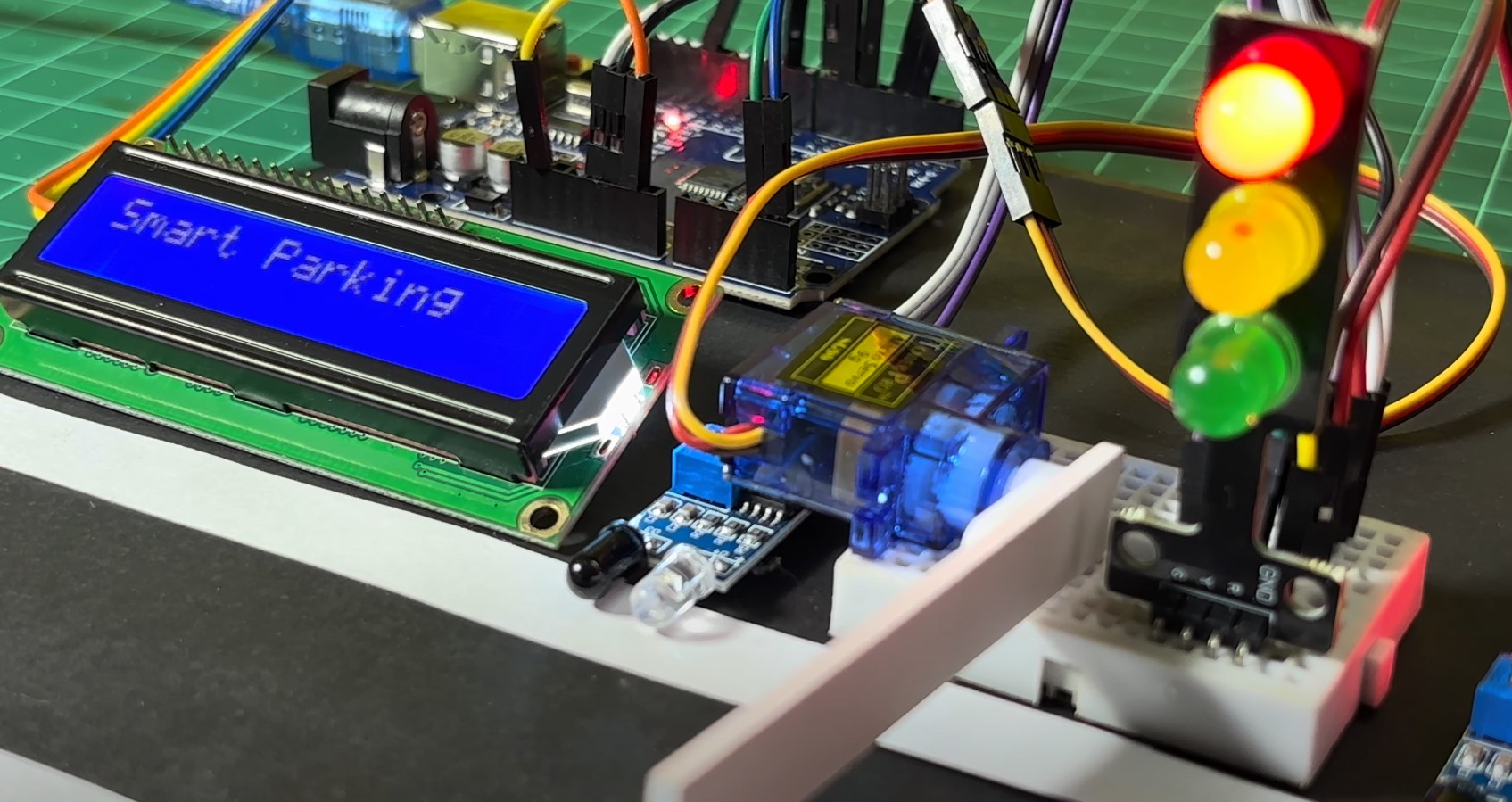

Smart parking-System, from the project README
From the project README

Main components on the Smart parking-System

Arduino_UNO_R3

Smart parking-System bill of materials (BOM)

8 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Arduino_UNO_R3
A1
1
Motor_Servo
M1
1
Buzzer
BZ1
2
Conn_01x03_Pin
Entrance_Sensor_Connector1, Exit_Sensor_Connector1
2
Conn_01x04_Pin
LCD_Panel_Connector1, Traaffic_Light_Connector1
1
C
C1

Smart parking-System design files

The KiCad project lives in the ahmed-salama7/Smart-parking-System repository on GitHub; these links point at the commit this page was built from.

Smart parking-System: common questions

What microcontroller does the Smart parking-System use?

The Smart parking-System is built around the Arduino_UNO_R3, from the AVR/Arduino family.

How big is the Smart parking-System PCB?

The Smart parking-System measures 128.5 × 112 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Smart parking-System?

8 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Smart parking-System design files?

From the ahmed-salama7/Smart-parking-System repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Smart parking-System design in my own project?

The repository has no license, so all rights stay with ahmed-salama7. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Smart parking-System without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
