MCU Data Logger

AhmedAbo-Eita·Hardware_PCB_Designs·MCU_Data_Logger/MCU_Data_Logger.kicad_pcb

MCU Data Logger PCB layout, top view — open source AVR/Arduino board by AhmedAbo-Eita

About the MCU Data Logger PCB

MCU Data Logger is an open source AVR/Arduino PCB design by AhmedAbo-Eita, published on GitHub. It is a 4-layer board measuring 48.5 × 33 mm, with 25 components from 16 distinct parts.

Its main chip is the ATMEGA328P-AU, from the AVR/Arduino family. Other key parts include the 24LC1025 and DS1337S_. By type, the board carries 7 resistors, 5 capacitors, 4 ICs, 4 connectors, 2 crystals and 2 diodes.

It belongs with the sensors designs in this gallery.

From the project

A collection of my hardware design projects including schematics, PCB layouts, simulations and design documentation for embedded systems and electronic circuits.

A custom-designed PCB created in KiCad featuring a microcontroller, Real-Time Clock (RTC), and dual EEPROM storage for high-reliability data logging.

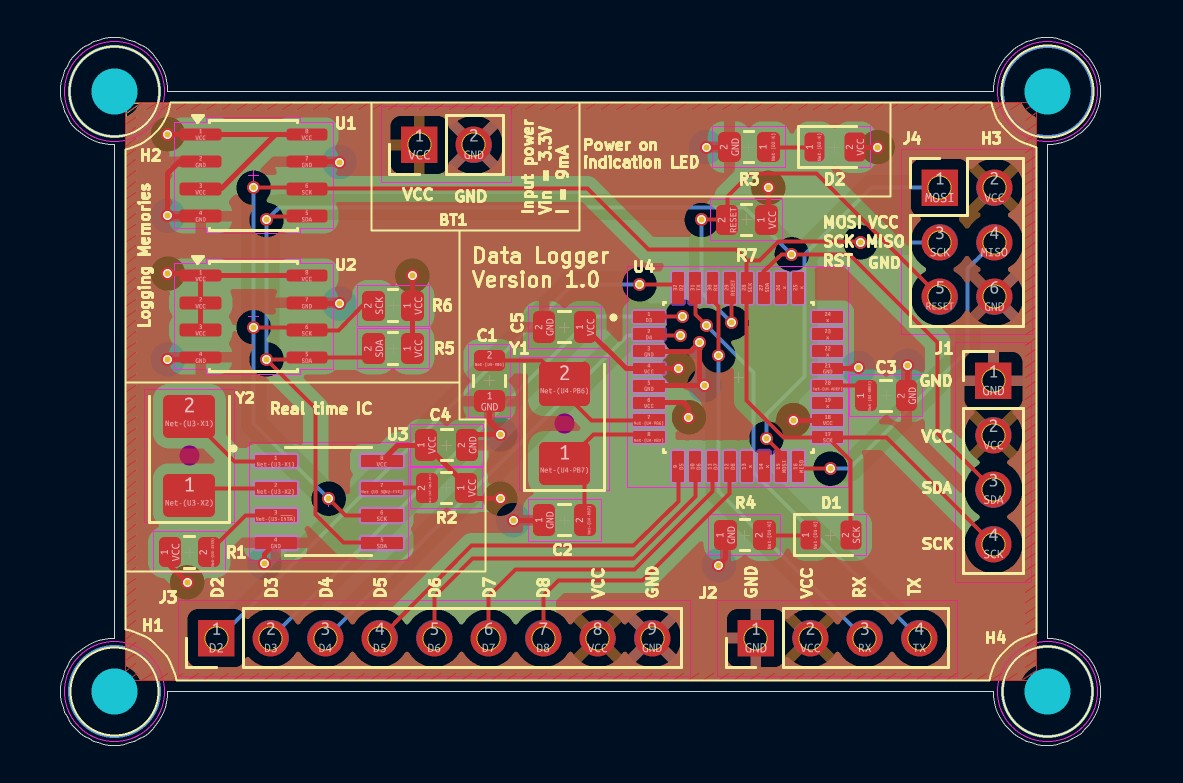

MCU Data Logger, from the project README
From the project README

Main components on the MCU Data Logger

24LC1025DS1337S_ATMEGA328P-AU

MCU Data Logger bill of materials (BOM)

25 components, 16 distinct parts.

QtyPartRefs
2
24LC1025
U1, U2
1
DS1337S_
U3
1
ATMEGA328P-AU
U4
1
16MHz
Y1
1
32.768KHz
Y2
2
Conn_01x04_Pin
J1, J2
1
Conn_01x09_Pin
J3
1
Conn_02x03_Odd_Even
J4
1
Battery
BT1
2
LED
D1, D2
2
22pF
C1, C2
2
0.1uF
C3, C4
1
100nF
C5
3
10K
R1, R2, R7
2
330
R3, R4
2
4.7K
R5, R6

MCU Data Logger design files

The KiCad project lives in the AhmedAbo-Eita/Hardware_PCB_Designs repository on GitHub; these links point at the commit this page was built from.

MCU Data Logger: common questions

What microcontroller does the MCU Data Logger use?

The MCU Data Logger is built around the ATMEGA328P-AU, from the AVR/Arduino family.

How big is the MCU Data Logger PCB?

The MCU Data Logger measures 48.5 × 33 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the MCU Data Logger?

25 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the MCU Data Logger design files?

From the AhmedAbo-Eita/Hardware_PCB_Designs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MCU Data Logger design in my own project?

The repository has no license, so all rights stay with AhmedAbo-Eita. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the MCU Data Logger without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
