DebugAdapter PCB layout, top view — open source board by akowalczyk18

About the DebugAdapter PCB

DebugAdapter is an open source PCB design by akowalczyk18, published on GitHub. It is a 2-layer board measuring 69.9 × 25.9 mm, with 6 components from 6 distinct parts.

By type, the board carries 2 connectors, 1 battery holder, 1 switch, 1 diode and 1 resistor.

From the project

pcb projects

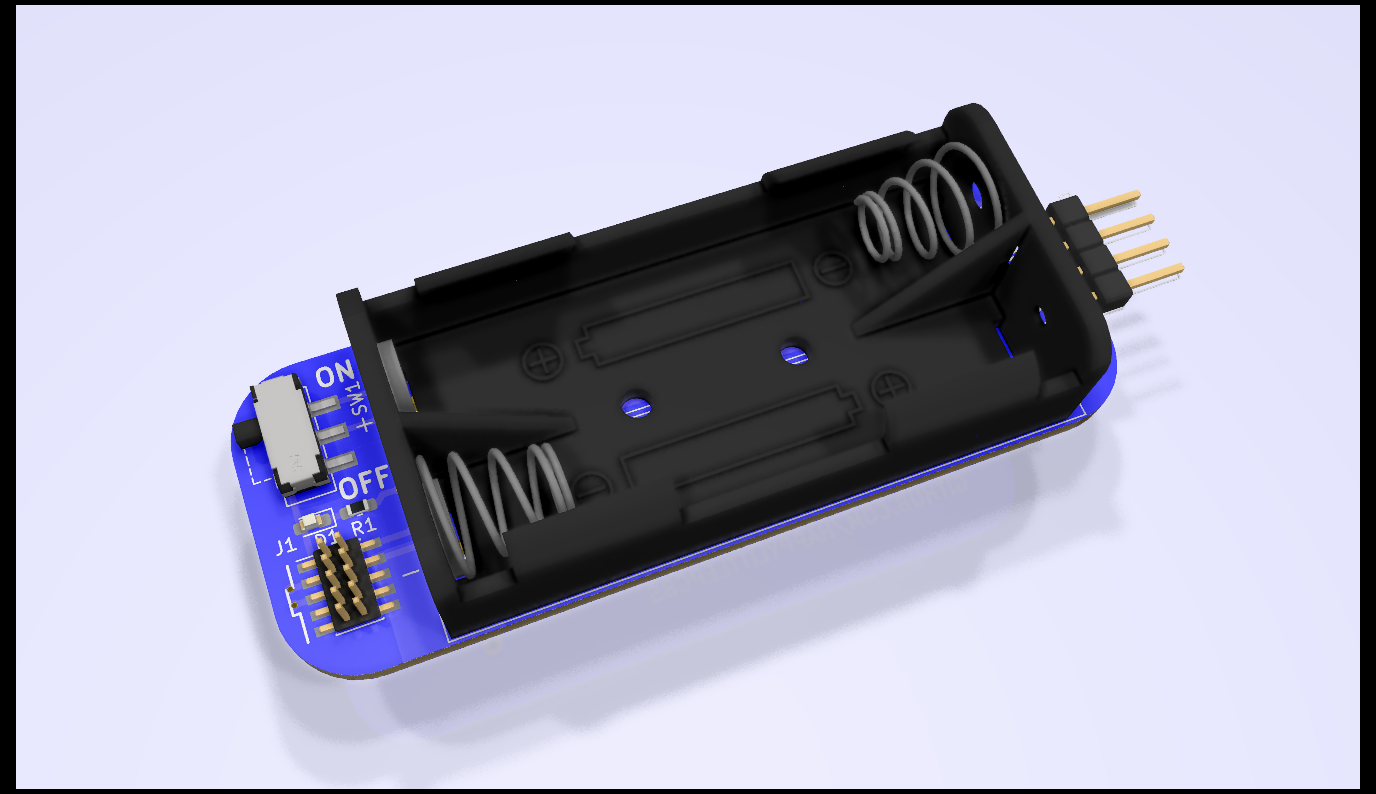

DebugAdapter, from the project README
From the project README

DebugAdapter bill of materials (BOM)

6 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Conn_02x05_Odd_Even
J1
1
Conn_01x04
J2
1
Battery
BT1
1
SW_SPDT
SW1
1
LED
D1
1
1.4k
R1

DebugAdapter design files

The KiCad project lives in the akowalczyk18/Kicad repository on GitHub; these links point at the commit this page was built from.
