EFMPod PCB layout, top view — open source Silicon Labs board by akowalczyk18

About the EFMPod PCB

EFMPod is an open source Silicon Labs PCB design by akowalczyk18, published on GitHub. It is a 2-layer board measuring 61 × 35.6 mm, with 47 components from 21 distinct parts.

Its main chip is the EFM32HG322F64, from the Silicon Labs family. Other key parts include the AZ1117CH-3_3TRG1. By type, the board carries 19 capacitors, 14 resistors, 3 connectors, 3 switches, 3 diodes and 2 ICs.

From the project

pcb projects

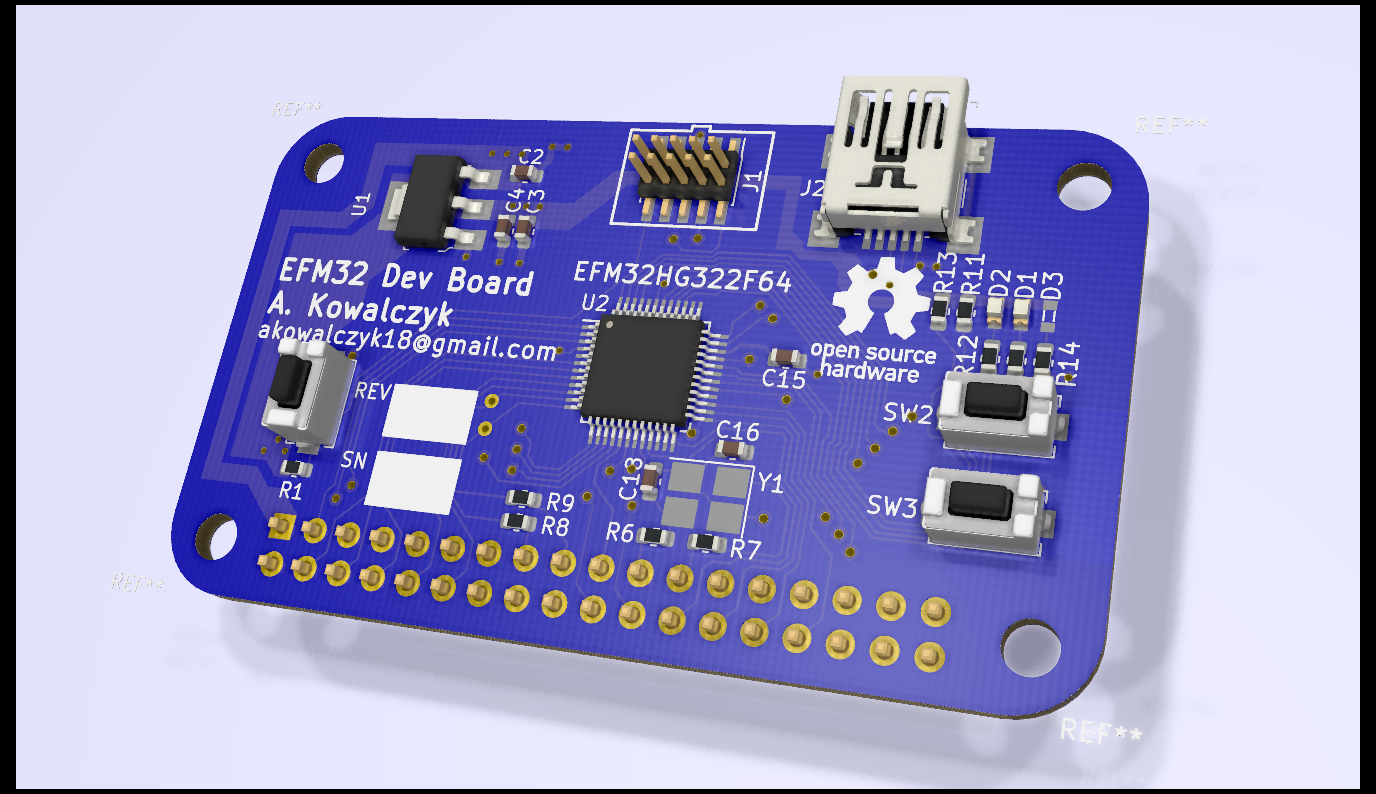

EFMPod, from the project README
From the project README

Main components on the EFMPod

AZ1117CH-3_3TRG1EFM32HG322F64

EFMPod bill of materials (BOM)

47 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AZ1117CH-3_3TRG1
U1
1
EFM32HG322F64
U2
1
Crystal_GND24
Y1
1
Crystal_GND3
Y2
1
Conn_02x05_Odd_Even
J1
1
UJ2-MBH-1-SMT-TR
J2
1
Conn_02x18_Odd_Even
J3
3
SW_Push
SW1, SW2, SW3
3
2.1V
D1, D2, D3
1
Ferrite_Bead
L1
5
0.1uF
C1, C6, C7, C8, C10
5
10uF
C2, C3, C4, C5, C9
1
4.7uF
C11
2
0.01uF
C12, C13
2
1uF
C14, C15
4
22pF
C16, C17, C18, C19
1
100k
R1
4
100
R2, R10, R12, R14
2
10
R3, R4
5
0
R5, R6, R7, R8, R9
Show 1 more
QtyPartRefs
2
47k
R11, R13

EFMPod design files

The KiCad project lives in the akowalczyk18/Kicad repository on GitHub; these links point at the commit this page was built from.

EFMPod: common questions

What microcontroller does the EFMPod use?

The EFMPod is built around the EFM32HG322F64, from the Silicon Labs family.

How big is the EFMPod PCB?

The EFMPod measures 61 × 35.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the EFMPod?

47 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the EFMPod design files?

From the akowalczyk18/Kicad repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the EFMPod design in my own project?

The repository has no license, so all rights stay with akowalczyk18. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the EFMPod without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Silicon Labs firmware against it before you order a PCB.
