MotorPod Mini PCB layout, top view — open source board by akowalczyk18

About the MotorPod Mini PCB

MotorPod Mini is an open source PCB design by akowalczyk18, published on GitHub. It is a 2-layer board measuring 19.1 × 44.5 mm, with 8 components from 7 distinct parts.

By type, the board carries 4 connectors, 2 resistors, 1 transistor and 1 diode.

From the project

pcb projects

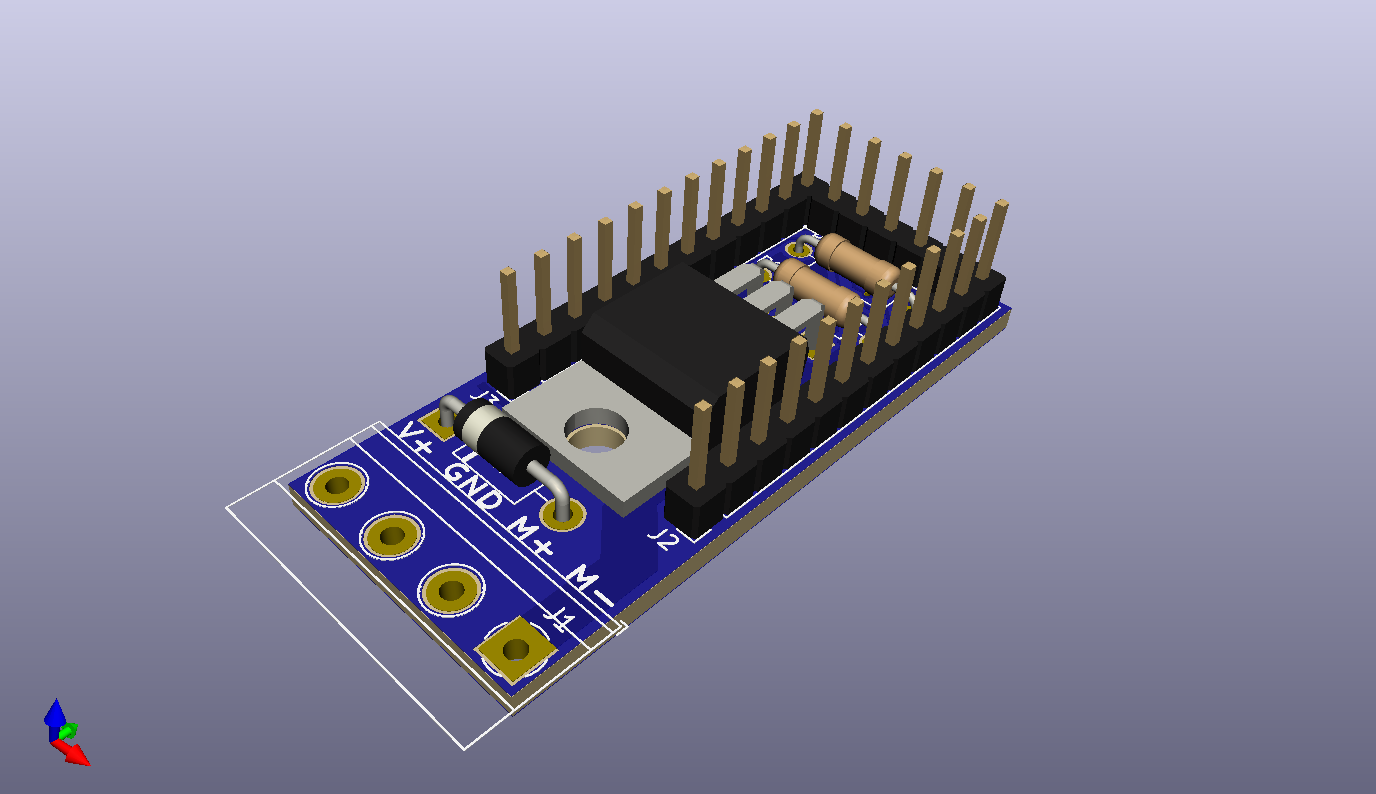

MotorPod Mini, from the project README
From the project README

MotorPod Mini bill of materials (BOM)

8 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TIP120
Q1
1
Conn_01x04
J1
2
Conn_01x12
J2, J3
1
Conn_01x05
J4
1
1N4007
D1
1
10k
R1
1
150
R2

MotorPod Mini design files

The KiCad project lives in the akowalczyk18/Kicad repository on GitHub; these links point at the commit this page was built from.

MotorPod Mini: common questions

How big is the MotorPod Mini PCB?

The MotorPod Mini measures 19.1 × 44.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MotorPod Mini?

8 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MotorPod Mini design files?

From the akowalczyk18/Kicad repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the MotorPod Mini design in my own project?

The repository has no license, so all rights stay with akowalczyk18. Use it as a reference, and ask the author before reusing the design.
