STMPod PCB layout, top view — open source STM32 board by akowalczyk18

About the STMPod PCB

STMPod is an open source STM32 PCB design by akowalczyk18, published on GitHub. It is a 2-layer board measuring 19.6 × 32.3 mm, with 18 components from 12 distinct parts.

Its main chip is the STM32F030F4P6TR, from the STM32 family. Other key parts include the AZ1117EH-3.3TRG1. By type, the board carries 4 connectors, 4 capacitors, 4 resistors, 2 ICs, 2 diodes and 1 crystal.

From the project

pcb projects

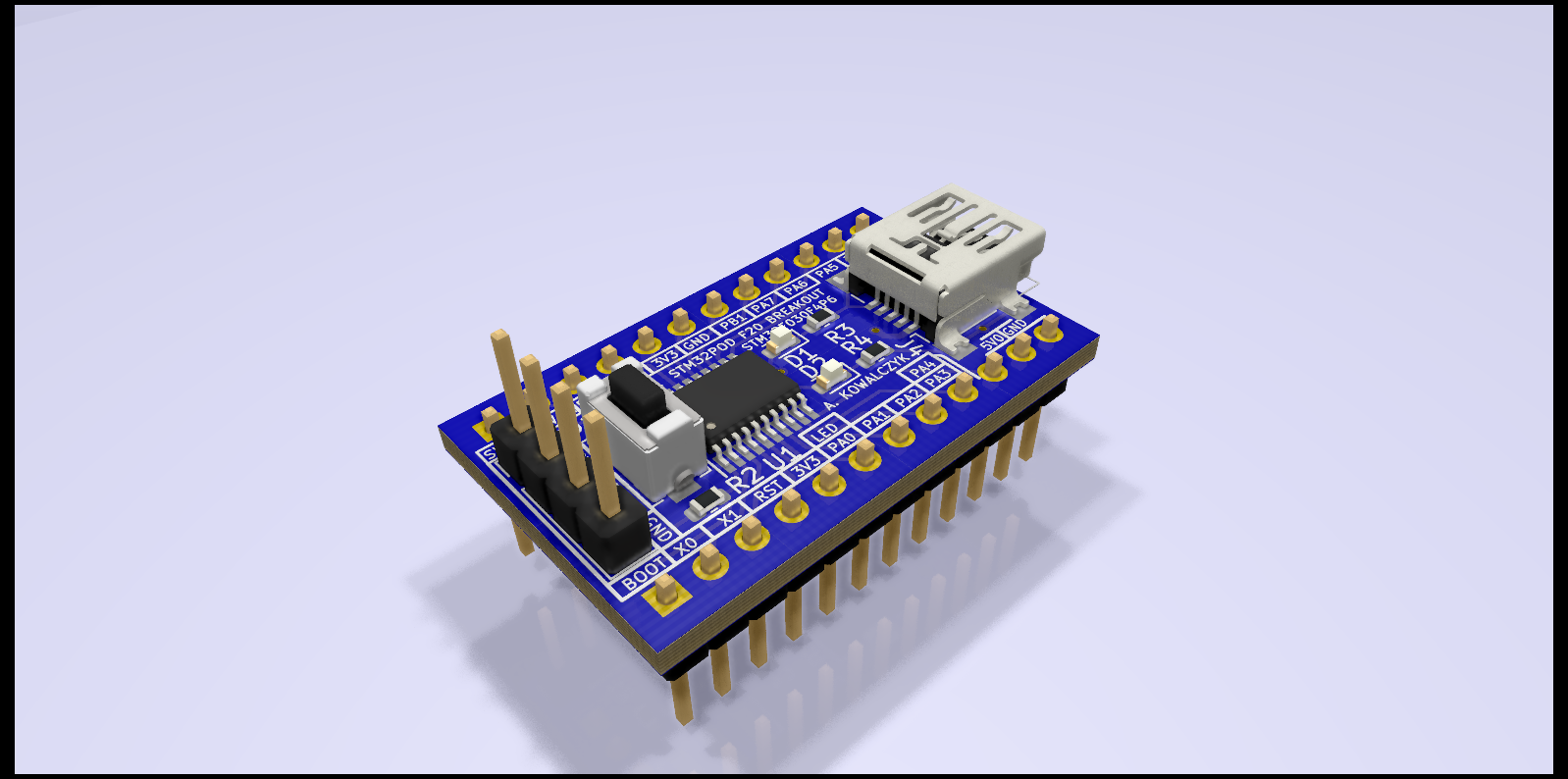

STMPod, from the project README
From the project README

Main components on the STMPod

STM32F030F4P6TRAZ1117EH-3.3TRG1

STMPod bill of materials (BOM)

18 components, 12 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F030F4P6TR
STM32F030F4Px
U1
1
AZ1117EH-3.3TRG1
AZ1117-3.3
U2
1
CSTCC3M68G53-R0
Resonator
Y1
1
Conn_01x04_Male
J1
2
Conn_01x12_Male
J2, J3
1
UJ2-MBH-1-SMT
USB_B_Mini
J4
1
EVQ-PE105K
SW_SPST
SW1
2
LTST-C191KSKT
LED AMBER 2.9V 5mA
D1, D2
2
1.0uF
C1, C2
2
0.1uF
C3, C4
2
ERJ-3EKF1002V
10k
R1, R2
2
ERJ-3EKF2200V
220
R3, R4

STMPod design files

The KiCad project lives in the akowalczyk18/Kicad repository on GitHub; these links point at the commit this page was built from.

STMPod: common questions

What microcontroller does the STMPod use?

The STMPod is built around the STM32F030F4P6TR, from the STM32 family.

How big is the STMPod PCB?

The STMPod measures 19.6 × 32.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the STMPod?

18 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the STMPod design files?

From the akowalczyk18/Kicad repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the STMPod design in my own project?

The repository has no license, so all rights stay with akowalczyk18. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the STMPod without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
