1-Hour-Board layout, top view — open source TI MSP430/CC board by akowalczyk18

About the 1-Hour-Board

1-Hour-Board is an open source TI MSP430/CC PCB design by akowalczyk18, published on GitHub. It is a 2-layer board measuring 24.1 × 43.2 mm, with 15 components from 11 distinct parts.

Its main chip is the MSP430G2533IPW20, from the TI MSP430/CC family. Other key parts include the AMS1117-3.3. By type, the board carries 4 capacitors, 3 connectors, 3 resistors, 2 ICs, 2 diodes and 1 switch.

From the project

pcb projects

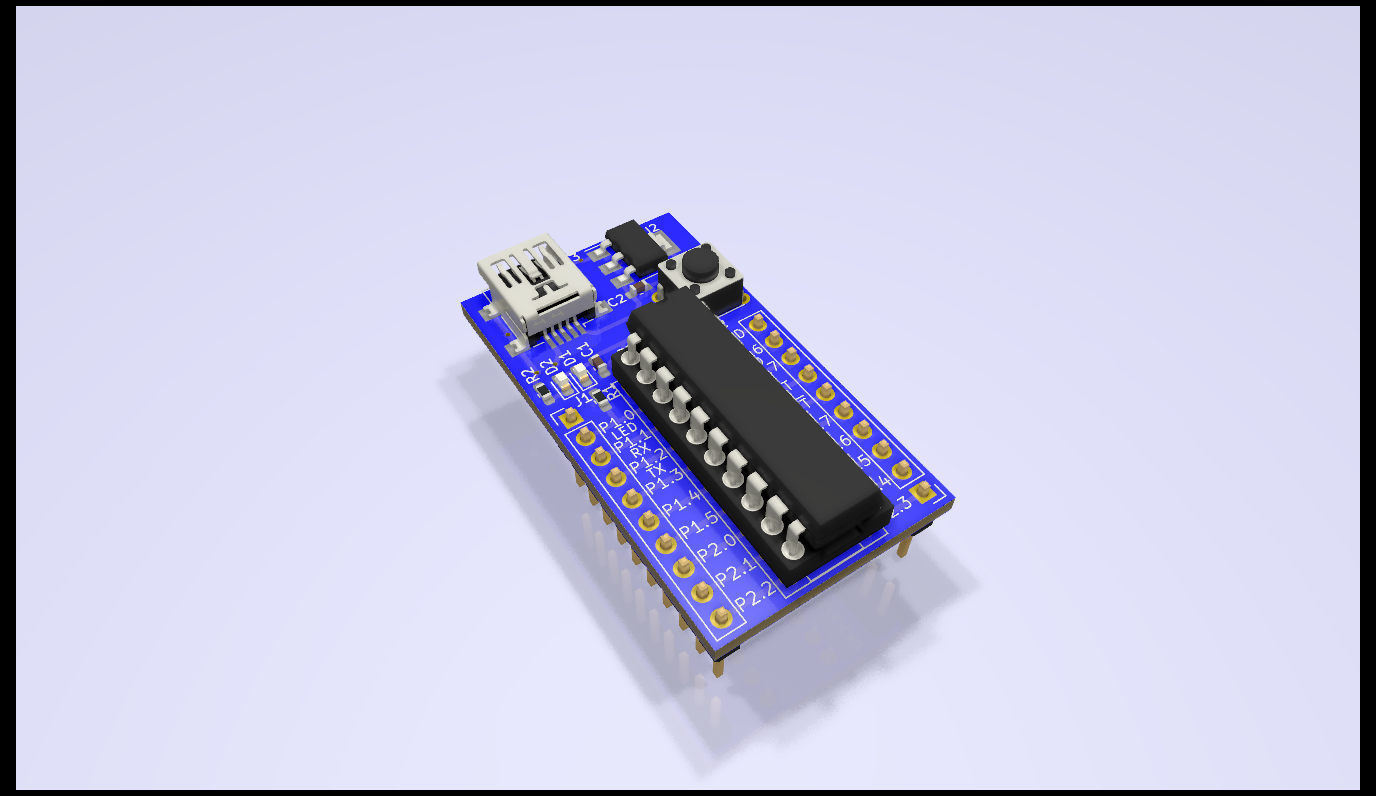

1-Hour-Board, from the project README
From the project README

Main components on the 1-Hour-Board

MSP430G2533IPW20AMS1117-3.3

1-Hour-Board bill of materials (BOM)

15 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MSP430G2533IPW20
U1
1
AMS1117-3.3
U2
2
Conn_01x10
J1, J2
1
USB_B_Mini
J3
1
SW_Push
SW1
2
LED
D1, D2
1
1uF
C1
2
10uF
C2, C3
1
10nF
C4
2
R_US
R1, R2
1
47k
R3

1-Hour-Board design files

The KiCad project lives in the akowalczyk18/Kicad repository on GitHub; these links point at the commit this page was built from.

1-Hour-Board: common questions

What microcontroller does the 1-Hour-Board use?

The 1-Hour-Board is built around the MSP430G2533IPW20, from the TI MSP430/CC family.

How big is the 1-Hour-Board?

The 1-Hour-Board measures 24.1 × 43.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 1-Hour-Board?

15 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the 1-Hour-Board design files?

From the akowalczyk18/Kicad repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the 1-Hour-Board design in my own project?

The repository has no license, so all rights stay with akowalczyk18. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 1-Hour-Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug TI MSP430/CC firmware against it before you order a PCB.
