Win split left

alexcamlo·winsplit·pcb/left/Win-split-left.kicad_pcb

Win split left PCB layout, top view — open source RP2040/RP2350 board by alexcamlo
Simulate this board

About the Win split left PCB

Win split left is an open source RP2040/RP2350 PCB design by alexcamlo, published on GitHub. It is a 2-layer board measuring 213.2 × 120.4 mm, with 155 components from 18 distinct parts.

Its main chip is the RP2040_ProMicro, from the RP2040/RP2350 family. Other key parts include the 74AHCT1G125. By type, the board carries 35 capacitors, 34 LEDs, 34 diodes, 2 ICs, 2 switches and 2 resistors.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Inspired by the Boardrun Bizarre and Red herring. I wanted to be able to use a normal keyset, so no full ortho, but split.

Inspired by the Boardrun Bizarre and Red herring. I wanted to be able to use a normal keyset, so no full ortho, but split.

This is my first designed keyboard from the grounds up. I'm not responsible for any damage caused by using this keyboard or any production of this keyboard that doesn't work.

- 2x RP2040 Pro Micro. - 70x pin headers - 1x Skyloong Rotary Encoder. - 2x TRRS Connector. - 2x SMD Buttons. - 2x 128x32 OLED panels. - 73x Kailh hotswap sockets. - 73x SK6812MINI-E leds. - 4x 2u Stabilizers. - 16x M2 6mm screws.

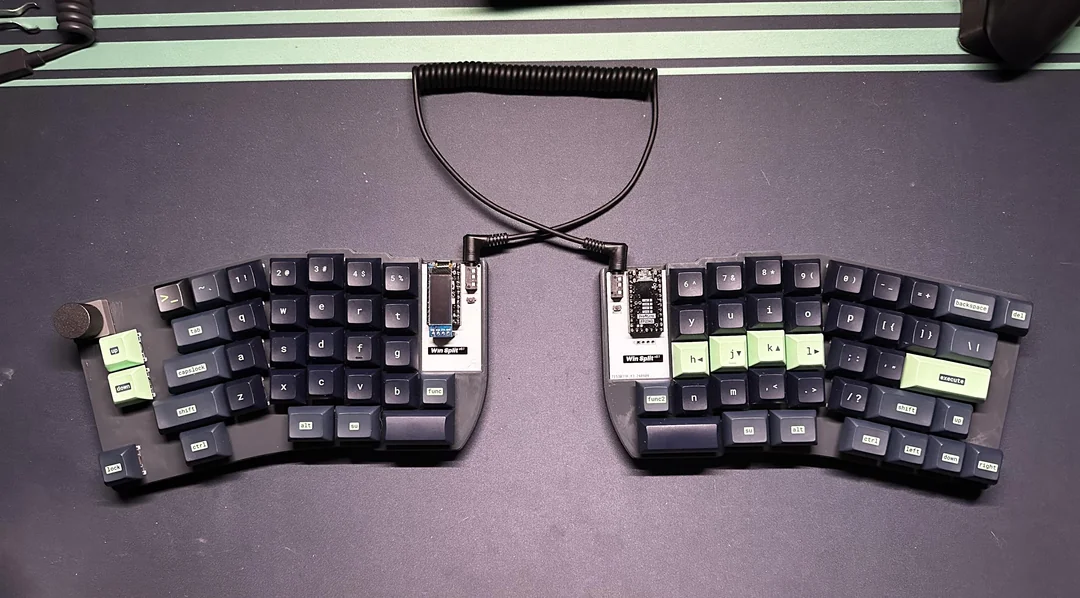

Win split left, from the project README
From the project README

Main components on the Win split left

RP2040_ProMicro74AHCT1G125

Win split left bill of materials (BOM)

155 components, 18 distinct parts.

QtyPartRefs
1
RP2040_ProMicro
U1
1
74AHCT1G125
U3
1
Q_PMOS_GSD
Q1
1
Conn_01x04_Socket
J1
8
MountingHole_Pad
H1, H2, H3, H4, H5, H6, H7, H8
29
MX_SW_HS
MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 +21
1
MX_SW_HS
MX9
1
MX_SW_HS
MX16
3
MX_SW_HS
MX30, MX31, MX32
1
Switch
Reset1
2
MX_stab
S23, S33
1
TRRS
TRRS1
20
MX_SK6812MINI-E
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +12
14
MX_SK6812MINI-E
LED9, LED10, LED11, LED12, LED13, LED14, LED15, LED23 +6
34
Diode
D1, D2, D3, D4, D5, D6, D7, D8 +26
35
100nF
C1, C2, C3, C4, C5, C6, C7, C8 +27
1
1K
R1
1
4.7K
R2

Win split left design files

The KiCad project lives in the alexcamlo/winsplit repository on GitHub; these links point at the commit this page was built from.

Win split left: common questions

What microcontroller does the Win split left use?

The Win split left is built around the RP2040_ProMicro, from the RP2040/RP2350 family.

How big is the Win split left PCB?

The Win split left measures 213.2 × 120.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Win split left?

155 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the Win split left design files?

From the alexcamlo/winsplit repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Win split left design in my own project?

The repository has no license, so all rights stay with alexcamlo. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Win split left without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
