Windy
About the Windy PCB
Windy is an open source PCB design by alexzilligmm, published on GitHub under the MIT license. It is a 2-layer board measuring 60 × 60 mm, with 14 components from 5 distinct parts.
Other key parts include the module_CJMCUCCS811. By type, the board carries 7 resistors, 4 diodes, 1 IC, 1 module and 1 switch.
It belongs with the sensors designs in this gallery.
From the project
This folder contains all you need to build our air quality device!

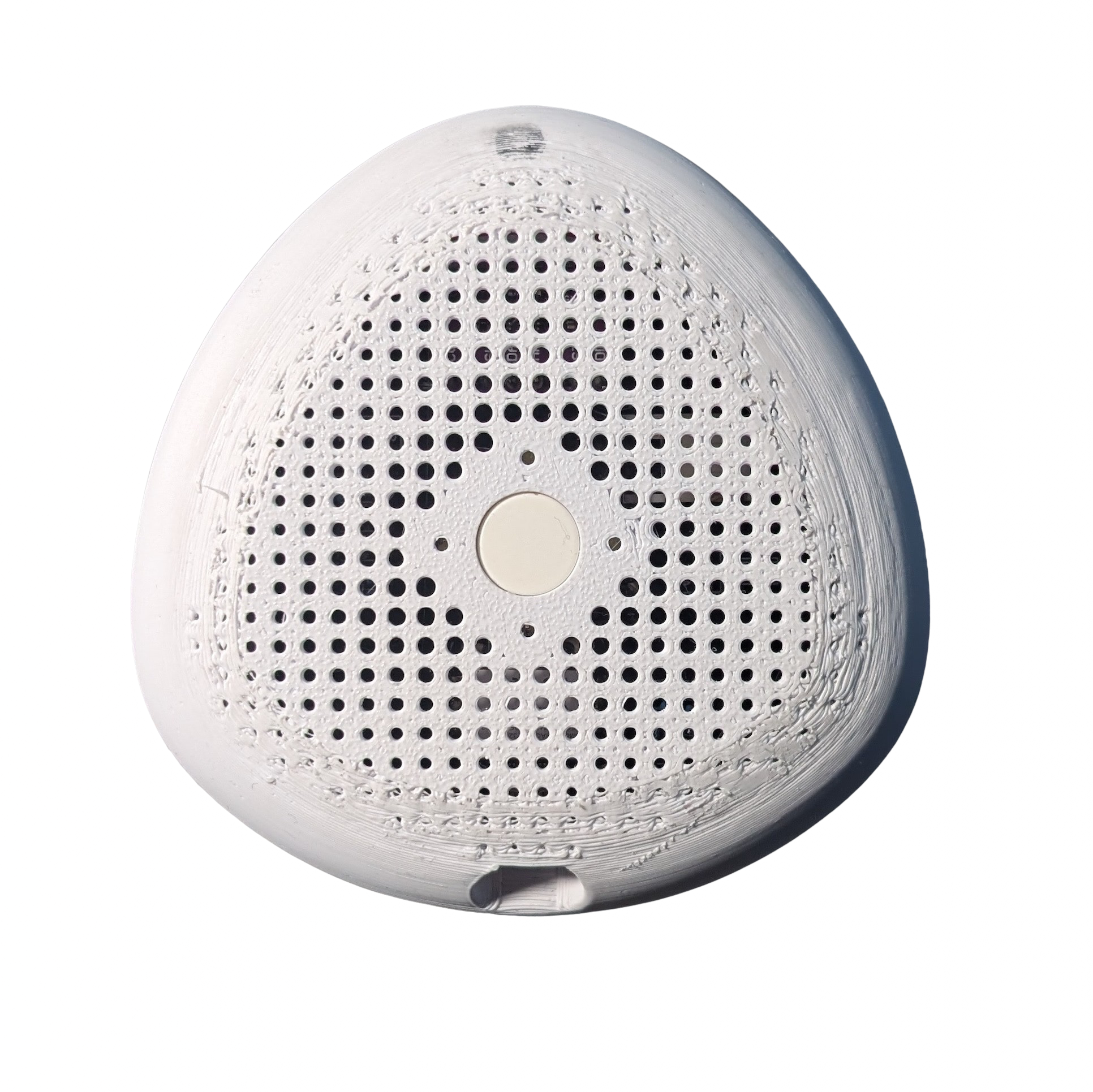

This folder contains everything you need to produce your own Windy, our smart air quality monitor. The project includes:
⚙️ The physical device with PCB and case
📊 Measures CO2 and TVOC on demand via the app or the device itself
📉 Provides a detailed history and trend of past measures
💡 Provides tips to improve air quality based on your situation
Unfortunately, not all features we intended to implement function correctly. We list here all known issues: - The device collects data only while it is connected to the phone. - The application experiences connection issues in everyday use…
Main components on the Windy
Windy bill of materials (BOM)
14 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | module_CJMCUCCS811 | module_adxl345 | U1 |
| 1 | XIAO Connector/DNP | XIAO-Generic-Thruhole-14P-2.54-21X17.8MM | M1 |
| 1 | SW_Push_Open_Dual | SW_PUSH-12mm_Wuerth-430476085716 | SW1 |
| 4 | LED | LED_D1.8mm_W3.3mm_H2.4mm | D1, D2, D3, D4 |
| 7 | R | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1, R2, R3, R4, R5, R6, R7 |
Windy design files
The KiCad project lives in the alexzilligmm/windy repository on GitHub; these links point at the commit this page was built from.
Windy: common questions
How big is the Windy PCB?
The Windy measures 60 × 60 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Windy?
14 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Windy design files?
From the alexzilligmm/windy repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Windy design in my own project?
Yes, under the terms of its MIT license, which alexzilligmm chose for the repository.
