Allen wireless PCB layout, top view — open source board by allenyin
Simulate this board

About the Allen wireless PCB

Allen wireless is an open source PCB design by allenyin, published on GitHub. It is a board measuring 55.6 × 33 mm, with 113 components from 42 distinct parts.

Other key parts include the OMNETICS-36-DUAL, RHD2132, - +, TPS62410DRCR and ABM10XTAL. By type, the board carries 45 capacitors, 43 resistors, 18 ICs, 6 inductors and 1 diode.

It belongs with the rf & radio and iot & wireless designs in this gallery.

From the project

Wireless recording system, forked from Tim Hanson's myopen project.

Overview Hardware Steps to convert old KiCad design files Bridge Headstages Firmware Dependency Bridge RHA-headstage RHD-headstage Firmware versions JTAG testing Utility Programs Client Software Dependency Compilation Running gtkclient RHA-headstage gtkclient RHD-headstage gtkclient Spike sorting Saving recordings Test recording Configuration files TODO/possible improvements * Quick Start

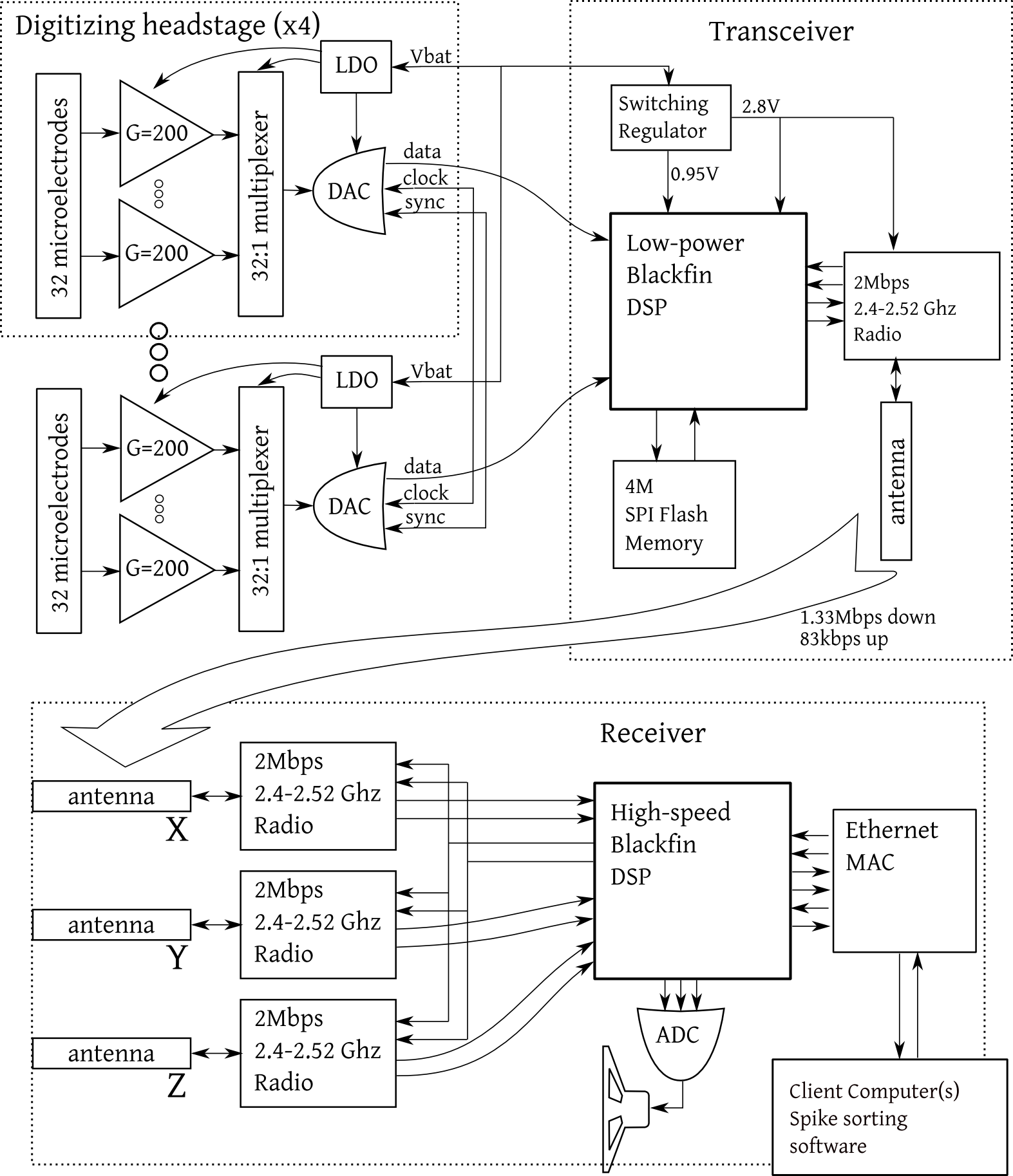

Allen wireless, from the project README
From the project README

Main components on the Allen wireless

Allen wireless bill of materials (BOM)

113 components, 42 distinct parts — part numbers from the project's BOM.

QtyPartRefs
4
OMNETICS-36-DUAL
OMNETICS_A79025
U1, U2, U5, U6
4
RHD2132
U3, U4, U7, U8
1
- +
U9
1
TPS62410DRCR
TPS62410
U10
1
ABM10XTAL
U11
1
BF532-160
U12
1
NRF24L01
U13
1
MAX6711T
U14
1
SST25VF040B-80-4I-SAE
SST25VF040B
U15
2
OMNETICS-9X100
9x100
U16, U18
1
ANTENNA
U17
1
LED
D1
1
2.2UH
2.2uH
L1
1
2.2UF
2.2uH
L2
1
8.2NH
8.2nH
L3
1
3.9NH
3.9nH
L4
1
2.7NH
2.7nH
L5
1
Ferrite
L6
6
10NF
10nF
C1, C2, C7, C8, C31, C42
8
100NF
100nF
C3, C4, C5, C6, C9, C10, C11, C12
Show 22 more
QtyPartRefs
6
10UF
10uF
C13, C15, C19, C20, C22, C23
10
0.1UF
0.1uF
C14, C25, C28, C30, C34, C36, C40, C41 +2
1
7PF
7pF
C16
2
4.7PF
4.7pF
C17, C33
1
33PF
33pF
C18
1
47NF
47nF
C21
3
1NF
1nF
C24, C26, C29
2
1UF
1uF
C27, C37
1
0.1uF
C32
1
0.1UF
1uF
C35
1
2.2NF
2.2nF
C38
1
1.5PF
1.5pF
C39
1
1PF
1pF
C43
16
0
R1, R2, R3, R4, R5, R6, R7, R8 +8
9
22K
R17, R18, R23, R24, R25, R26, R27, R28 +1
1
200K
R19
1
909K
909k
R20
1
165K
R21
1
270K
R22
1
200K
200
R29
1
200
R30
12
0
R32, R33, R34, R35, R36, R37, R38, R39 +4

Allen wireless design files

The KiCad project lives in the allenyin/allen_wireless repository on GitHub; these links point at the commit this page was built from.

Allen wireless: common questions

How big is the Allen wireless PCB?

The Allen wireless measures 55.6 × 33 mm and is 0.6858 mm thick.

How many components are on the Allen wireless?

113 components, from 42 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Allen wireless design files?

From the allenyin/allen_wireless repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Allen wireless design in my own project?

The repository has no license, so all rights stay with allenyin. Use it as a reference, and ask the author before reusing the design.
