AmethystHackpad PCB layout, top view — open source RP2040/RP2350 board by amethyst-2

About the AmethystHackpad PCB

AmethystHackpad is an open source RP2040/RP2350 PCB design by amethyst-2, published on GitHub. It is a 2-layer board measuring 80.8 × 99.8 mm, with 50 components from 5 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 32 diodes, 16 switches, 1 IC and 1 connector.

It belongs with the displays & leds designs in this gallery.

From the project

Bottom layer :- For the pcb to rest on i have added a small ridge ( with chamfer on the below )

Bottom layer :- For the pcb to rest on i have added a small ridge ( with chamfer on the below )

Now let's get to the electronics part! Schematics ( Made in KiCad ) :-

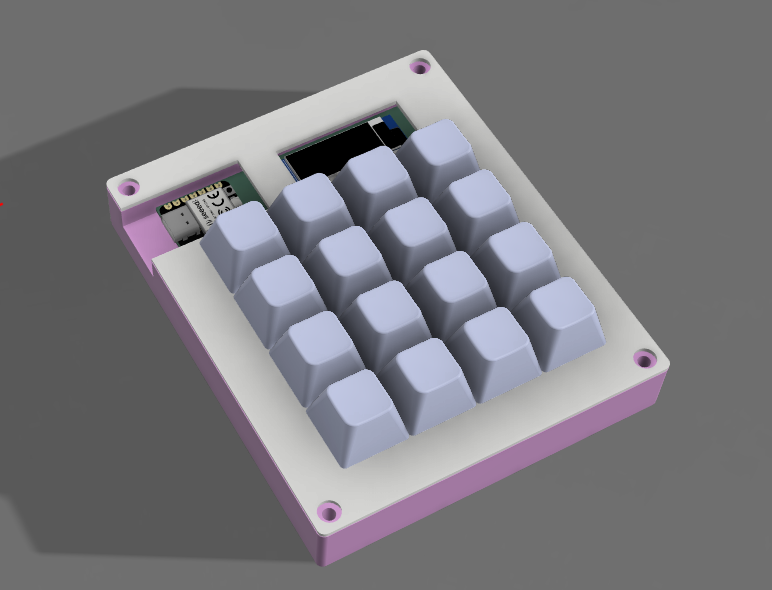

AmethystHackpad, from the project README
From the project README

Main components on the AmethystHackpad

XIAO-RP2040-DIP

AmethystHackpad bill of materials (BOM)

50 components, 5 distinct parts.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
1
Conn_01x04
J1
16
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +8
16
D
D1, D2, D3, D4, D5, D6, D7, D8 +8
16
SK6812MINI-E
D17, D18, D19, D20, D21, D22, D23, D24 +8

AmethystHackpad design files

The KiCad project lives in the amethyst-2/AmethystHackpad repository on GitHub; these links point at the commit this page was built from.

AmethystHackpad: common questions

What microcontroller does the AmethystHackpad use?

The AmethystHackpad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the AmethystHackpad PCB?

The AmethystHackpad measures 80.8 × 99.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AmethystHackpad?

50 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the AmethystHackpad design files?

From the amethyst-2/AmethystHackpad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the AmethystHackpad design in my own project?

The repository has no license, so all rights stay with amethyst-2. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the AmethystHackpad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
