About the PROJECT-CLICK PCB
PROJECT-CLICK is an open source RP2040/RP2350 PCB design by amionearth, published on GitHub. It is a 2-layer board measuring 100 × 80 mm, with 30 components from 6 distinct parts.
Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 21 diodes, 7 switches, 1 IC and 1 connector.
It belongs with the keyboards and displays & leds designs in this gallery.
From the project

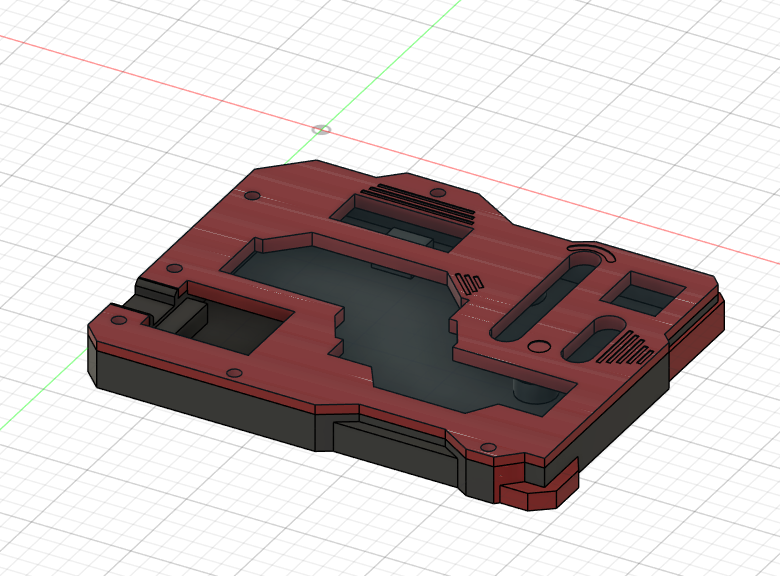

PROJECT-CLICK is a 3×2 matrix macropad with a cyberpunk-inspired design, built around the XIAO RP2040. I tried to make it look good as posible and it was my first build so it will have its own problems (the case is tight fit)
PROJECT-CLICK is a 3×2 matrix macropad with a cyberpunk-inspired design, built around the XIAO RP2040. I tried to make it look good as posible and it was my first build so it will have its own problems (the case is tight fit)
Video ## Features 3x2 matrix multilayered keys knob for volume display
6-key matrix with individual diodes OLED display connection Rotary encoder RP2040-based controller

Main components on the PROJECT-CLICK
PROJECT-CLICK bill of materials (BOM)
30 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XIAO-RP2040-DIP | XIAO-RP2040-DIP | U1 |
| 1 | Conn_01x04 | OLED_128x32 | J1 |
| 6 | SW_Push | SW_Cherry_MX_1.00u_PCB | SW1, SW2, SW3, SW4, SW5, SW6 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW8 |
| 15 | SK6812MINI | LED_SK6812MINI_PLCC4_3.5x3.5mm_P1.75mm | D1, D2, D3, D4, D5, D6, D7, D8 +7 |
| 6 | 1N4148WT | Diode_DO-35 | D17, D18, D19, D20, D21, D22 |
PROJECT-CLICK design files
The KiCad project lives in the amionearth/PROJECT-CLICK repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/keypad_pcb.kicad_pcb
- SchematicPCB/keypad_pcb.kicad_sch
PROJECT-CLICK: common questions
What microcontroller does the PROJECT-CLICK use?
The PROJECT-CLICK is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.
How big is the PROJECT-CLICK PCB?
The PROJECT-CLICK measures 100 × 80 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PROJECT-CLICK?
30 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the PROJECT-CLICK design files?
From the amionearth/PROJECT-CLICK repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PROJECT-CLICK design in my own project?
The repository has no license, so all rights stay with amionearth. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the PROJECT-CLICK without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
