Input Panel Support

amos42·pcb_joystick_input·arcade_input_panel_support/arcade_input_panel_support.kicad_pcb

Input Panel Support PCB layout, top view — open source board by amos42
Simulate this board

About the Input Panel Support PCB

Input Panel Support is an open source PCB design by amos42, published on GitHub. It is a 2-layer board measuring 117.4 × 103.8 mm, with 14 components from 5 distinct parts.

From the project

Joytsick Input Board for Raspberry Pie (GPIO, 74HC165)

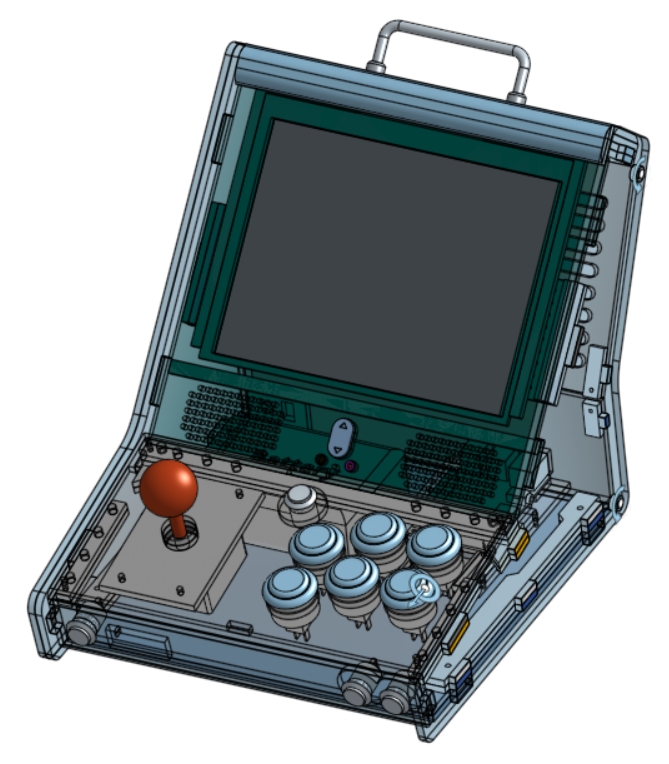

Input Panel Support, from the project README
From the project README

Input Panel Support bill of materials (BOM)

14 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Conn_01x15
J1
1
Conn_01x14
J2
2
Conn_01x15
J3, J4
1
Conn_01x05
J5
9
Conn_01x02
J6, J7, J8, J9, J10, J11, J12, J13 +1

Input Panel Support design files

The KiCad project lives in the amos42/pcb_joystick_input repository on GitHub; these links point at the commit this page was built from.

Input Panel Support: common questions

How big is the Input Panel Support PCB?

The Input Panel Support measures 117.4 × 103.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Input Panel Support?

14 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Input Panel Support design files?

From the amos42/pcb_joystick_input repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Input Panel Support design in my own project?

The repository has no license, so all rights stay with amos42. Use it as a reference, and ask the author before reusing the design.
