Joystick Input

amos42·pcb_joystick_input·joystick_74hc165_input_smd/joystick_74hc165_input_smd.kicad_pcb

Joystick Input PCB layout, top view — open source board by amos42
Simulate this board

About the Joystick Input PCB

Joystick Input is an open source PCB design by amos42, published on GitHub. It is a 2-layer board measuring 53.3 × 29.5 mm, with 19 components from 8 distinct parts.

By type, the board carries 6 resistors, 4 capacitors and 2 connectors.

From the project

Joytsick Input Board for Raspberry Pie (GPIO, 74HC165)

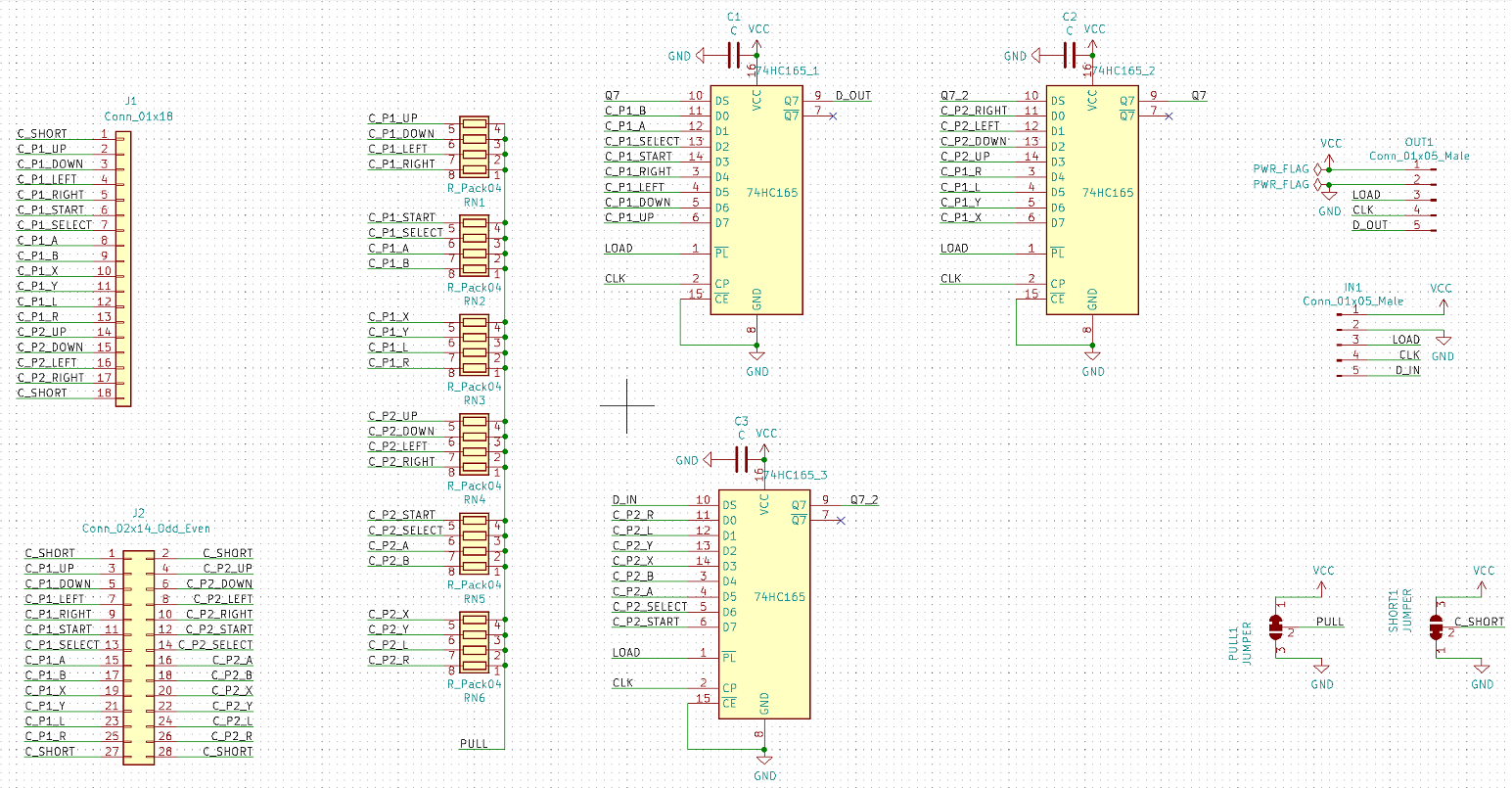

Joystick Input, from the project README
From the project README

Joystick Input bill of materials (BOM)

19 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Conn_01x18
J1
1
Conn_02x14_Odd_Even
J2
3
74HC165
74HC165_1, 74HC165_2, 74HC165_3
2
Conn_01x05_Male
IN1, OUT1
2
JUMPER
PULL1, SHORT1
3
100NF
100nF
C1, C2, C3
1
22NF
42nF
C4
6
10K
RN1, RN2, RN3, RN4, RN5, RN6

Joystick Input design files

The KiCad project lives in the amos42/pcb_joystick_input repository on GitHub; these links point at the commit this page was built from.

Joystick Input: common questions

How big is the Joystick Input PCB?

The Joystick Input measures 53.3 × 29.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Joystick Input?

19 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Joystick Input design files?

From the amos42/pcb_joystick_input repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Joystick Input design in my own project?

The repository has no license, so all rights stay with amos42. Use it as a reference, and ask the author before reusing the design.
