Joystick Input (JST Ver)

amos42·pcb_joystick_input·joystick_74hc165_input_jst/joystick_74hc165_input_jst.kicad_pcb

Joystick Input (JST Ver) PCB layout, top view — open source board by amos42
Simulate this board

About the Joystick Input (JST Ver) PCB

Joystick Input (JST Ver) is an open source PCB design by amos42, published on GitHub. It is a 2-layer board measuring 71.4 × 38.9 mm, with 38 components from 8 distinct parts.

By type, the board carries 18 connectors, 6 jumpers, 6 resistors and 3 capacitors.

From the project

Joytsick Input Board for Raspberry Pie (GPIO, 74HC165)

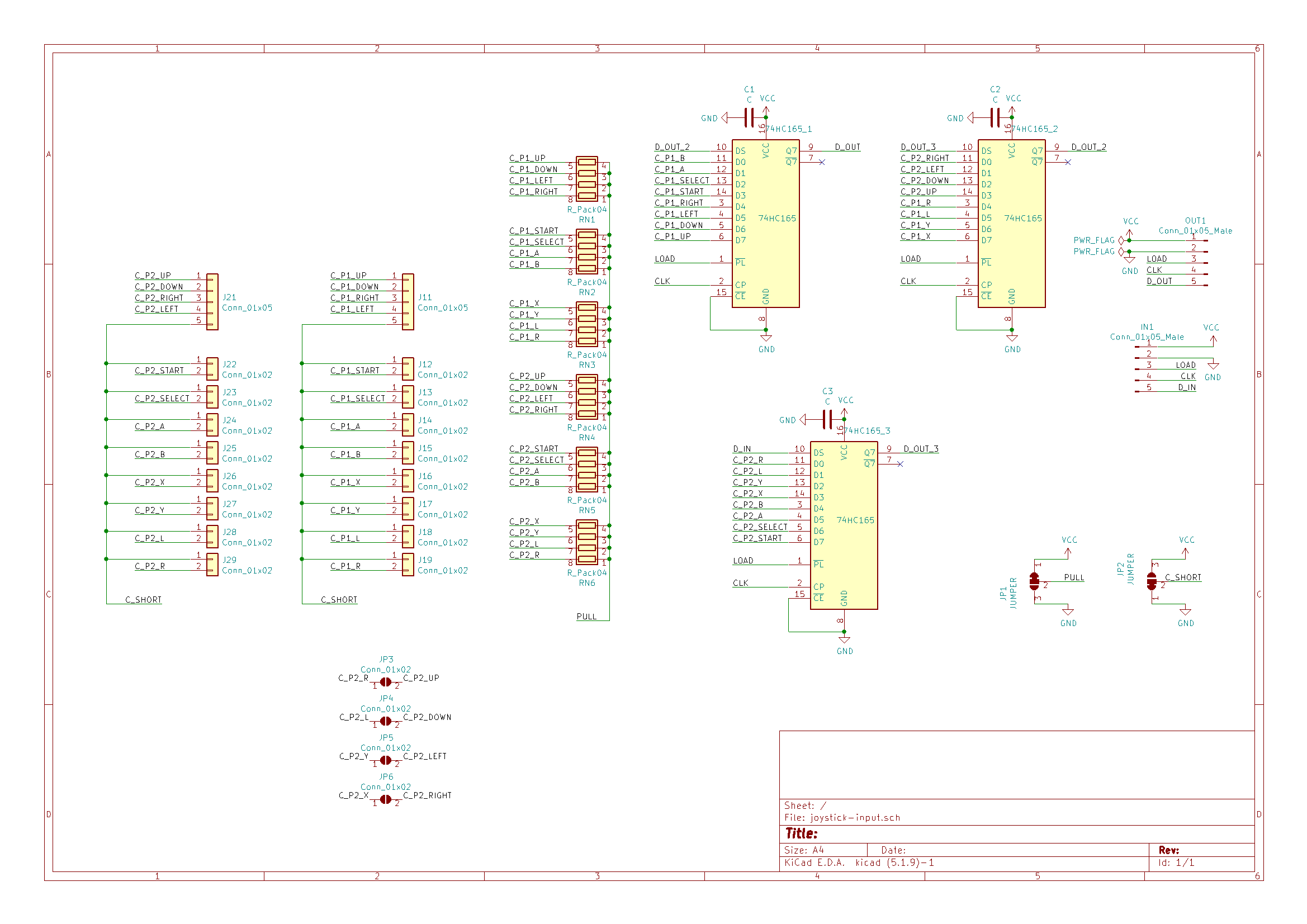

Joystick Input (JST Ver), from the project README
From the project README

Joystick Input (JST Ver) bill of materials (BOM)

38 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
Conn_01x05
J11, J21
16
Conn_01x02
J12, J13, J14, J15, J16, J17, J18, J19 +8
3
74HC165
74HC165_1, 74HC165_2, 74HC165_3
2
Conn_01x05_Male
IN1, OUT1
2
JUMPER
JP1, JP2
4
Conn_01x02
JP3, JP4, JP5, JP6
3
100NF
100nF
C1, C2, C3
6
10K
RN1, RN2, RN3, RN4, RN5, RN6

Joystick Input (JST Ver) design files

The KiCad project lives in the amos42/pcb_joystick_input repository on GitHub; these links point at the commit this page was built from.

Joystick Input (JST Ver): common questions

How big is the Joystick Input (JST Ver) PCB?

The Joystick Input (JST Ver) measures 71.4 × 38.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Joystick Input (JST Ver)?

38 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Joystick Input (JST Ver) design files?

From the amos42/pcb_joystick_input repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Joystick Input (JST Ver) design in my own project?

The repository has no license, so all rights stay with amos42. Use it as a reference, and ask the author before reusing the design.
