Joystick Input Board (2P)
About the Joystick Input Board (2P)
Joystick Input Board (2P) is an open source PCB design by amos42, published on GitHub. It is a 2-layer board measuring 53.3 × 39.9 mm, with 17 components from 10 distinct parts.
By type, the board carries 4 capacitors, 4 resistors and 2 connectors.
From the project

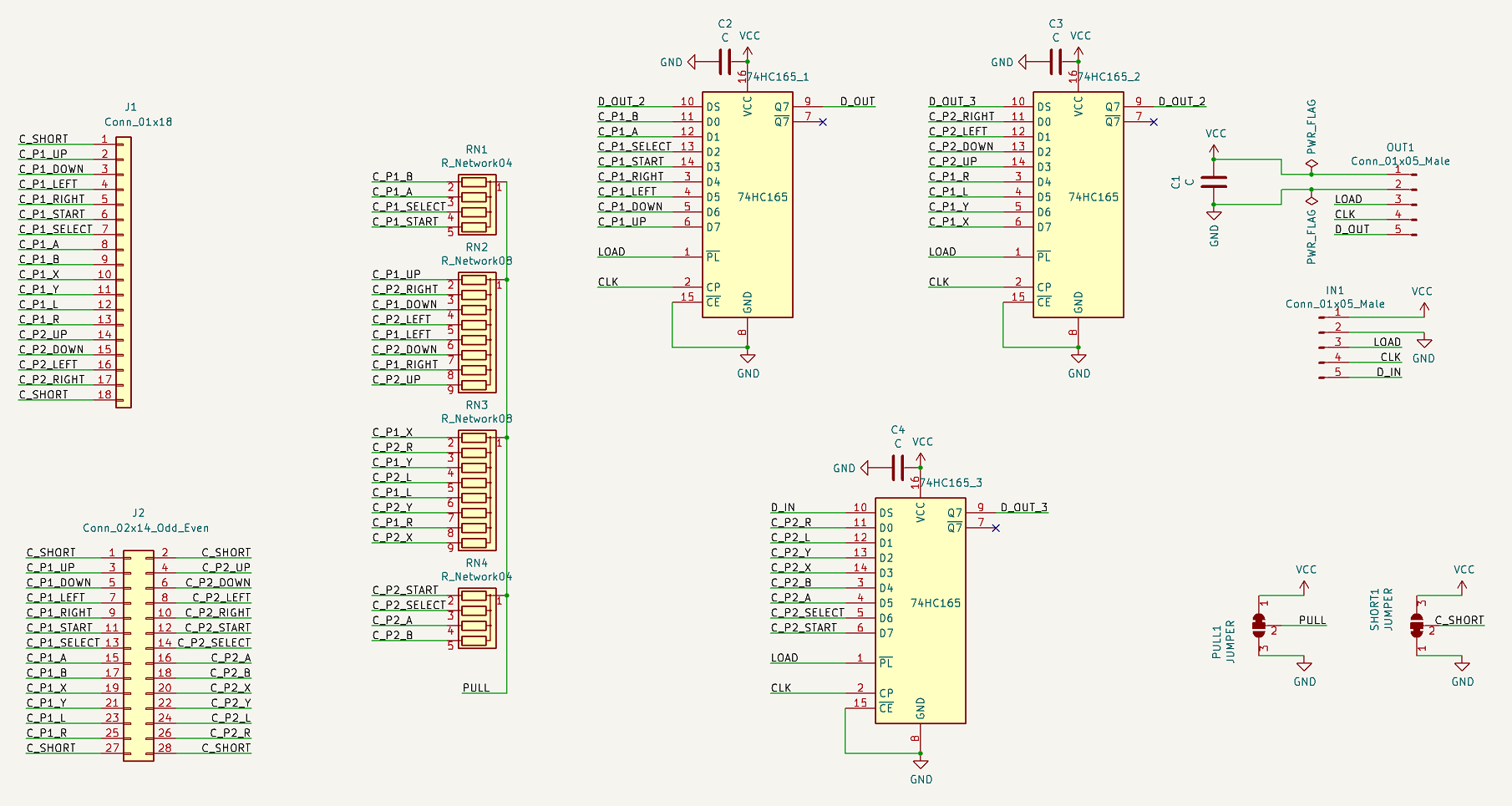

Joytsick Input Board for Raspberry Pie (GPIO, 74HC165)
Joystick Input Board (2P) bill of materials (BOM)
17 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x18 | PinHeader_1x18_P2.54mm_Vertical | J1 |
| 1 | Conn_02x14_Odd_Even | PinHeader_2x14_P2.54mm_Vertical | J2 |
| 3 | 74HC165 | DIP-16_W7.62mm | 74HC165_1, 74HC165_2, 74HC165_3 |
| 2 | Conn_01x05_Male | PinHeader_1x05_P2.54mm_Vertical | IN1, OUT1 |
| 2 | JUMPER | SolderJumper-3_P1.3mm_Bridged12_Pad1.0x1.5mm_NumberLabels | PULL1, SHORT1 |
| 1 | 100NF 22nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1 |
| 2 | 100NF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2, C3 |
| 1 | 22NF 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4 |
| 2 | 10K | R_Array_SIP5 | RN1, RN4 |
| 2 | 10K | R_Array_SIP9 | RN2, RN3 |
Joystick Input Board (2P) design files
The KiCad project lives in the amos42/pcb_joystick_input repository on GitHub; these links point at the commit this page was built from.
Joystick Input Board (2P): common questions
How big is the Joystick Input Board (2P)?
The Joystick Input Board (2P) measures 53.3 × 39.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Joystick Input Board (2P)?
17 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Joystick Input Board (2P) design files?
From the amos42/pcb_joystick_input repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Joystick Input Board (2P) design in my own project?
The repository has no license, so all rights stay with amos42. Use it as a reference, and ask the author before reusing the design.
