Raspberry Pie GPIO Input Module (1P Part)
About the Raspberry Pie GPIO Input Module (1P Part)
Raspberry Pie GPIO Input Module (1P Part) is an open source PCB design by amos42, published on GitHub. It is a 2-layer board measuring 11.7 × 23.2 mm, with 3 components from 3 distinct parts.
From the project
Joytsick Input Board for Raspberry Pie (GPIO, 74HC165)
기본적으로는 1P를 기준으로 했으며, 2P 용으로는 GPIO를 모두 소진한다는 문제 때문에 2P는 optional 하게 추가 지원하도록 했다.

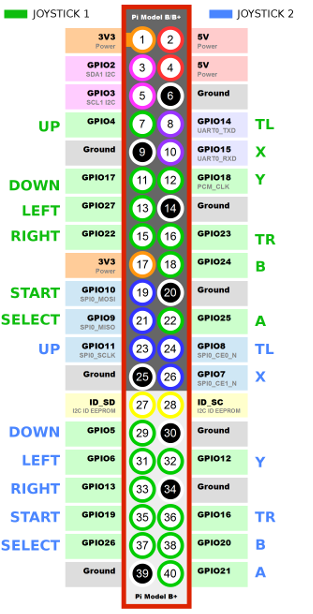

1P의 경우, HK를 GPIO11로 사용하게 했는데, 이를 원활히 사용하려면 am_joyin 드라이버를 쓰면 된다.
R - 1-2 끊고 2-3 쇼트시, J3의 Right 핀이 GND로 쇼트 SL - 1-2 끊고 2-3 쇼트시, J3의 Select 핀이 GND로 쇼트 HK - 1-2 끊고 2-3 쇼트시, J3의 HotKey 핀이 GND로 쇼트
Raspberry Pie GPIO Input Module (1P Part) bill of materials (BOM)
3 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_02x09_Odd_Even | PinSocket_2x09_P2.54mm_Vertical | J1 |
| 1 | Conn_01x14 | conn_ex_1x14_P1.25mm_Vertical_Right_Labeled | J2 |
| 1 | Conn_01x14 | conn_ex_1x14_P1.25mm_Vertical_Left_Labeled | J3 |
Raspberry Pie GPIO Input Module (1P Part) design files
The KiCad project lives in the amos42/pcb_joystick_input repository on GitHub; these links point at the commit this page was built from.
Raspberry Pie GPIO Input Module (1P Part): common questions
How big is the Raspberry Pie GPIO Input Module (1P Part)?
The Raspberry Pie GPIO Input Module (1P Part) measures 11.7 × 23.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Raspberry Pie GPIO Input Module (1P Part)?
3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Raspberry Pie GPIO Input Module (1P Part) design files?
From the amos42/pcb_joystick_input repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Raspberry Pie GPIO Input Module (1P Part) design in my own project?
The repository has no license, so all rights stay with amos42. Use it as a reference, and ask the author before reusing the design.
