Joystick Input Board

amos42·pcb_joystick_input·joystick_74hc165_input_1p/joystick_74hc165_input_1p.kicad_pcb

Joystick Input Board layout, top view — open source board by amos42
Simulate this board

About the Joystick Input Board

Joystick Input Board is an open source PCB design by amos42, published on GitHub. It is a 2-layer board measuring 53.3 × 29.2 mm, with 11 components from 6 distinct parts.

By type, the board carries 2 capacitors, 2 resistors and 1 connector.

From the project

Joytsick Input Board for Raspberry Pie (GPIO, 74HC165)

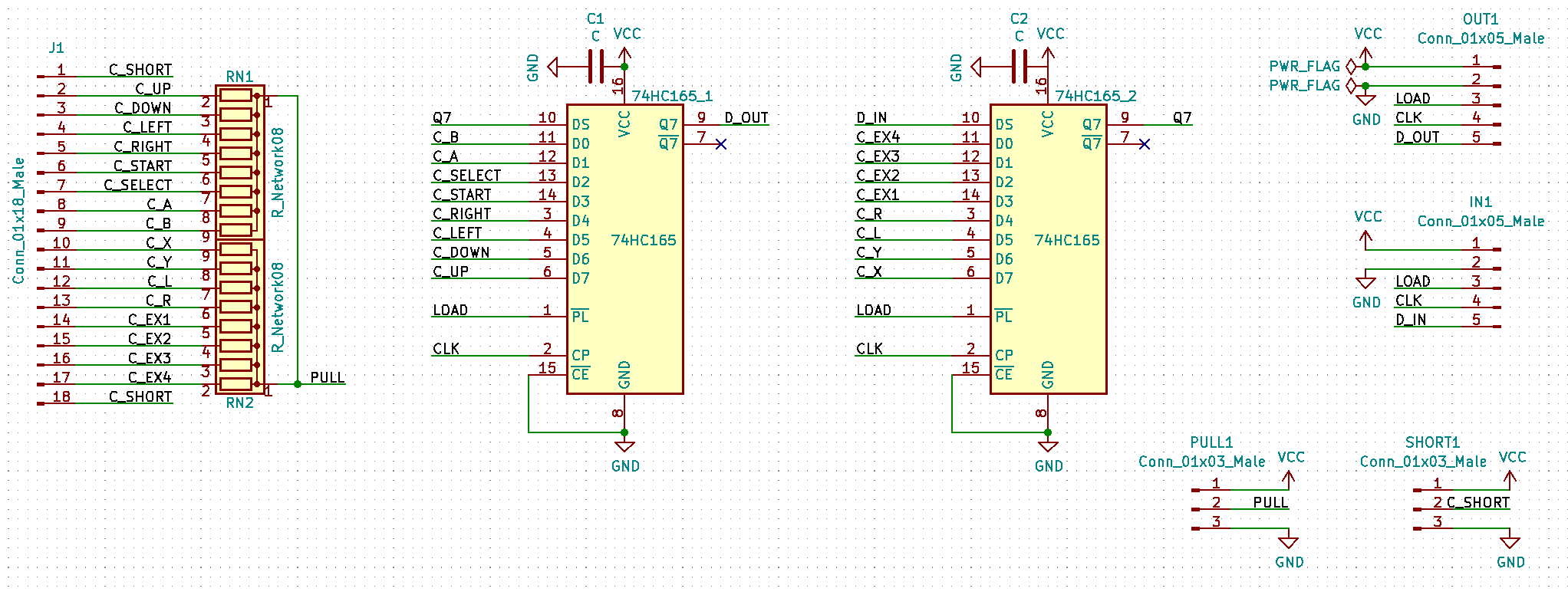

Joystick Input Board, from the project README
From the project README

Joystick Input Board bill of materials (BOM)

11 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Conn_01x18_Male
J1
2
74HC165
74HC165_1, 74HC165_2
2
Conn_01x05_Male
IN1, OUT1
2
Conn_01x03_Male
PULL1, SHORT1
2
100NF
100nF
C1, C2
2
10K
RN1, RN2

Joystick Input Board design files

The KiCad project lives in the amos42/pcb_joystick_input repository on GitHub; these links point at the commit this page was built from.

Joystick Input Board: common questions

How big is the Joystick Input Board?

The Joystick Input Board measures 53.3 × 29.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Joystick Input Board?

11 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Joystick Input Board design files?

From the amos42/pcb_joystick_input repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Joystick Input Board design in my own project?

The repository has no license, so all rights stay with amos42. Use it as a reference, and ask the author before reusing the design.
