AnandMacroX PCB layout, top view — open source RP2040/RP2350 board by anandsathy

About the AnandMacroX PCB

AnandMacroX is an open source RP2040/RP2350 PCB design by anandsathy, published on GitHub. It is a 2-layer board measuring 96 × 105.5 mm, with 36 components from 6 distinct parts.

Its main chip is the Raspberry_Pi_Pico, from the RP2040/RP2350 family. By type, the board carries 16 switches, 16 diodes, 2 resistors, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

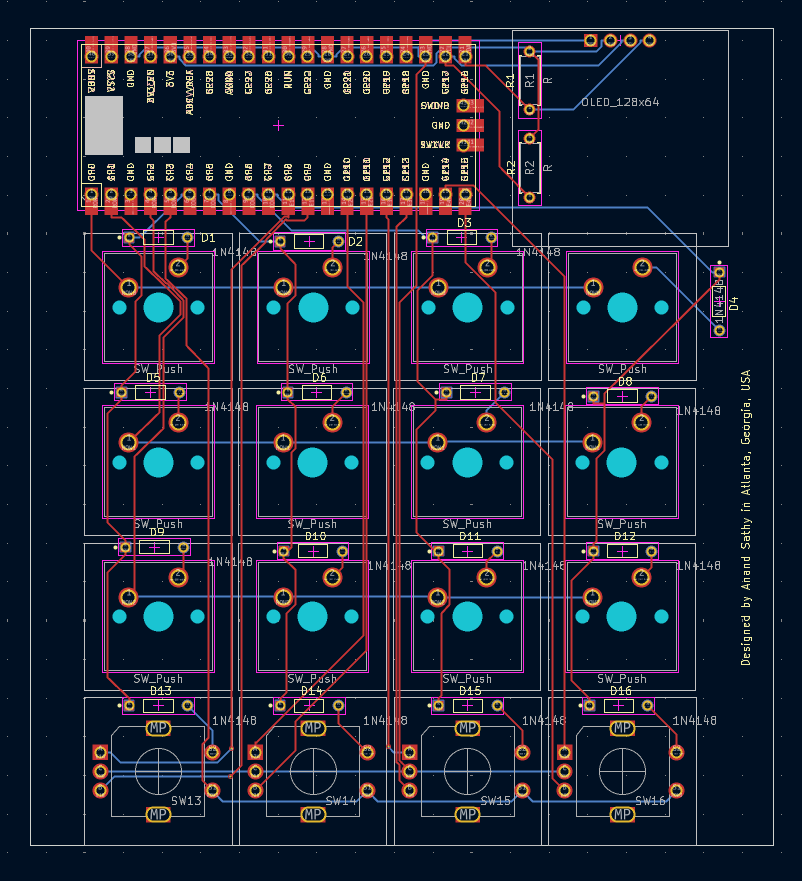

AnandMacroX, from the project README
From the project README

Main components on the AnandMacroX

Raspberry_Pi_Pico

AnandMacroX bill of materials (BOM)

36 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Raspberry_Pi_Pico
U1
1
OLED_128X64
OLED_128x64
J1
12
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +4
4
RotaryEncoder_Switch
SW13, SW14, SW15, SW16
16
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +8
2
R
R1, R2

AnandMacroX design files

The KiCad project lives in the anandsathy/AnandMacroX repository on GitHub; these links point at the commit this page was built from.

AnandMacroX: common questions

What microcontroller does the AnandMacroX use?

The AnandMacroX is built around the Raspberry_Pi_Pico, from the RP2040/RP2350 family.

How big is the AnandMacroX PCB?

The AnandMacroX measures 96 × 105.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AnandMacroX?

36 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the AnandMacroX design files?

From the anandsathy/AnandMacroX repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the AnandMacroX design in my own project?

The repository has no license, so all rights stay with anandsathy. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the AnandMacroX without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
