Esp32-midi processor PCB layout, top view — open source ESP32 board by andymann

About the Esp32-midi processor PCB

Esp32-midi processor is an open source ESP32 PCB design by andymann, published on GitHub. It is a 2-layer board measuring 108 × 97.4 mm, with 50 components from 27 distinct parts.

Its main chip is the ESP32 right, from the ESP32 family. Other key parts include the 6N138 and LM7805_TO220. By type, the board carries 16 resistors, 12 connectors, 7 diodes, 7 capacitors, 5 switches and 3 ICs.

It belongs with the audio designs in this gallery.

From the project

esp32-based MIDI router, merger, realtime-manipulator

esp32-based multitool. Routing, merging, realtime-manipulation of MIDI-data. This repo contains code, kicad-files and a BOM for (nearly) one-click order at pcbway.

Find more details on the project, instructions on how to order your own pcbs and more at https://andyland.info/wordpress/esp32-midi-processor/

If you directly want to order your set of PCBs for this project feel free to

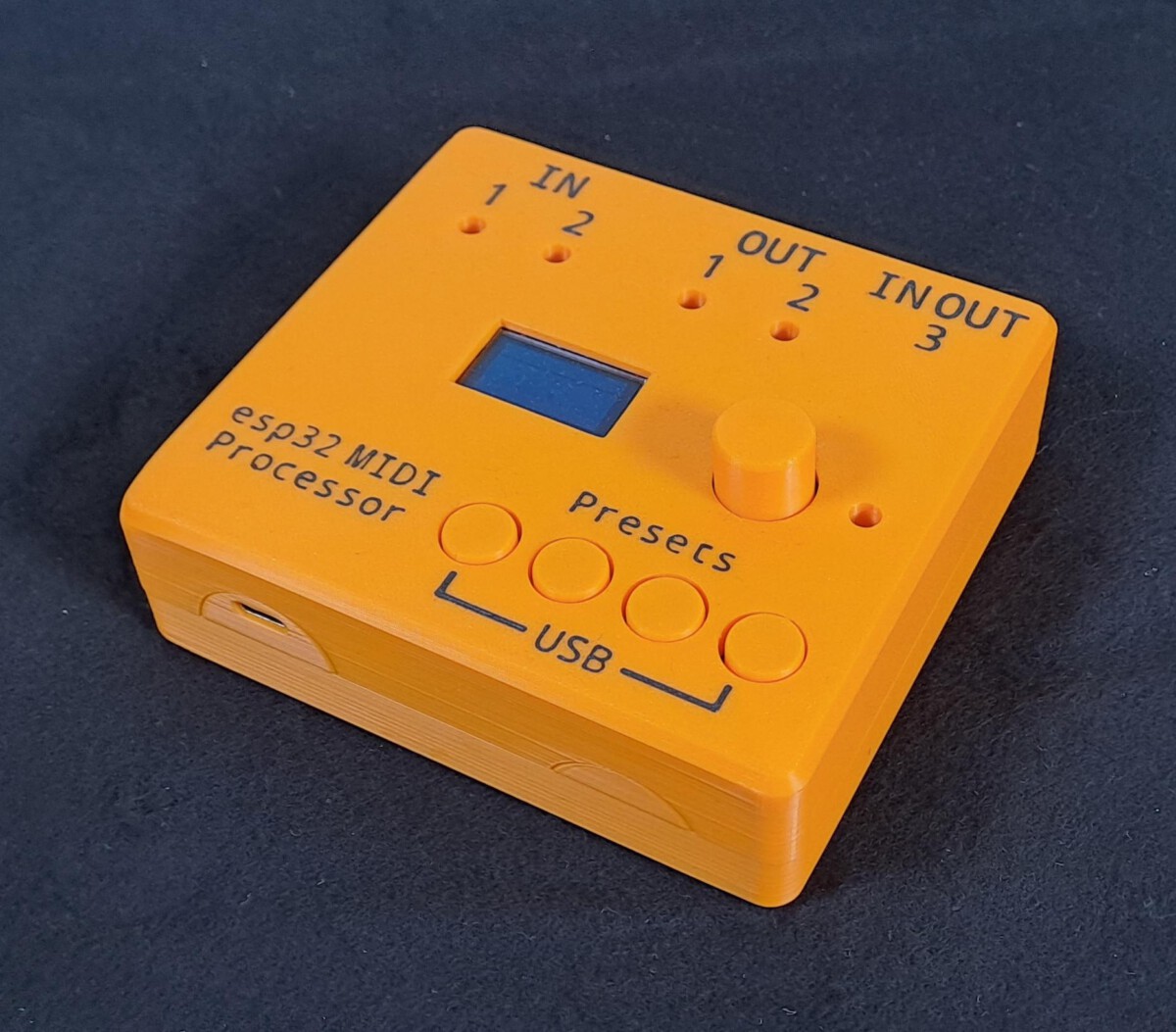

Esp32-midi processor, from the project README
From the project README

Main components on the Esp32-midi processor

6N138LM7805_TO220

Esp32-midi processor bill of materials (BOM)

50 components, 27 distinct parts.

QtyPartRefs
2
6N138
U1, U2
1
LM7805_TO220
U3
1
Midi IN 1
J1
1
Midi IN 2
J2
1
Midi OUT 1
J3
1
Midi OUT 2
J4
1
ESP32 right
J5
1
ESP32 left
J6
1
Input Voltage
J7
1
USB Shield outer right
J8
1
USB Shield inner right
J9
1
USB Shield left
J10
1
Display
J12
1
Spare
J13
4
SW_Push
SW1, SW2, SW3, SW4
1
RotaryEncoder_Switch
SW5
2
1N4148WT
D1, D2
5
WS2812B
D3, D4, D5, D6, D7
2
100nF
C1, C2
5
0.1µ
C3, C4, C5, C6, C7
Show 7 more
QtyPartRefs
2
220
R1, R4
2
470
R2, R5
2
4k7
R3, R6
2
33
R7, R9
2
10
R8, R10
1
330
R11
5
10k
R12, R13, R14, R15, R16

Esp32-midi processor design files

The KiCad project lives in the andymann/esp32-midi-processor repository on GitHub; these links point at the commit this page was built from.

Esp32-midi processor: common questions

What microcontroller does the Esp32-midi processor use?

The Esp32-midi processor is built around the ESP32 right, from the ESP32 family.

How big is the Esp32-midi processor PCB?

The Esp32-midi processor measures 108 × 97.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-midi processor?

50 components, from 27 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp32-midi processor design files?

From the andymann/esp32-midi-processor repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Esp32-midi processor design in my own project?

The repository has no license, so all rights stay with andymann. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esp32-midi processor without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
