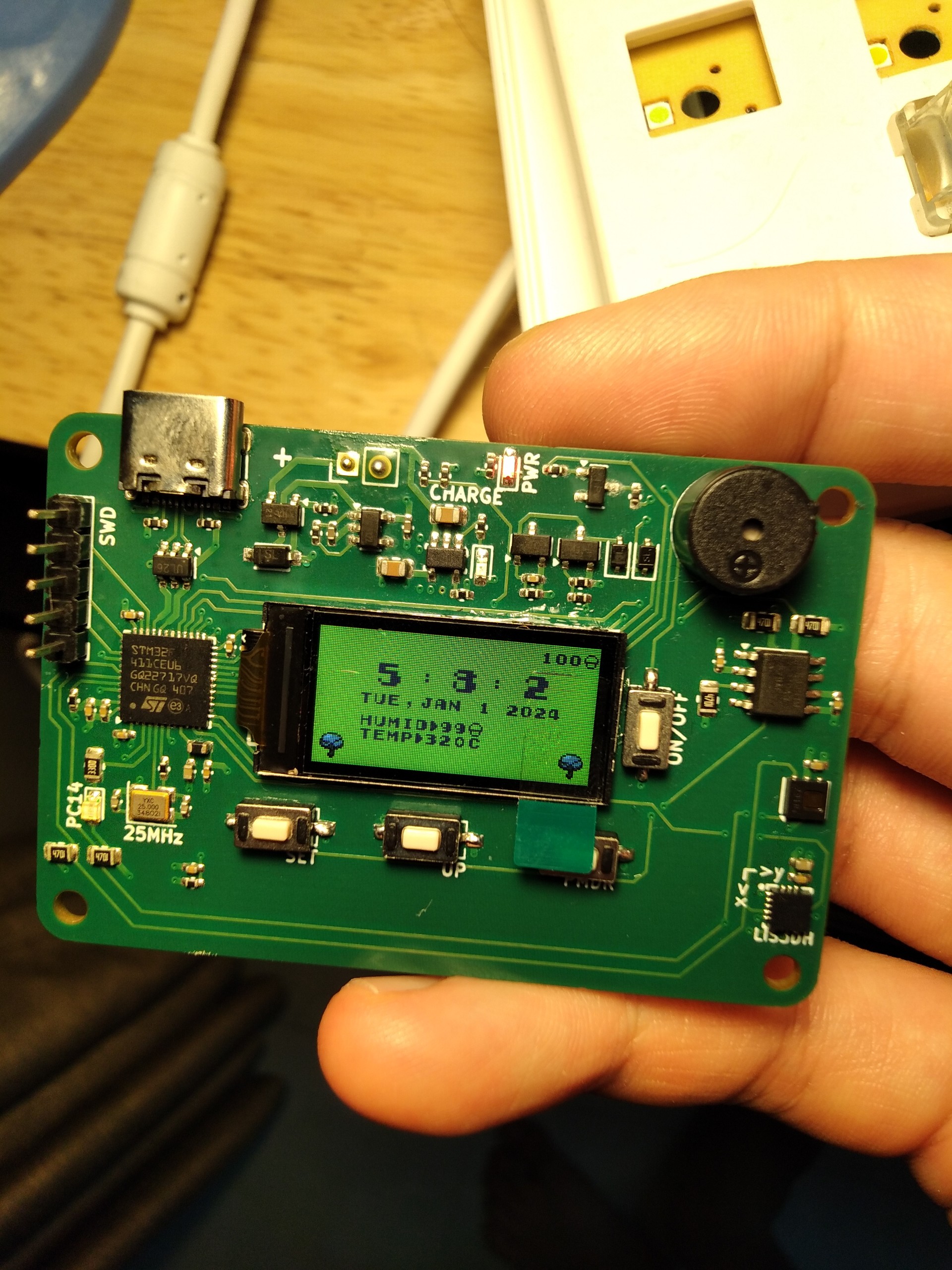

About the Dalws PCB
Dalws is an open source STM32 PCB design by anhldptit2610, published on GitHub under the MIT license. It is a 4-layer board measuring 64 × 43 mm, with 72 components from 40 distinct parts.
Its main chip is the C60420, from the STM32 family. Other key parts include the C3021085, C107410, C15134, C2827654 and MCP73831T-2ACI/OT. By type, the board carries 23 resistors, 21 capacitors, 8 ICs, 6 diodes, 4 transistors and 4 switches.
It belongs with the displays & leds and power & battery designs in this gallery.
From the project
This project is my attempt to learn about microcontroller and PCB design. Now I realize that making a full, complete electronic project is super hard. I made all the steps in this project, from designing the PCB to program the firmware. To be honest, the PCB design process is har
This project is my attempt to learn about microcontroller and PCB design. Now I realize that making a full, complete electronic project is super hard. I made all the steps in this project, from designing the PCB to program the firmware. To be honest, the PCB design process is harder. Choose components, read the datasheets and lots of schematics, make a design, review and fix errors, quite a lot of work. But it's worth all the pennies and efforts I spent for this project.

Main components on the Dalws
Dalws bill of materials (BOM)
72 components, 40 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C3021085 AP2112K-3.3 | SOT-23-5 | U1 |
| 1 | C107410 DS3231MZ+TRL | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | C15134 LIS3DH | LIS3DHTR | U3 |
| 1 | C2827654 USBLC6-2SC6 | SOT-23-6 | U4 |
| 1 | MCP73831T-2ACI/OT Microchip Technology | SOT-753 | U5 |
| 1 | C2864159 HDC1080 | Texas_PWSON-N6 | U6 |
| 1 | ~ | OLED-SMD_ST7735S | U7 |
| 1 | C60420 STM32F411CEUx | QFN-48-1EP_7x7mm_P0.5mm_EP5.6x5.6mm | U8 |
| 2 | C15127 AO3401A | SOT-23 | Q1, Q2 |
| 1 | C20917 AO3400A | SOT-23 | Q3 |
| 1 | C8512 MMBT2222A 1P | SOT-23 | Q5 |
| 1 | C9006 25MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | C2988369 USBC | USB_C_Receptacle_G-Switch_GT-USB-7010ASV | J1 |
| 1 | SWD | PinHeader_1x05_P2.54mm_Vertical | J3 |
| 1 | BATT | PinHeader_1x02_P2.54mm_Vertical | BT2 |
| 1 | Buzzer | TMB09A05 | BZ1 |
| 4 | SW_Push | GT-TC060A-H025-L1 | SW1, SW2, SW3, SW5 |
| 2 | C2286 KT-0603R | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1, D4 |
| 2 | C191023 1N5819WS | D_SOD-323 | D2, D6 |
| 1 | C8598 B5819W | B5819W | D3 |
Show 20 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C2297 KT-0805G | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D5 |
| 1 | BLM18AG601SN1D Murata Electronics North America | 0603 | FB2 |
| 9 | C1525 100n | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C1, C3, C5, C6, C7, C8, C12, C18 +1 |
| 4 | C1525 0.1u | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C2, C13, C16, C17 |
| 2 | C1548 15p | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C4, C10 |
| 2 | C15525 10u | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C9, C11 |
| 2 | C52923 1u | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C14, C15 |
| 2 | C1779 4.7u | C_0805_2012Metric | C19, C20 |
| 5 | C25741 100k | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R1, R2, R4, R7, R13 |
| 1 | C26083 1M | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R3 |
| 2 | C25905 5k1 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R5, R6 |
| 1 | C17168 0 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R8 |
| 2 | C25744 10k | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R9, R15 |
| 5 | C17673 4.7k | R_0805_2012Metric | R10, R11, R18, R19, R20 |
| 2 | C11702 1k | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R12, R17 |
| 1 | C25092 22 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R14 |
| 1 | C25104 330 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R16 |
| 1 | C4109 2k | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R21 |
| 1 | C25117 470 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R22 |
| 1 | C17630 330 | R_0805_2012Metric | R24 |
Dalws design files
The KiCad project lives in the anhldptit2610/dalws repository on GitHub; these links point at the commit this page was built from.
- Layouthardware/dalws/dalws.kicad_pcb
- Schematichardware/dalws/dalws.kicad_sch
- BOMdocs/bom.xls
Dalws: common questions
What microcontroller does the Dalws use?
The Dalws is built around the C60420, from the STM32 family.
How big is the Dalws PCB?
The Dalws measures 64 × 43 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the Dalws?
72 components, from 40 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Dalws design files?
From the anhldptit2610/dalws repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Dalws design in my own project?
Yes, under the terms of its MIT license, which anhldptit2610 chose for the repository.
Can I test firmware for the Dalws without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
