Osm l bmc som
About the Osm l bmc som PCB
Osm l bmc som is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a board, with 41 components from 18 distinct parts.
Other key parts include the MIMX94398DVMMAA, SY75602BTWL-TR and HD3SS3202IRSVR. By type, the board carries 29 resistors, 6 capacitors, 4 ICs, 1 transistor and 1 crystal.
It belongs with the sensors designs in this gallery.
From the project

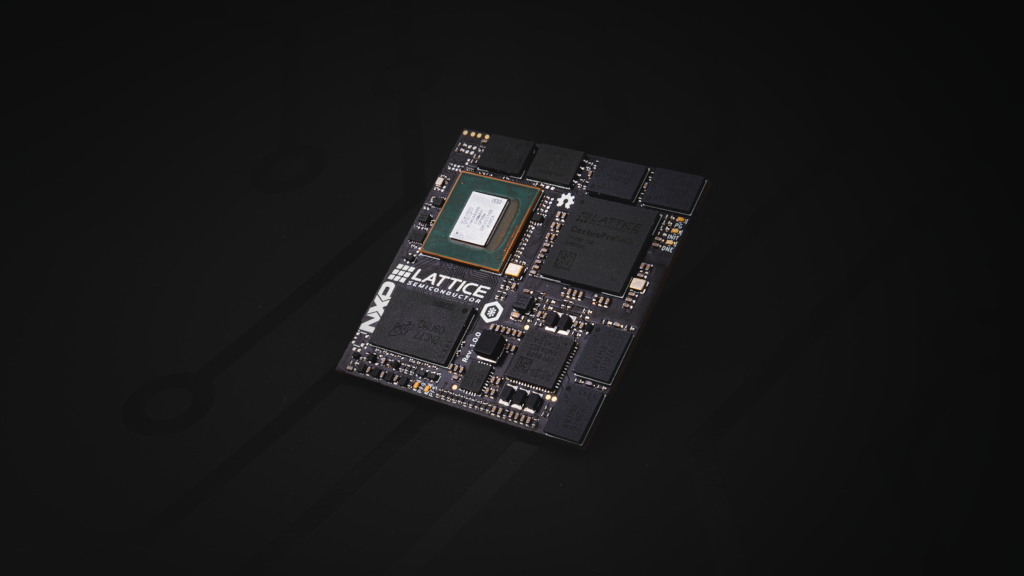

System on Module in OSM-L form factor
This project includes open hardware PCB design files for a System on Module (SoM) integrating Lattice CertusPro-NX FPGA and NXP i.MX943 Application Processor (AP), along with local storage, clocking and power management circuitry. The SoM has a small (45x45mm) mechanical outline and follows the OSM-L standard specified by the SGet group.
The PCB design files were prepared in KiCad 9.x
Main components on the Osm l bmc som
Osm l bmc som bill of materials (BOM)
41 components, 18 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MIMX94398DVMMAA NXP | BGA-841-548_15x15mm_Layout29x29_P0.5mm | U2 |
| 2 | SY75602BTWL-TR Microchip Technology | VDFN-8_1.6x1.4mm_P0.4mm | U4, U22 |
| 1 | HD3SS3202IRSVR Texas Instruments | UQFN-16-1.8x2.6mm_P0.4mm_Texas_RSV0016A | U6 |
| 1 | DTC014TEBTL DTC014T_SOT-416 ROHM Semiconductor | SOT-416 | Q5 |
| 1 | AK2LPHEF1-156.2500T Oscillator_156.25MHz_AK2LPHEF1 Abracon | Oscillator_SMD_Abracon_AK2LPHEF1_2.5x2x1mm | Y1 |
| 1 | GRM155R61H104KE14D C_100n_0402 Murata | C_0402_1005Metric | C1 |
| 3 | CC0201KRX6S5BB104 C_100n_0201 YAGEO | C_0201 | C2, C5, C6 |
| 2 | C0603X5R1E104K030BB C_100n_0201_25V TDK | C_0201 | C3, C4 |
| 2 | CRCW020110K0FNEDAT R_10k_0201 Vishay | R_0201 | R1, R30 |
| 3 | CRCW0201200RFNEDAT R_200R_0201 Vishay | R_0201 | R2, R13, R25 |
| 2 | CR0402-FX-5R10GLF R_5R1_0402 Bourns | R_0402_1005Metric | R3, R4 |
| 4 | TNPW020150R0DEED R_50R_0201 Vishay | R_0201 | R5, R7, R9, R10 |
| 2 | CR0402-FX-49R9GLF R_49R9_0402 Bourns | R_0402_1005Metric | R6, R8 |
| 1 | EXB-18V222JX R_4x2k2_0201_array Panasonic | R_Array_4x0201_Panasonic_EXB18V | R11 |
| 4 | CR0402-FX-1001GLF R_1k_0402 Bourns | R_0402_1005Metric | R14, R15, R20, R21 |
| 4 | ERJ2GE0R00X R_0R_0402 Panasonic | R_0402_1005Metric | R18, R19, R27, R28 |
| 4 | CR0201-FX-1001GLF R_1k_0201 Bourns | R_0201 | R22, R23, R24, R26 |
| 3 | CR0201-FX-0R00GLF R_0R_0201 Bourns | R_0201 | R33, R34, R35 |
Osm l bmc som design files
The KiCad project lives in the antmicro/osm-l-bmc-som repository on GitHub; these links point at the commit this page was built from.
- Schematicap.kicad_sch
Osm l bmc som: common questions
How many components are on the Osm l bmc som?
41 components, from 18 distinct parts. The full bill of materials is listed on this page.
Where can I download the Osm l bmc som design files?
From the antmicro/osm-l-bmc-som repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Osm l bmc som design in my own project?
Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
